GIGABYTE
GIGABYTE Z890I AORUS ULTRA
Model Z890I AORUS ULTRA Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Clear CMOS button
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
- Supported memory clock speed (max)
- 8800 MHz
- Maximum internal memory
- 256 GB
- Supported memory module capacities
- 1GB,2GB,4GB,8GB,12GB,16GB,24GB,32GB,40GB,48GB,64GB
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery capacity
- 220 mAh
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- WLAN controller model
- Intel Wi-Fi 7 BE202
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- FAN,Temperature,Voltage
- Component for
- PC
- Motherboard form factor
- Mini ITX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11 x64
Graphics
- DirectX version
- 12.0
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- Maximum internal memory supported by processor
- 256 GB
Internal I/O
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 2
- Total number of SATA connectors
- 2
- ATX Power connector (24-pin)
- Yes
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x16 slots
- 1
- Number of M.2 (M) slots
- 2
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 2
- RAID support
- Yes
- RAID levels
- 0,1,5,10

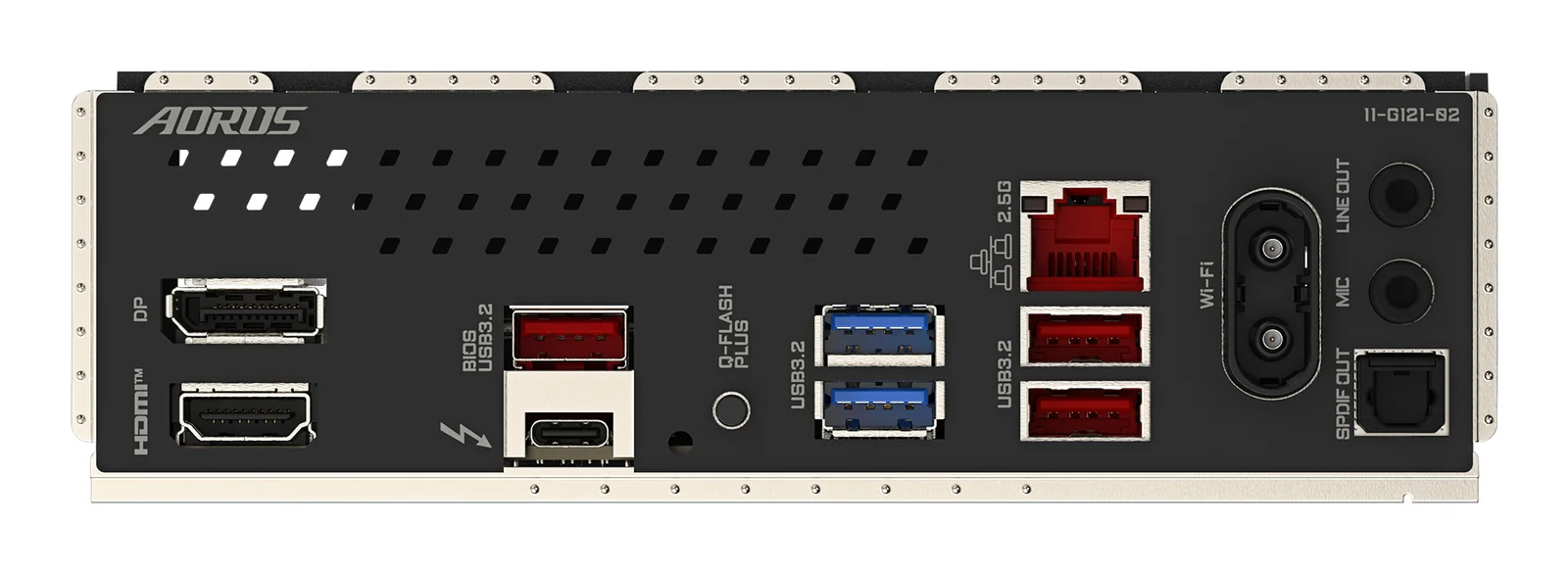

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- Thunderbolt ports quantity
- 1
