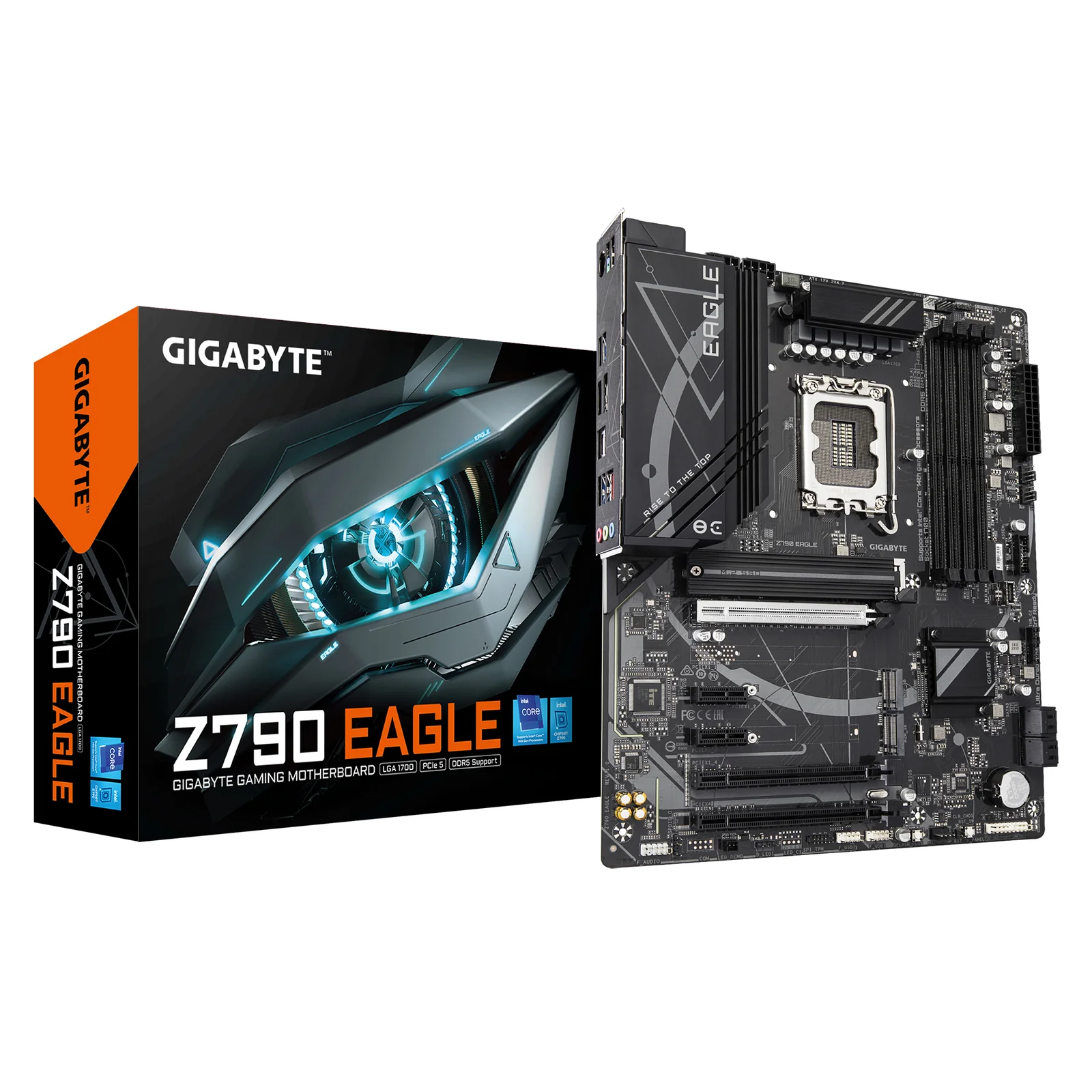

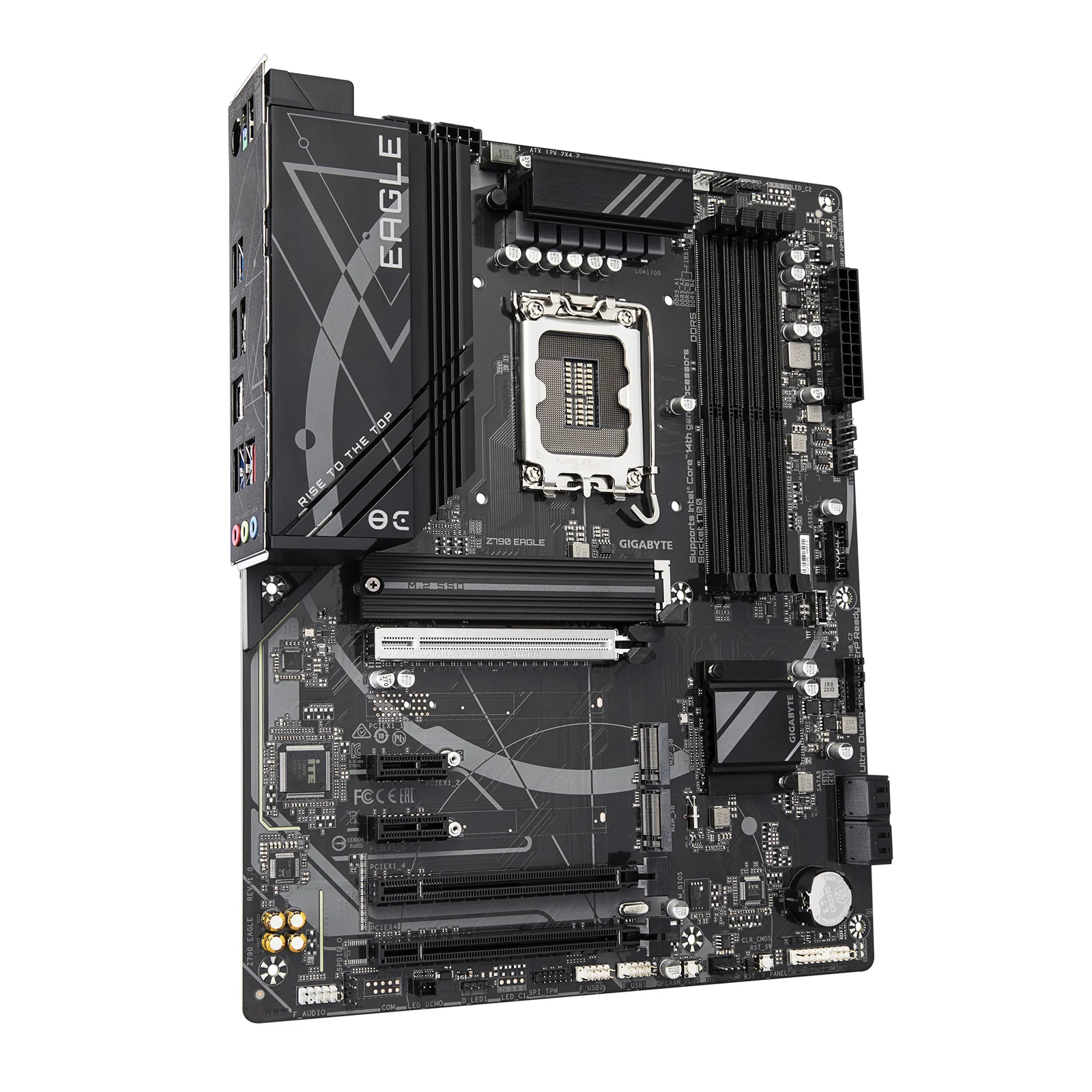

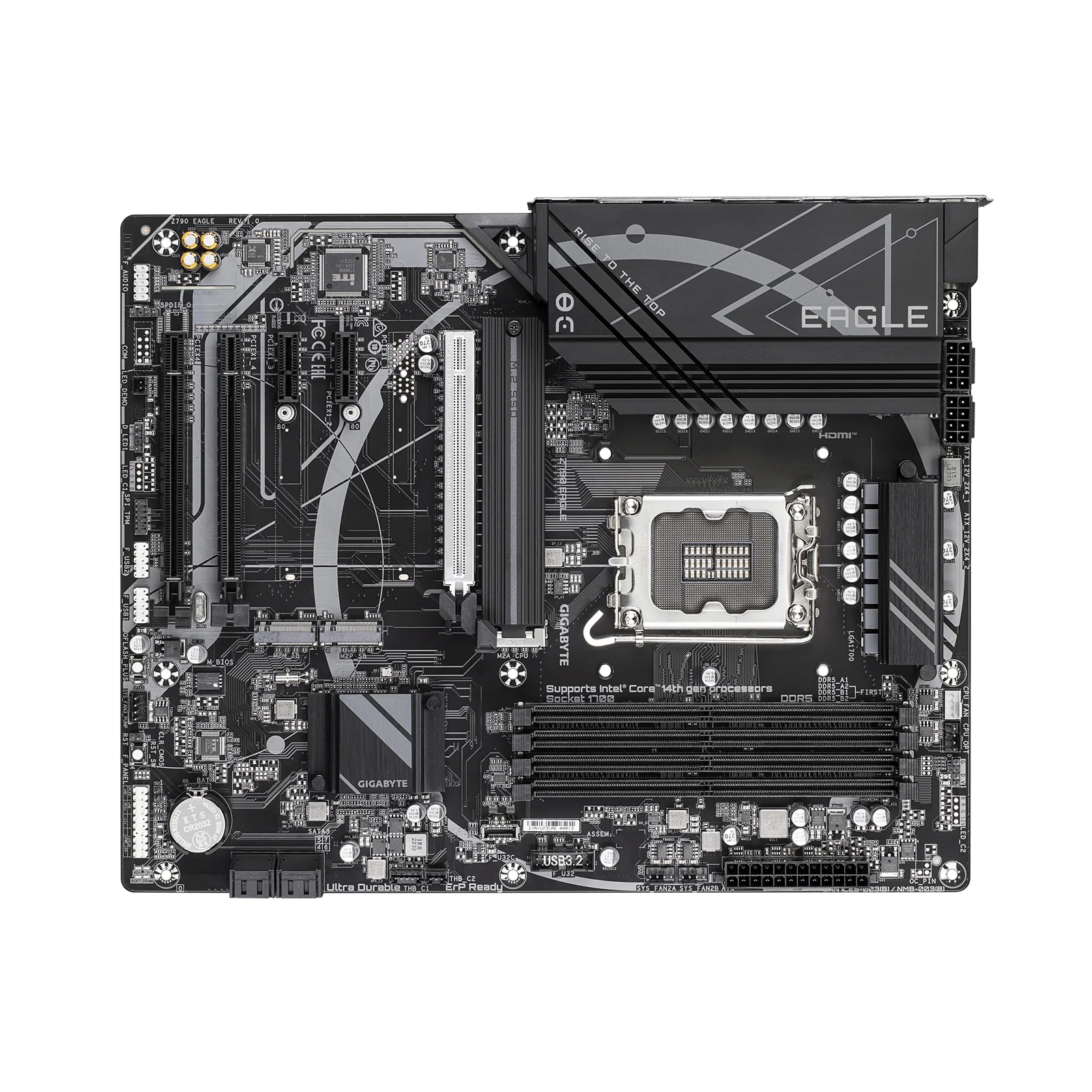

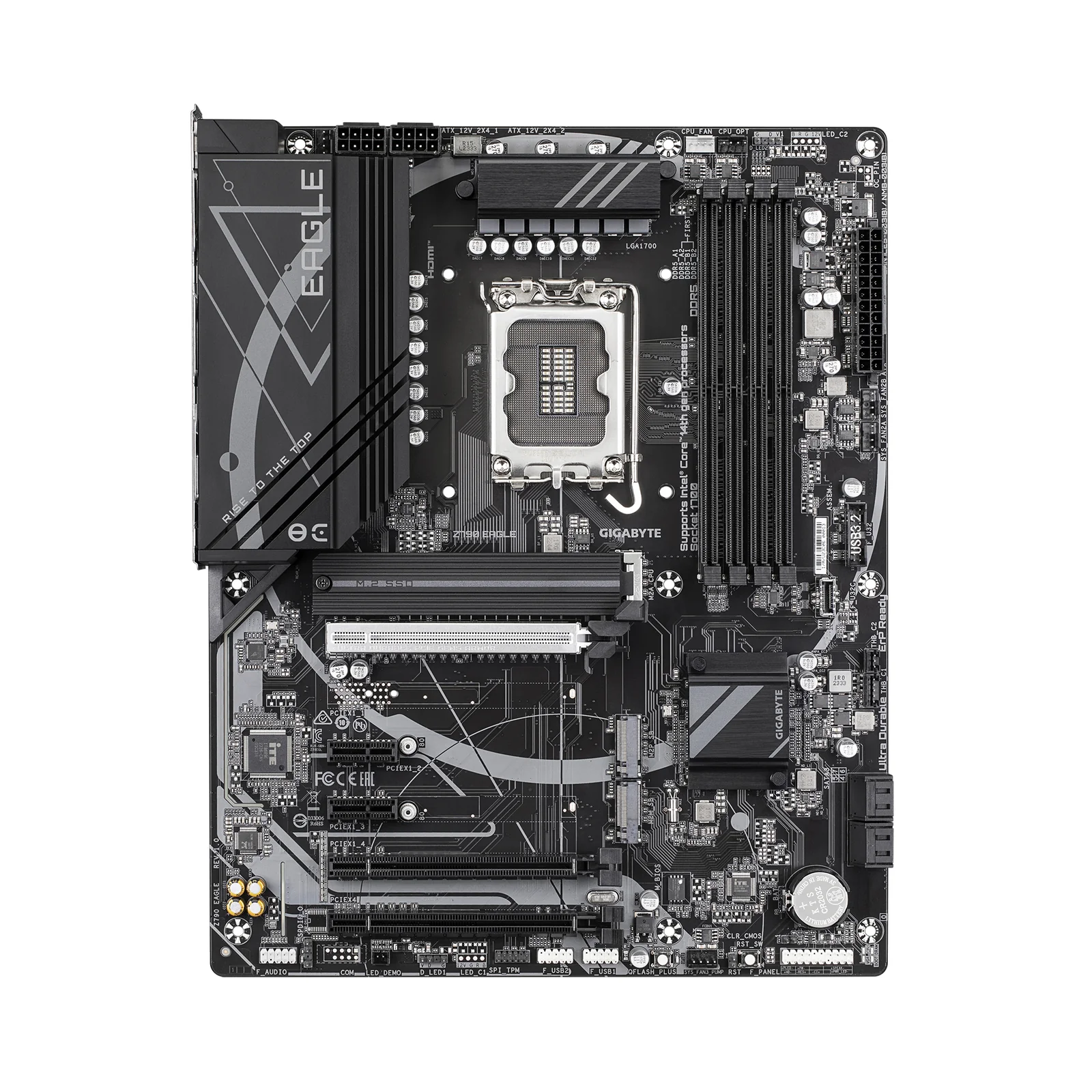

GIGABYTE Z790 EAGLE
Model Z790 EAGLE Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2,5GbE LAN, USB 3.2 Gen 2
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Yes
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & non-ECC
- Supported memory clock speeds
- 7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4400 MHz
- Supported memory clock speed (max)
- 7600 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 64 GB
Battery
- Battery weight
- 3 g
- Lithium weight per battery
- 0.07 g
- Number of battery cells
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Battery type
- CR2032
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Wi-Fi
- No
Features
- Motherboard chipset
- Intel Z790
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Black
- PC health monitoring
- FAN,Temperature,Voltage,Water cooling
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64,Windows 11 x64
Graphics
- Parallel processing technology support
- Not supported
- Maximum resolution
- 4096 x 2304 pixels
- HDCP
- Yes
- DirectX version
- 12.0
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Core i3 12th Gen,Intel Core i3 13th Gen,Intel Core i3 14th Gen,Intel Core i5 12th Gen,Intel Core i5 13th Gen,Intel Core i5 14th Gen,Intel Core i7 12th Gen,Intel Core i7 13th Gen,Intel Core i7 14th Gen,Intel Core i9 12th Gen,Intel Core i9 13th Gen,Intel Core i9 14th Gen,Intel Pentium
- Supported processor sockets
- LGA 1700
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 4
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Yes
- Thunderbolt headers
- 2
- Number of water pump connectors
- 2
Logistics data
- Country of origin
- China
- Products per shipping (inner) case
- 1 pc(s)
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 3
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0,1,5,10

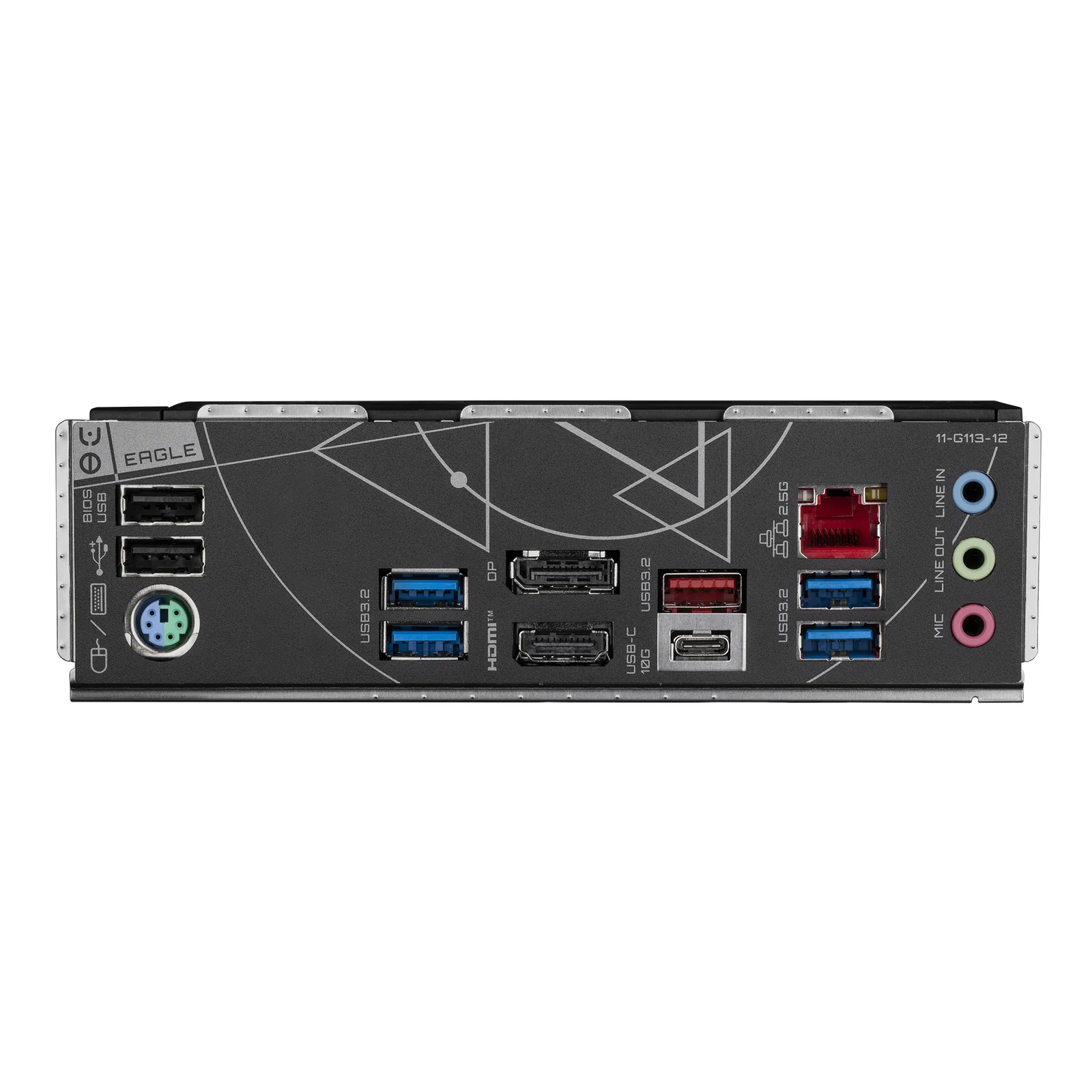

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.2
- Headphone outputs
- 1
- Line-in
- Yes
