GIGABYTE

Coming soon

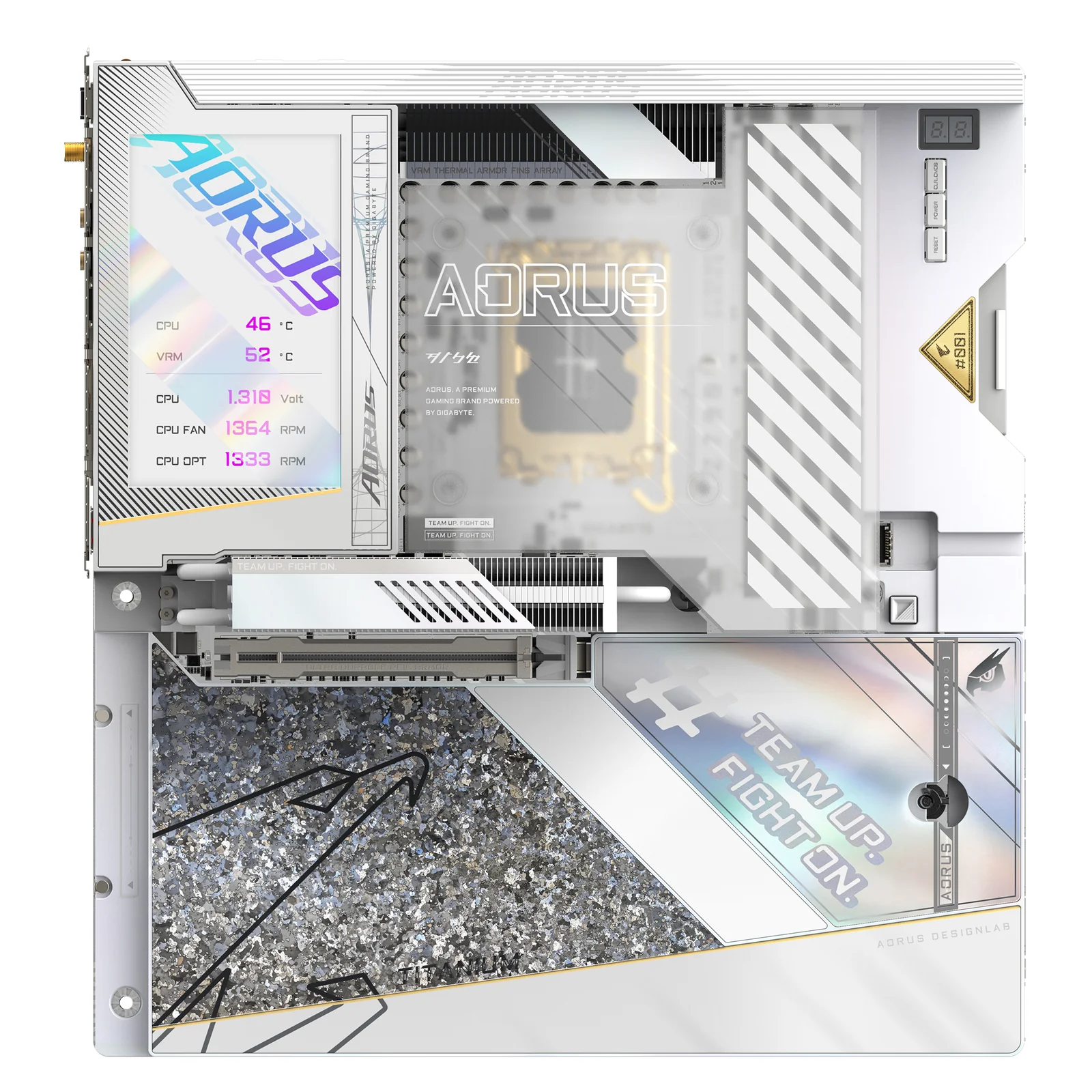

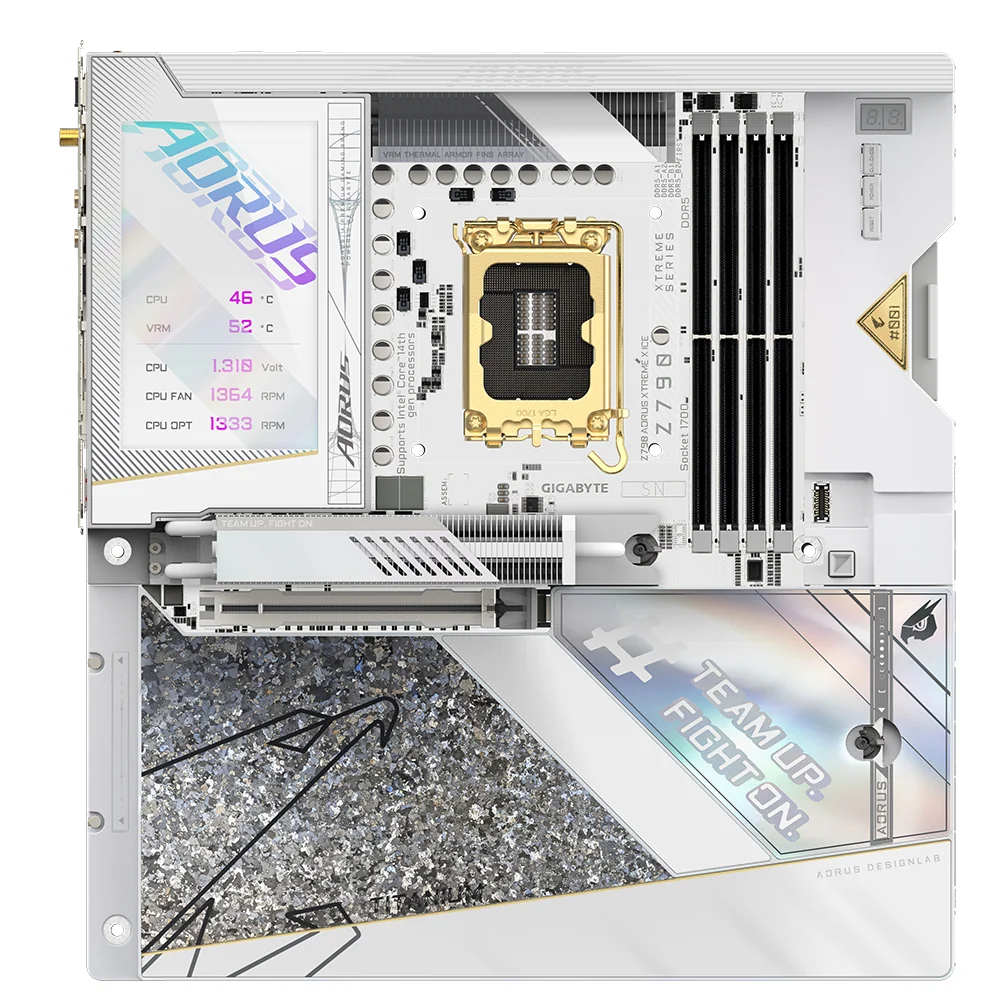

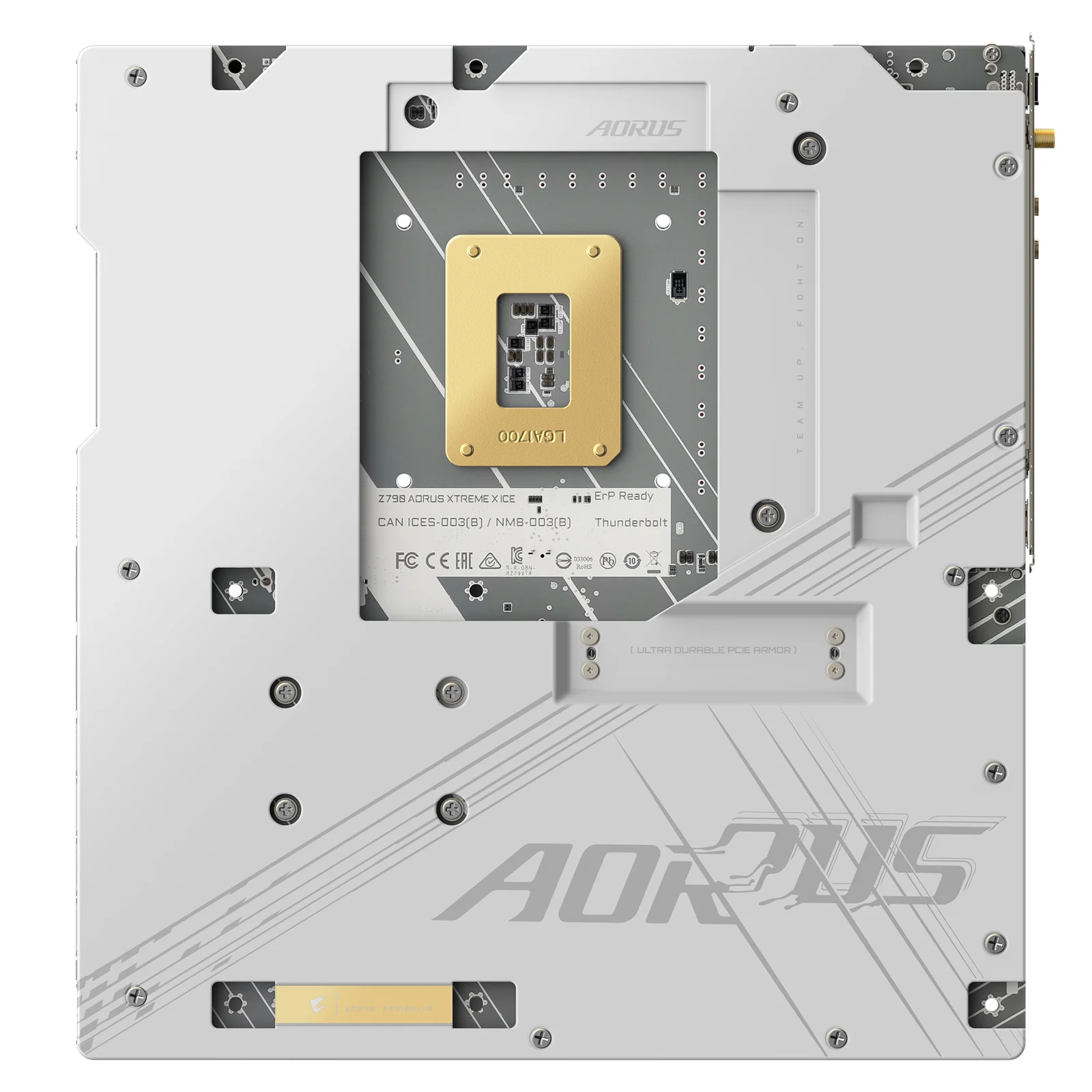

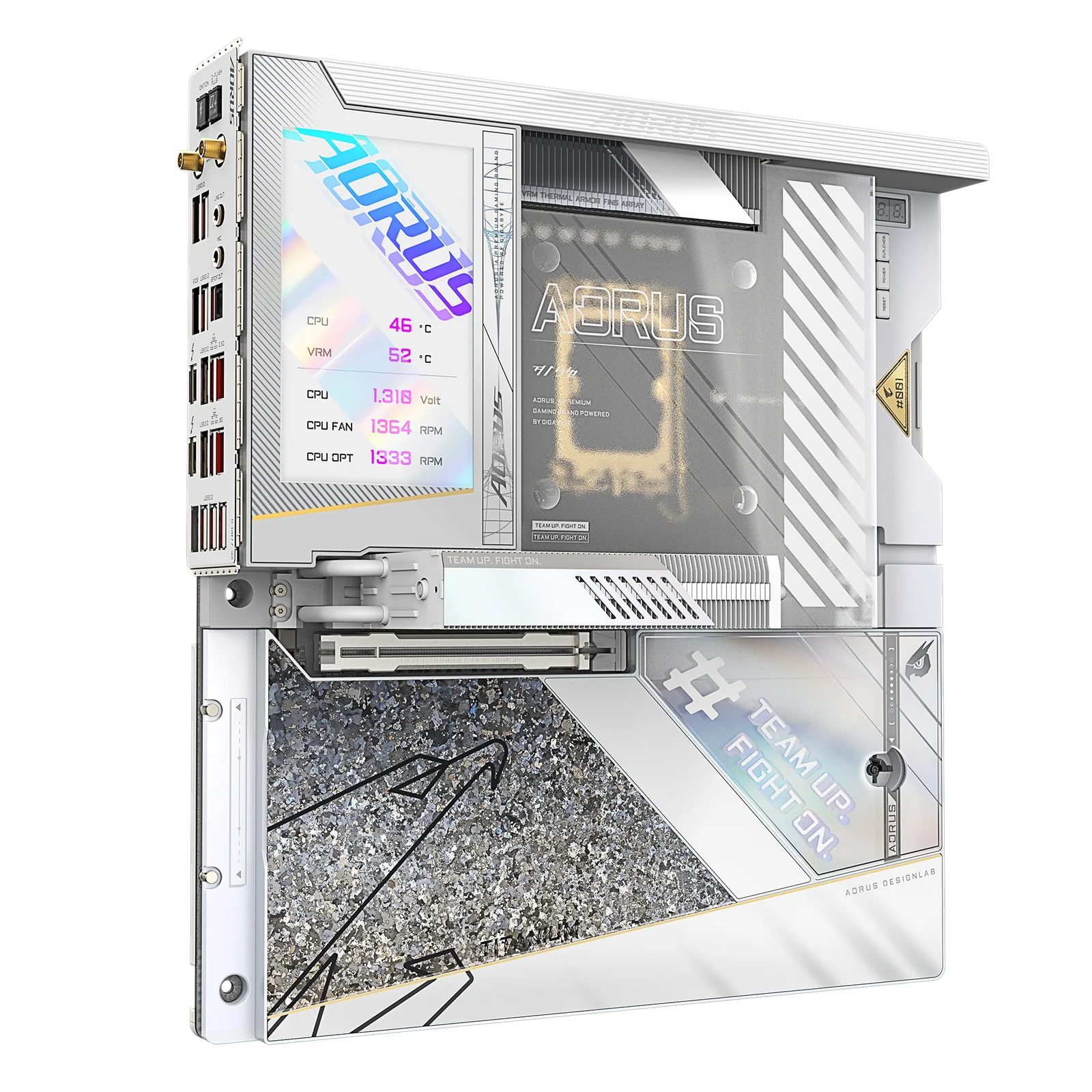

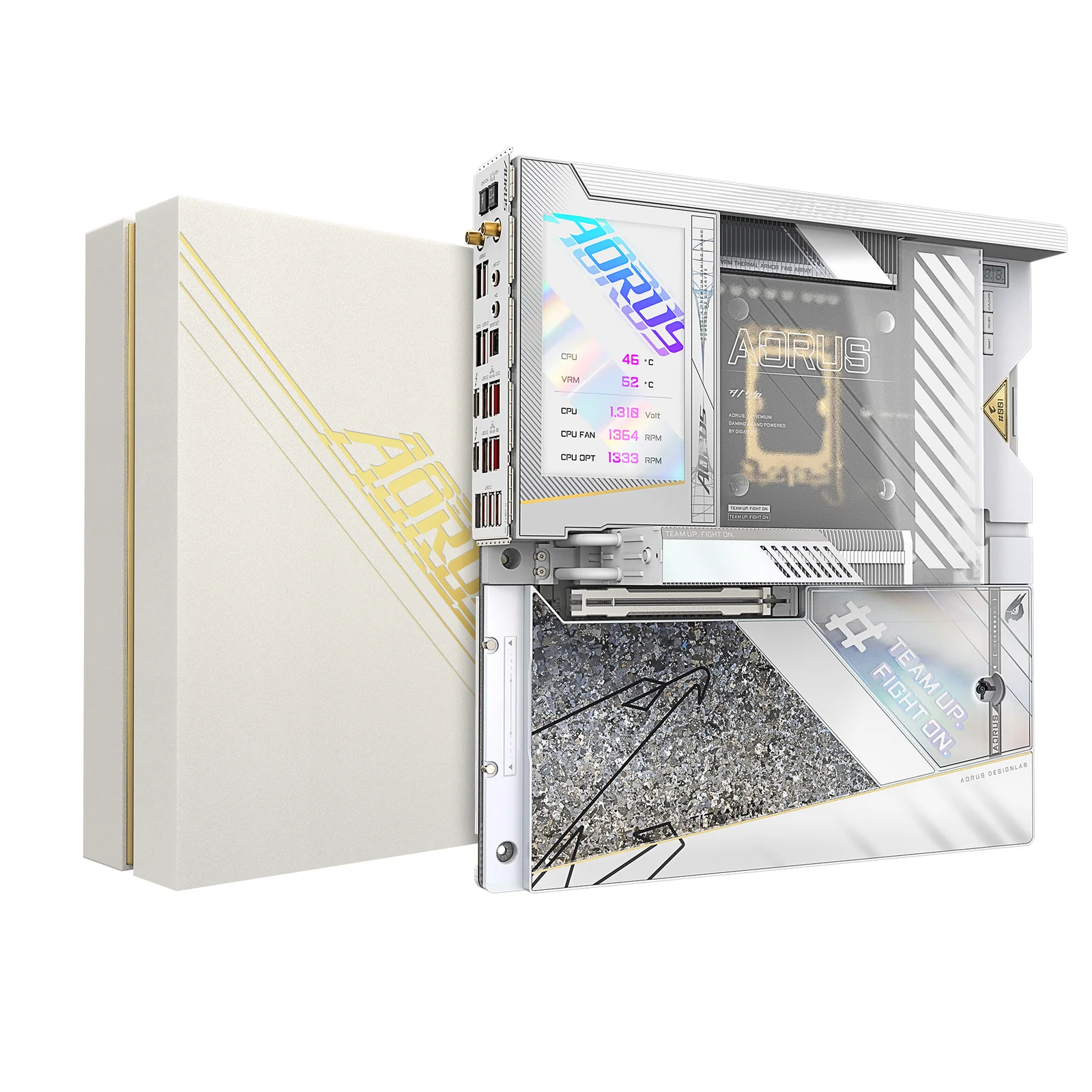

GIGABYTE Z790 AORUS XTREME X ICE

Model Z790 AORUS XTREME X ICE Motherboard - Supports Intel 14th Gen CPUs, 24+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB 3.2 Gen 2

Overview

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & non-ECC
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz
Supported memory clock speed (max)
8266 MHz
Maximum internal memory
192 GB
Supported memory module capacities
1GB,2GB,4GB,8GB,12GB,16GB,32GB,48GB
Unbuffered memory
Yes

Battery

Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet,10 Gigabit Ethernet
LAN controller
Aquantia AQC107
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 7 (802.11be)
WLAN controller model
Qualcomm QCNCM865
Bluetooth
Yes
Bluetooth version
5.3

Features

Motherboard chipset
Intel Z790 Express
Audio chip
ESS ES9280AC + ESS ES9080
Audio output channels
7.1 channels
Product colour
White
PC health monitoring
FAN,Noise,Temperature,Voltage,Water cooling
Component for
PC
Motherboard form factor
Extended ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11 x64

Graphics

Parallel processing technology support
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
DirectX version
12.0

Processor

Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Maximum number of SMP processors
1
Supported processor sockets
LGA 1700

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2x2 connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
Number of EATX power connectors
2
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
TPM connector
Yes
Thunderbolt headers
2
12V power connector
Yes
RGB LED pin header
Yes

Logistics data

Country of origin
Taiwan
Products per shipping (inner) case
1 pc(s)

Expansion slots

PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
5

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2,SATA III
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0,1,10

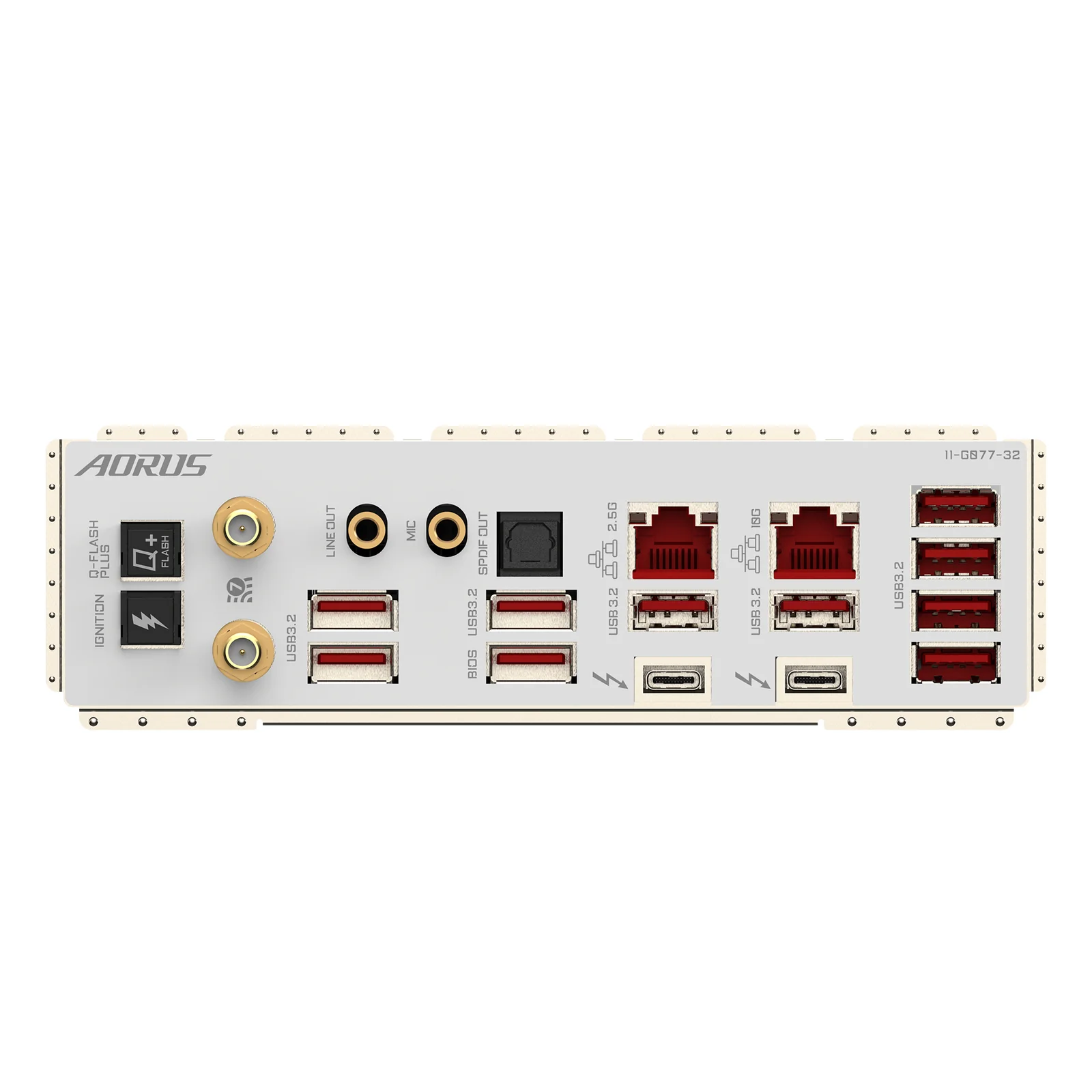

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
10
Ethernet LAN (RJ-45) ports
2
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
Thunderbolt ports quantity
2
WiFi-AP antenna jack
2
USB connector type
USB Type-A,USB Type-C
