GIGABYTE

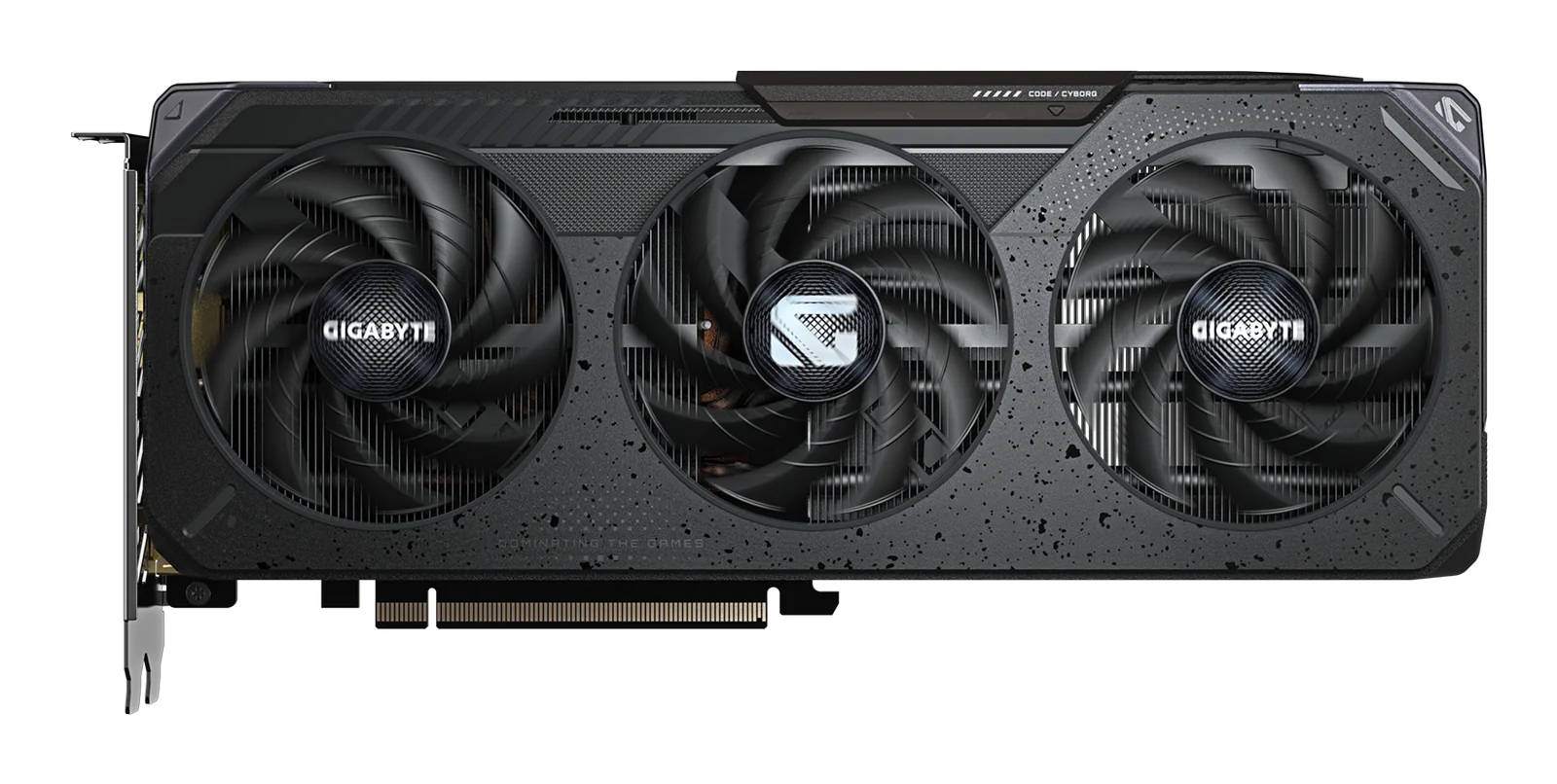

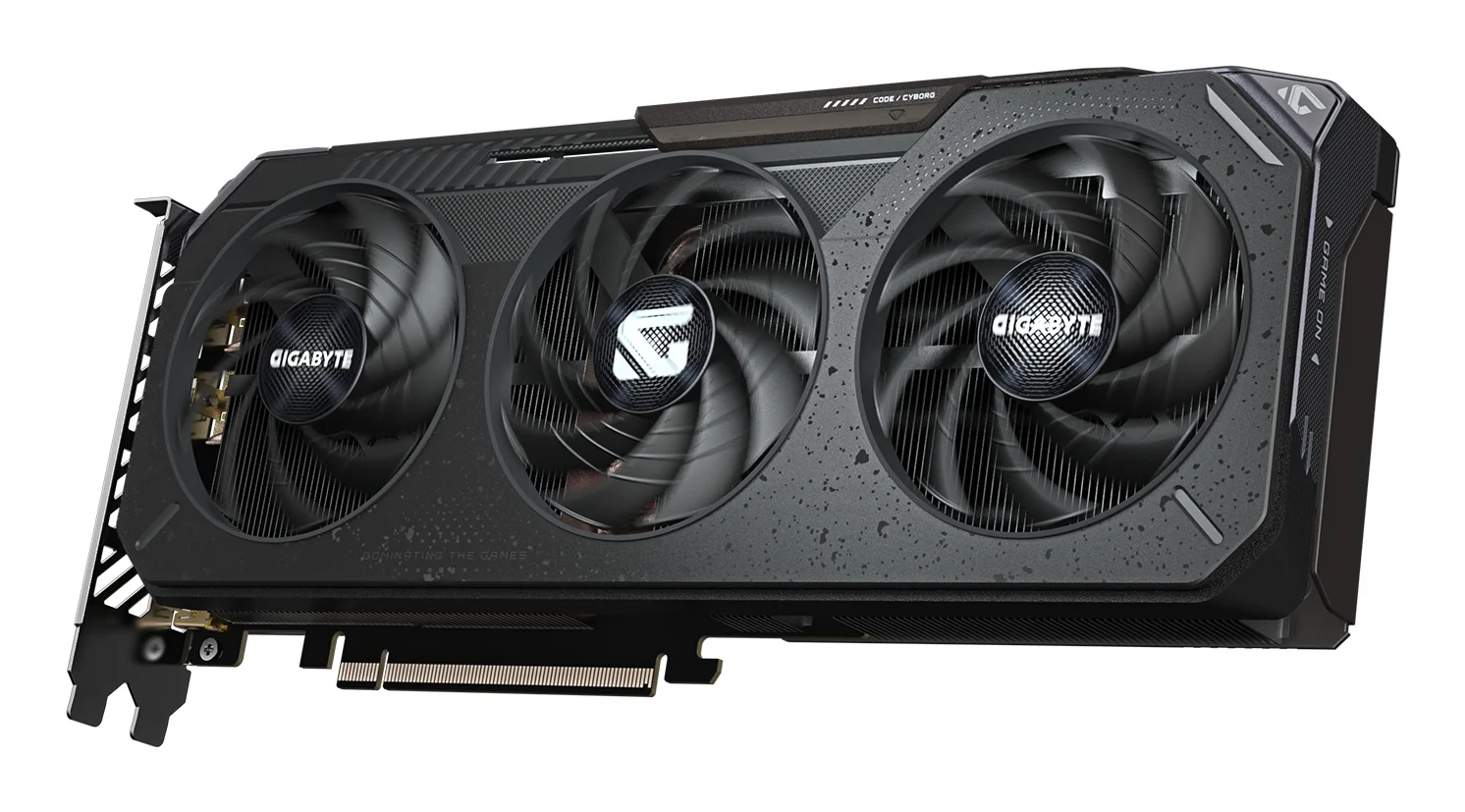

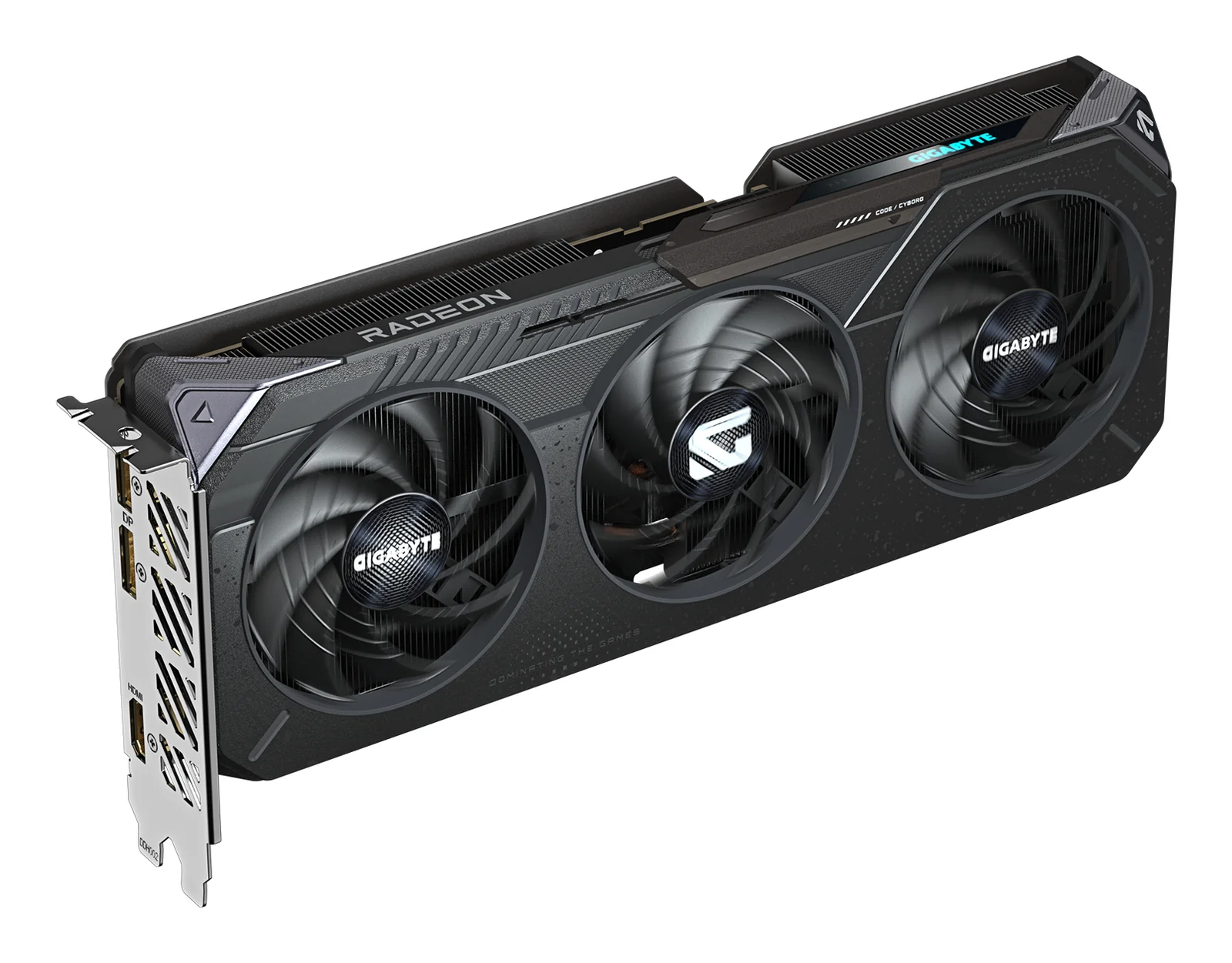

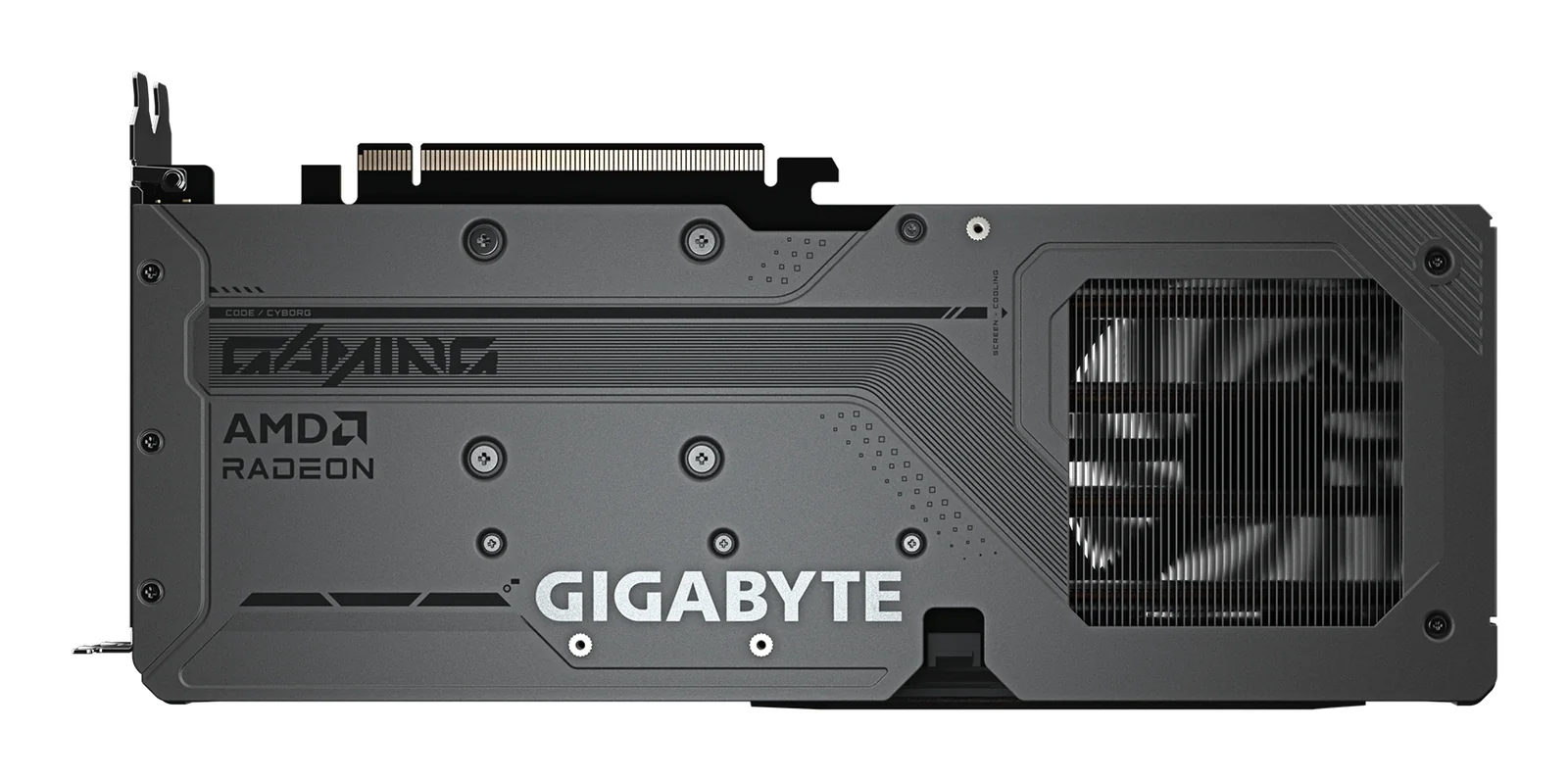

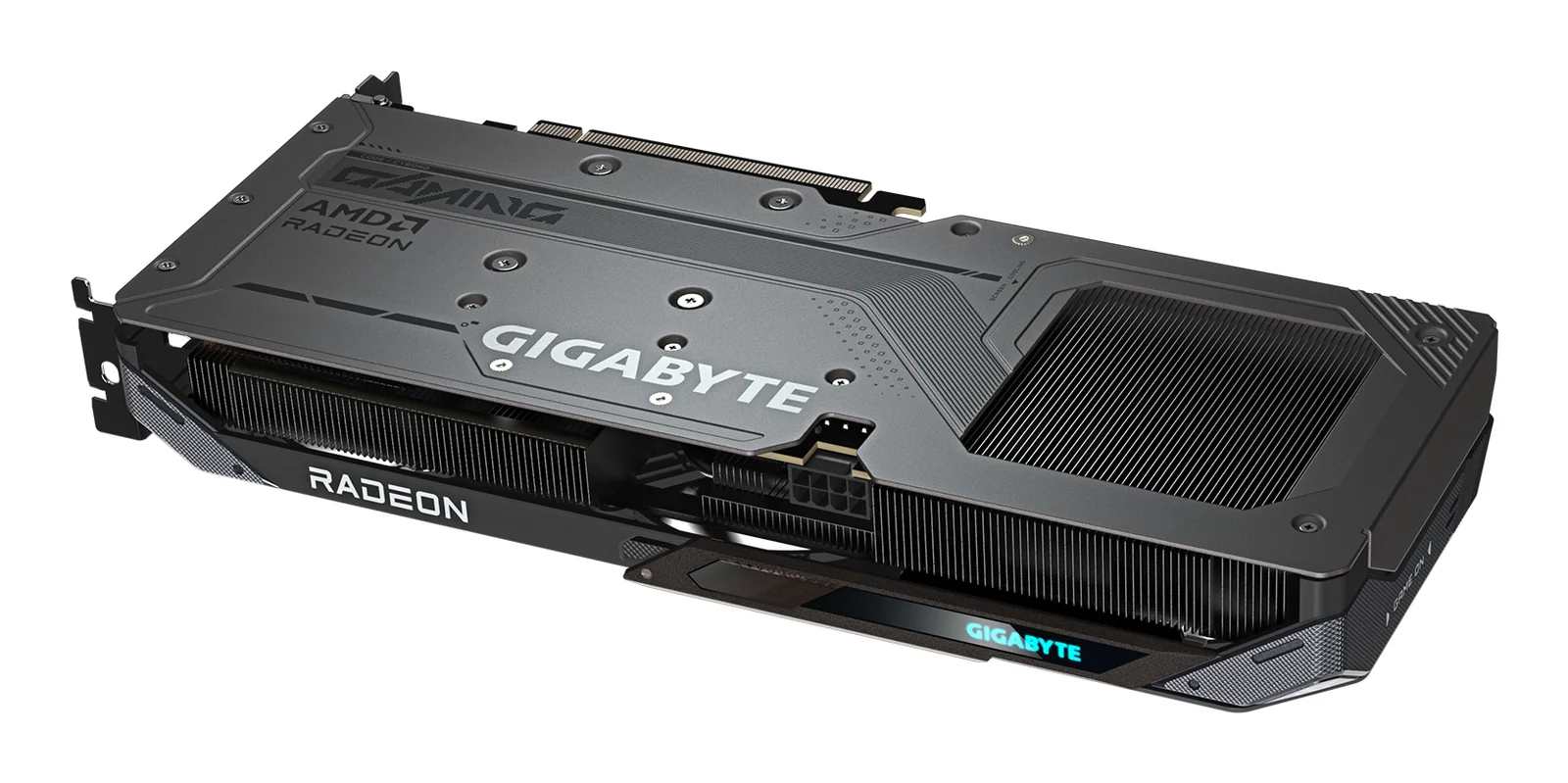

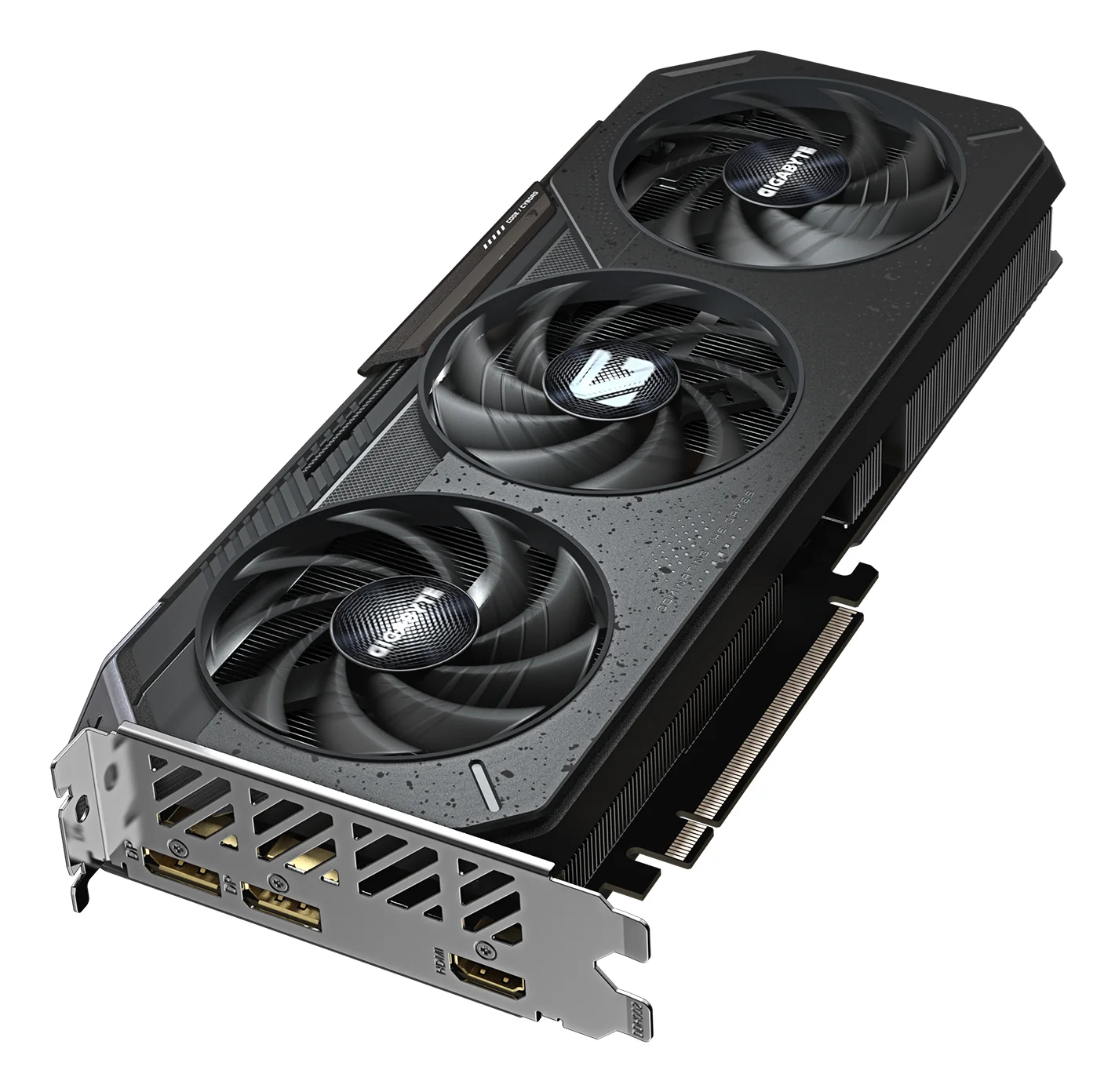

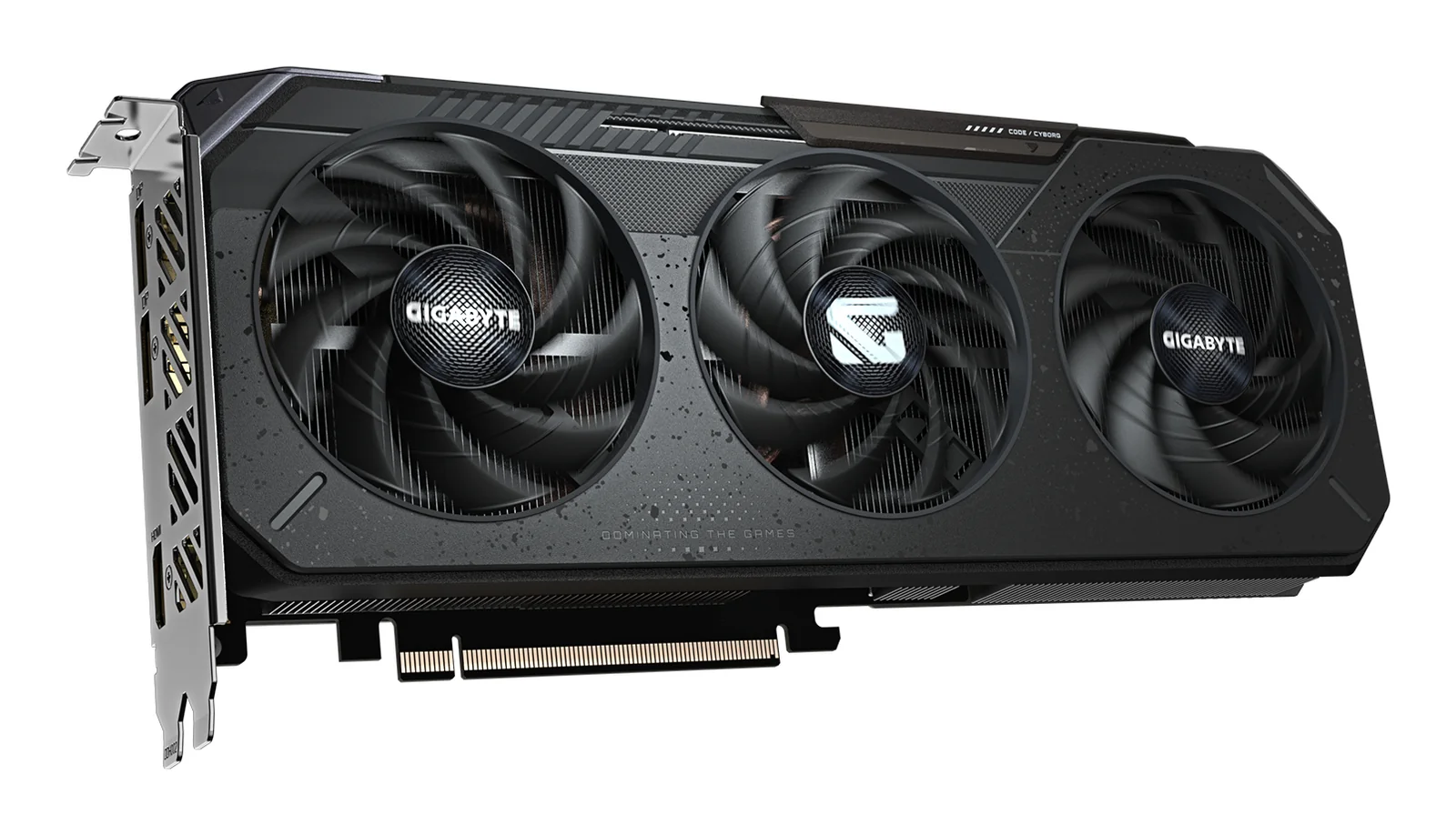

GIGABYTE Radeon RX 9060 XT GAMING OC 8G
Model Radeon RX 9060 XT GAMING OC 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 5.0, 3320 MHz Core Clock, 2 x DisplayPort, 1 x HDMI, GV-R9060XTGAMING OC-8GD
Overview
Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
Specifications
Performance
- TV tuner integrated
- No
- DirectX version
- 12.0
- OpenGL version
- 4.6
- Dual Link DVI
- No
- Overclocked (OC) edition
- Yes
- Warranty period
- 3 year(s)
Design
- Cooling type
- Active
- Cooling technology
- GIGABYTE WINDFORCE 3X
- Number of fans
- 3 fan(s)
- Form factor
- Full-Height/Full-Length (FH/FL)
- Number of slots
- 2
- Illumination
- Yes
- Illumination colour
- Multi
- Product colour
- Black
Power
- Minimum system power supply
- 450 W
- Supplementary power connectors
- 1x 8-pin
- Thermal Design Power (TDP)
- 167 W
Memory
- Discrete graphics card memory
- 8 GB
- Graphics card memory type
- GDDR6
- Memory bus
- 128 bit
- Memory clock speed
- 20000 MHz
- Data transfer rate
- 20 Gbit/s
Processor
- CUDA
- No
- Graphics processor family
- AMD
- Graphics processor
- Radeon RX 9060 XT
- Processor boost clock speed
- 3320 MHz
- Processor boost clock speed (Gaming mode)
- 2780 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Stream processors
- 2048
- Maximum displays per videocard
- 4
Logistics data
- Products per shipping (inner) case
- 1 pc(s)
Packaging data
- Package width
- 182.5 mm
- Package depth
- 354 mm
- Package height
- 75 mm
- Package weight
- 1290 g
- Package type
- Box
Ports & interfaces
- Interface type
- PCI Express x16 5.0
- HDMI ports quantity
- 1
- HDMI version
- 2.1b
- DisplayPorts quantity
- 2
Weight & dimensions
- Weight
- 840 g
- Length
- 281 mm
- Depth
- 40 mm
- Height
- 118 mm
