GIGABYTE

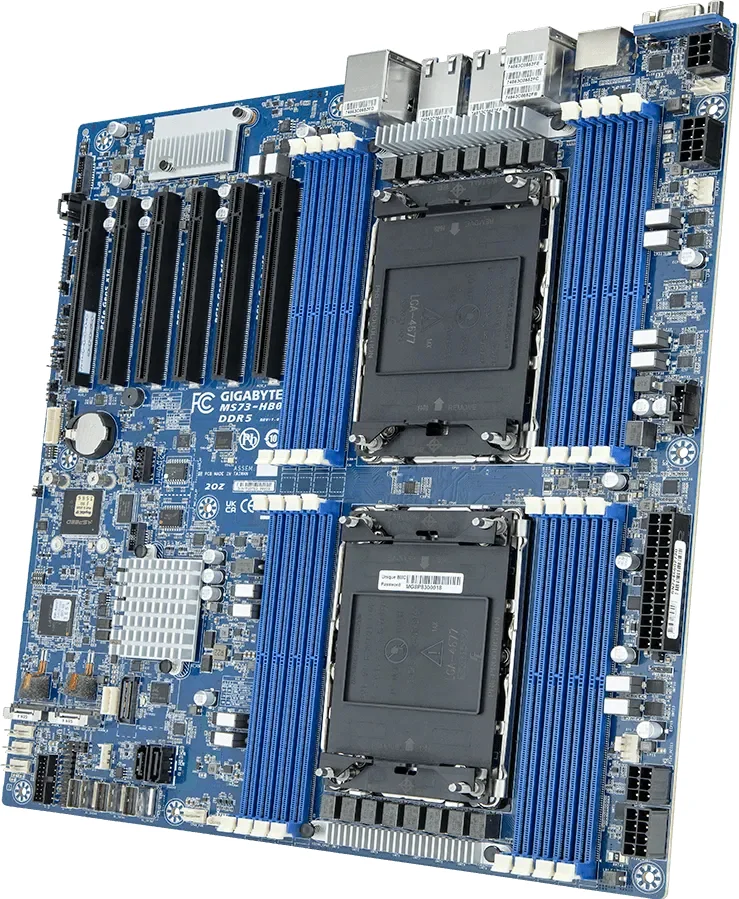

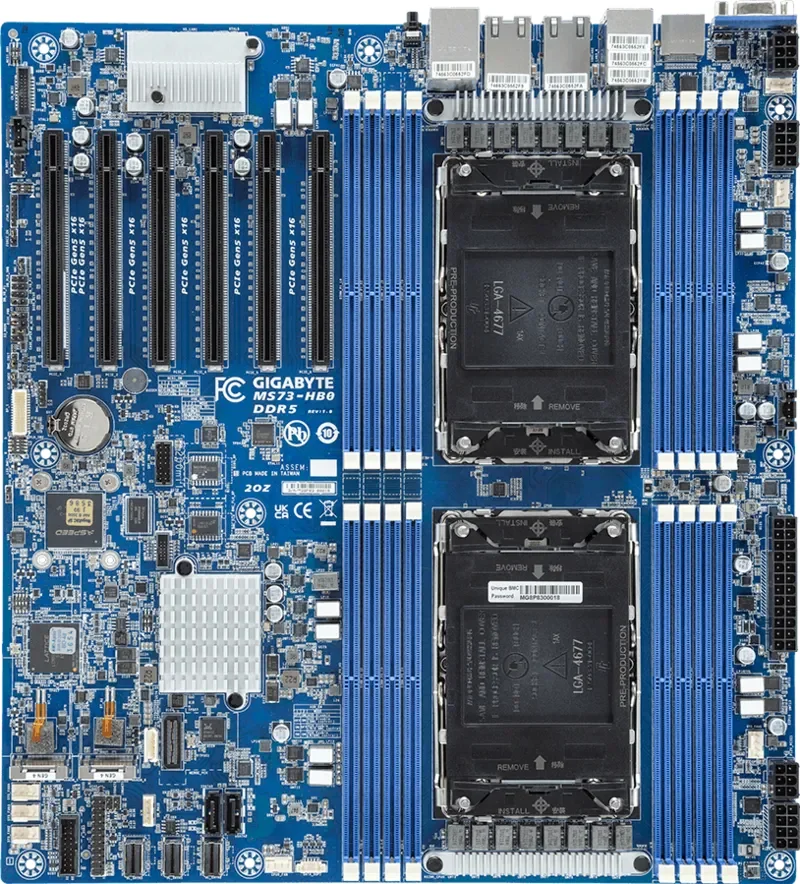

GIGABYTE MS73-HB0
Model MS73-HB0
Overview
Accelerating Artificial Intelligence and Leading Efficiency Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
Specifications
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 16
- Memory slots type
- DIMM
- Memory channels
- Octa-channel
- Supported memory clock speed (max)
- 5600 MHz
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet,Gigabit Ethernet
- LAN controller
- Intel X710-AT2,Intel I210-AT
- Wi-Fi
- No
Features
- Motherboard chipset
- Intel C741
- Product colour
- Blue
- Component for
- Server
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- Intel
- Cooling type
- Passive
- Power source type
- ATX
Graphics
- On-board graphics card
- Yes
- Graphics card family
- ASPEED
- On-board graphics card model
- Aspeed AST2600
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 4677 (Socket E)
- Compatible processor series
- Intel Xeon
- Maximum number of SMP processors
- 2
- Supported processor sockets
- LGA 4677 (Socket E)
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA connectors
- 2
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 4
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Yes
- 12V power connector
- Yes
Packaging data
- Package width
- 409 mm
- Package depth
- 355 mm
- Package height
- 78 mm
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 6
- Number of M.2 (M) slots
- 2
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SlimSAS,SATA
- Number of HDDs supported
- 14
- Number of storage drives supported
- 16
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 304.8 mm
- Depth
- 330.2 mm
Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 4
- VGA (D-Sub) ports quantity
- 1
- Serial ports quantity
- 1
Operational conditions
- Storage temperature (T-T)
- -40 - 60 °C
- Operating temperature (T-T)
- 10 - 40 °C
- Operating relative humidity (H-H)
- 8 - 80 %
- Storage relative humidity (H-H)
- 20 - 95 %
