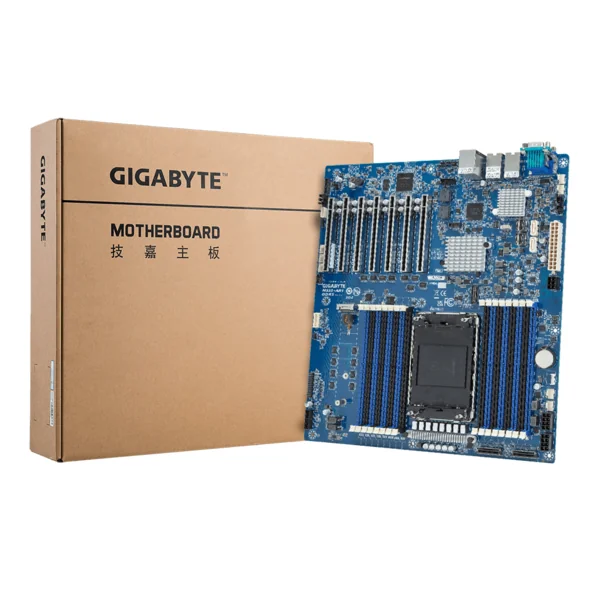

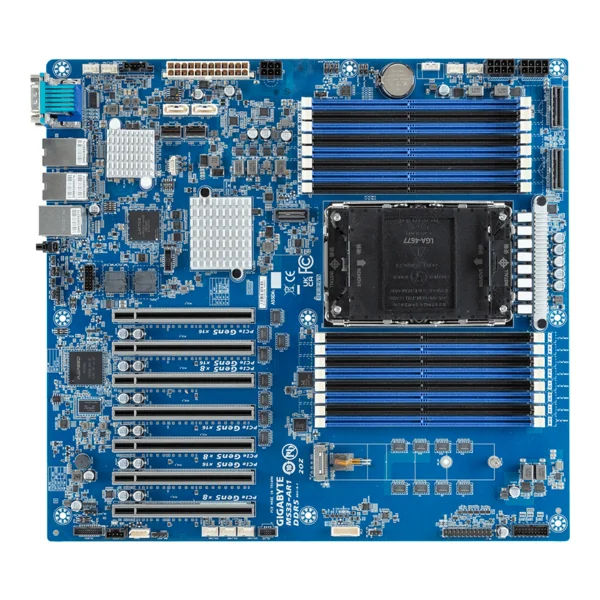

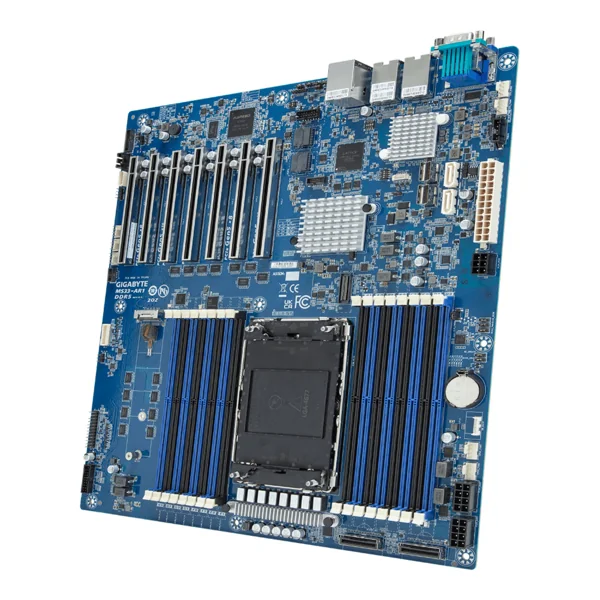

GIGABYTE MS33-AR1
Model MS33-AR1
Overview
Accelerating Artificial Intelligence and Leading Efficiency Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory. Optional TPM 2.0 Module For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Specifications
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 16
- Memory slots type
- DIMM
- Memory channels
- Hexa-channel
- Supported memory clock speeds
- 4400,4800,5600 MHz
- Maximum internal memory
- 256 GB
- Maximum RDIMM memory
- 96 GB
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Broadcom BCM57416
- Wi-Fi
- No
Features
- Motherboard chipset
- Intel C741
- Product colour
- Blue
- Component for
- Server
- Motherboard form factor
- Extended ATX
- Motherboard chipset family
- Intel
- Power source type
- ATX
Graphics
- On-board graphics card model
- Aspeed AST2600
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 4677 (Socket E)
- Compatible processor series
- Intel Xeon
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 2
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Yes
Packaging data
- Package width
- 409 mm
- Package depth
- 355 mm
- Package height
- 78 mm
Expansion slots
- PCI Express x8 (Gen 5.x) slots
- 3
- PCI Express x16 (Gen 5.x) slots
- 4
- Number of M.2 (M) slots
- 1
Storage controllers
- Supported storage drive interfaces
- SATA III,SlimSAS
- Number of storage drives supported
- 4
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 304.8 mm
- Depth
- 330.2 mm

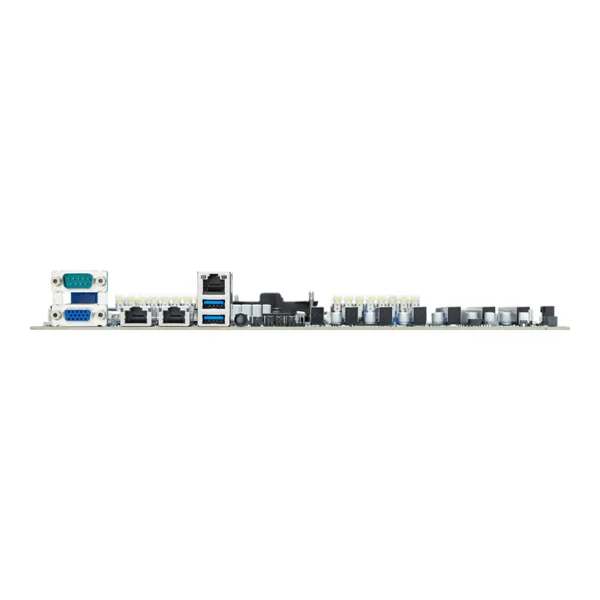

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 2
- VGA (D-Sub) ports quantity
- 1
- COM ports quantity
- 1
Operational conditions
- Storage temperature (T-T)
- 10 - 40 °C
- Operating temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 8 - 80 %
- Storage relative humidity (H-H)
- 20 - 95 %
