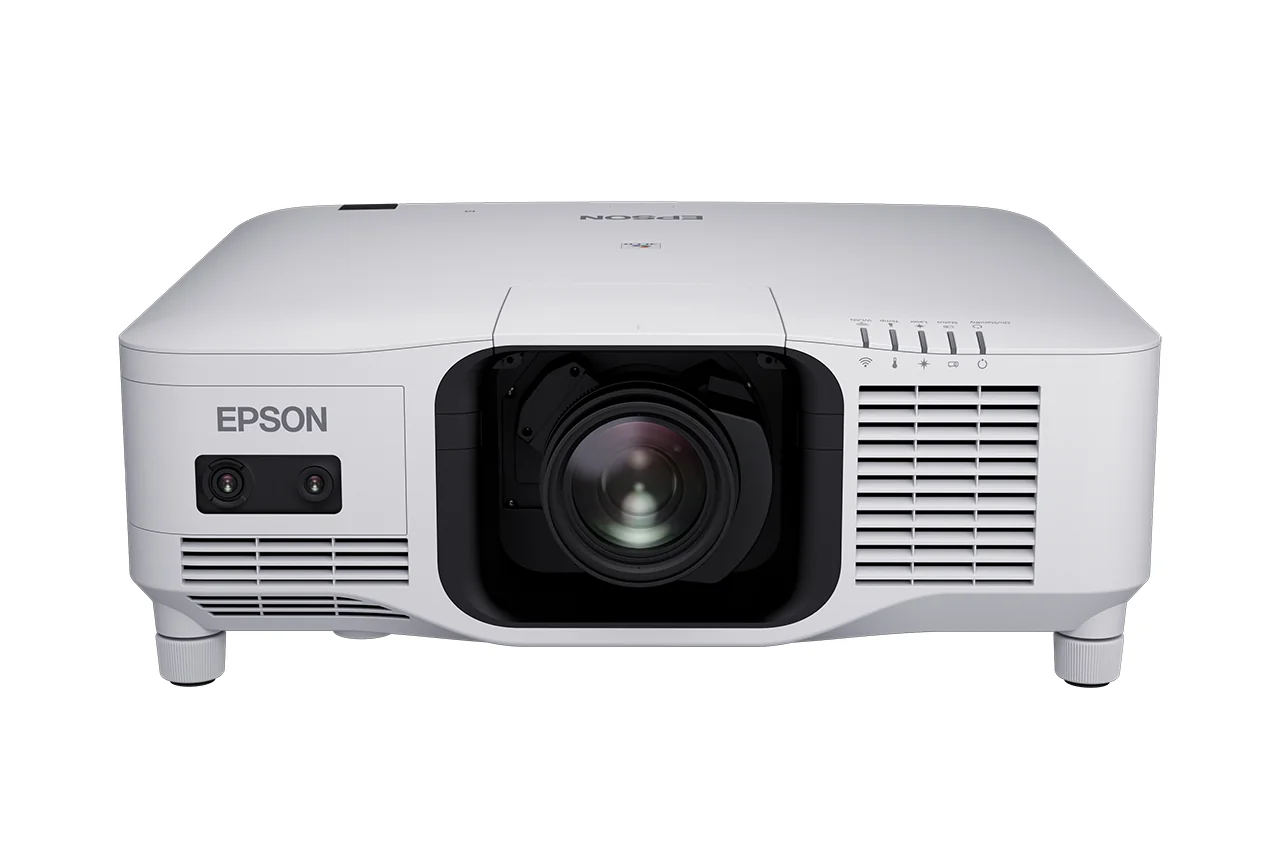

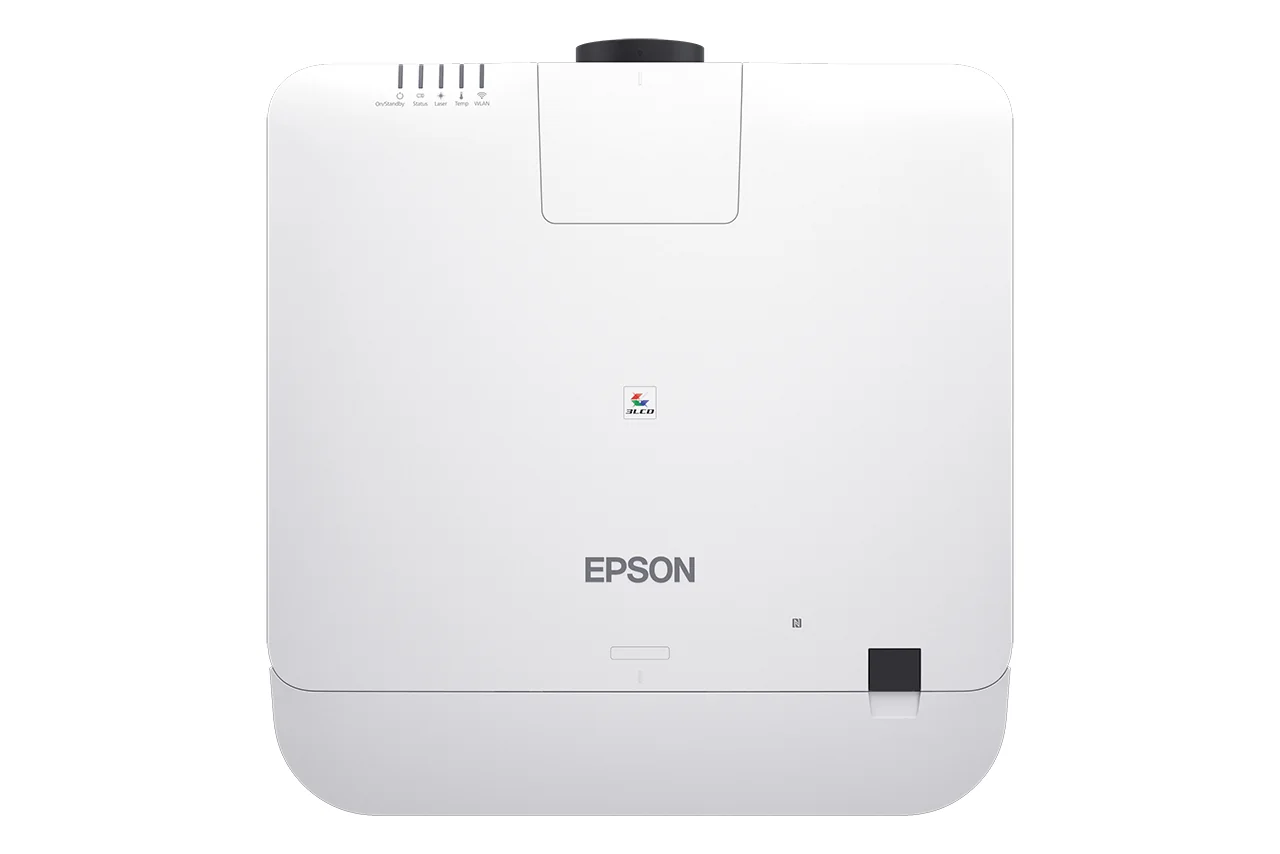

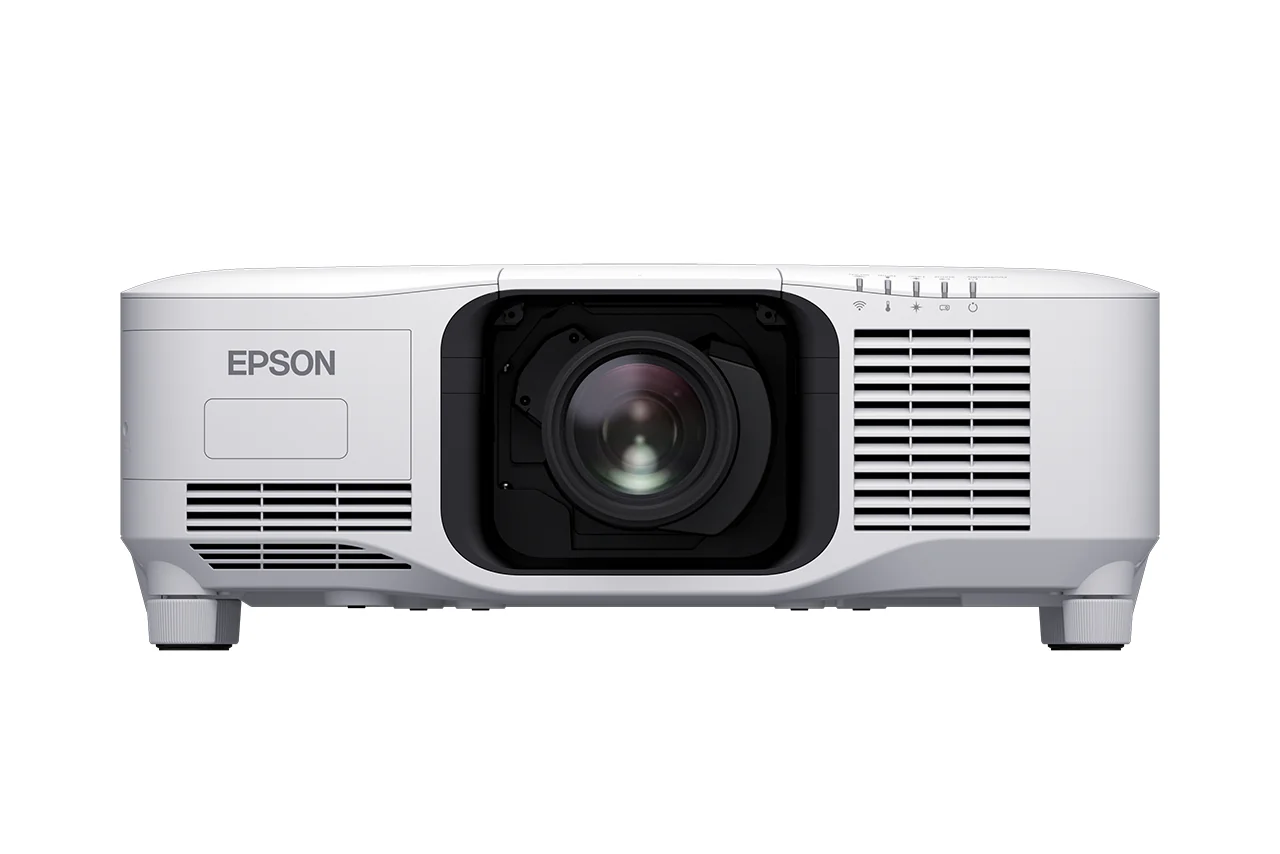

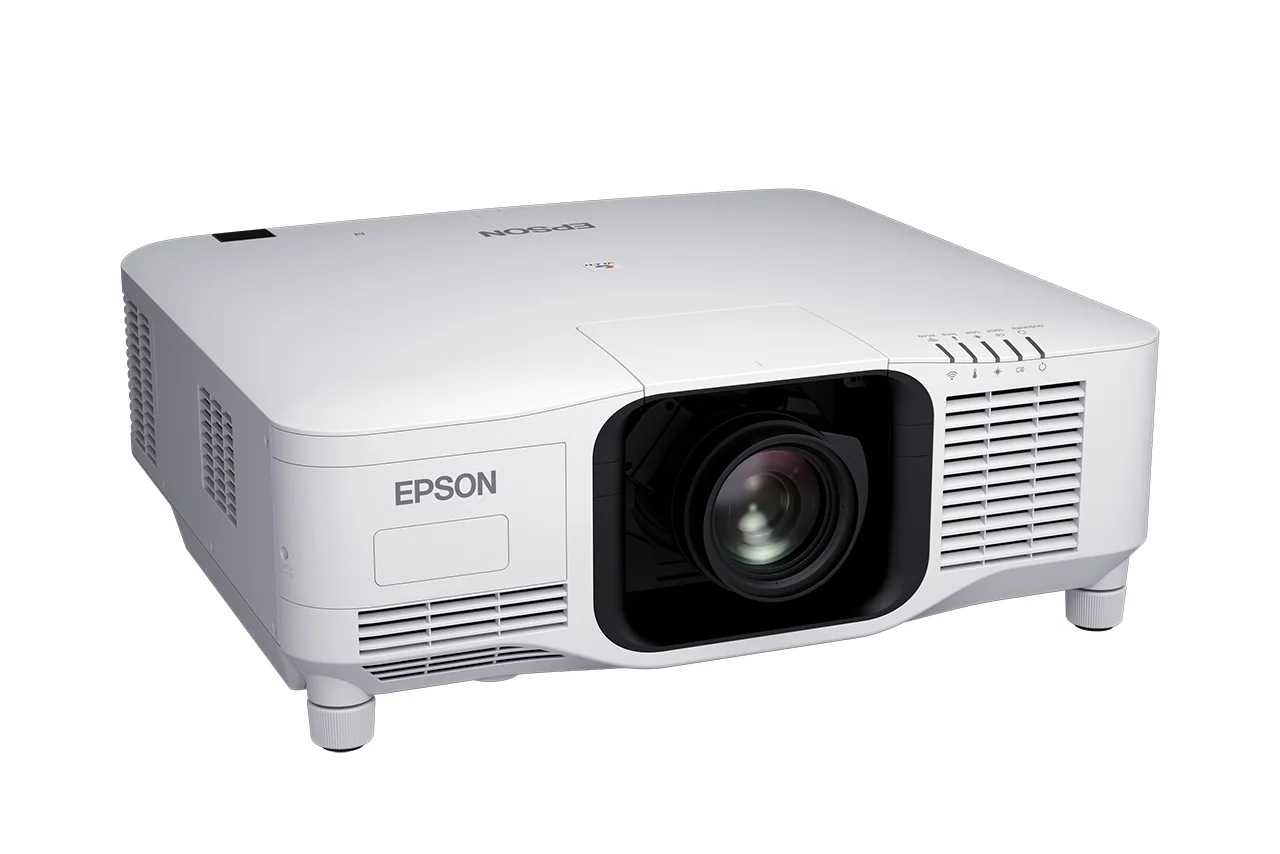

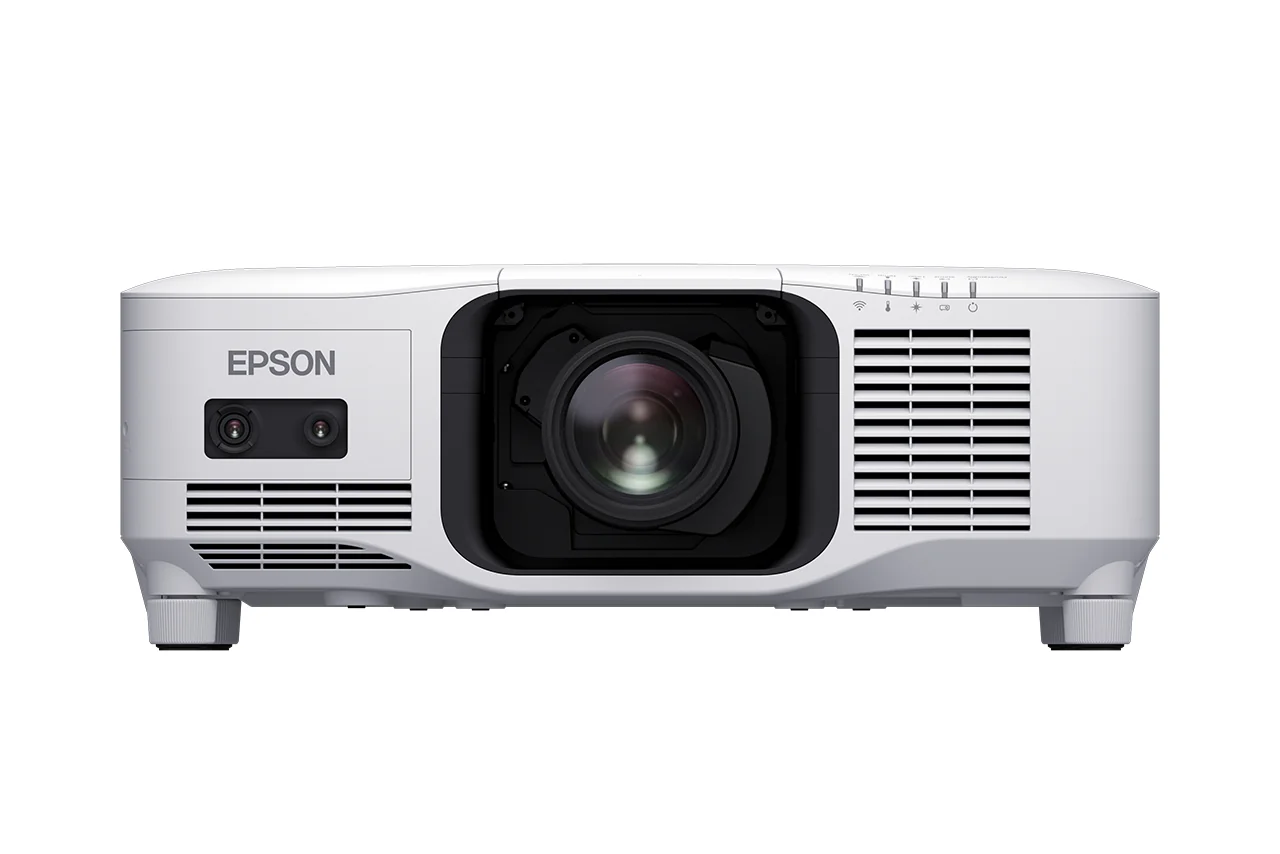

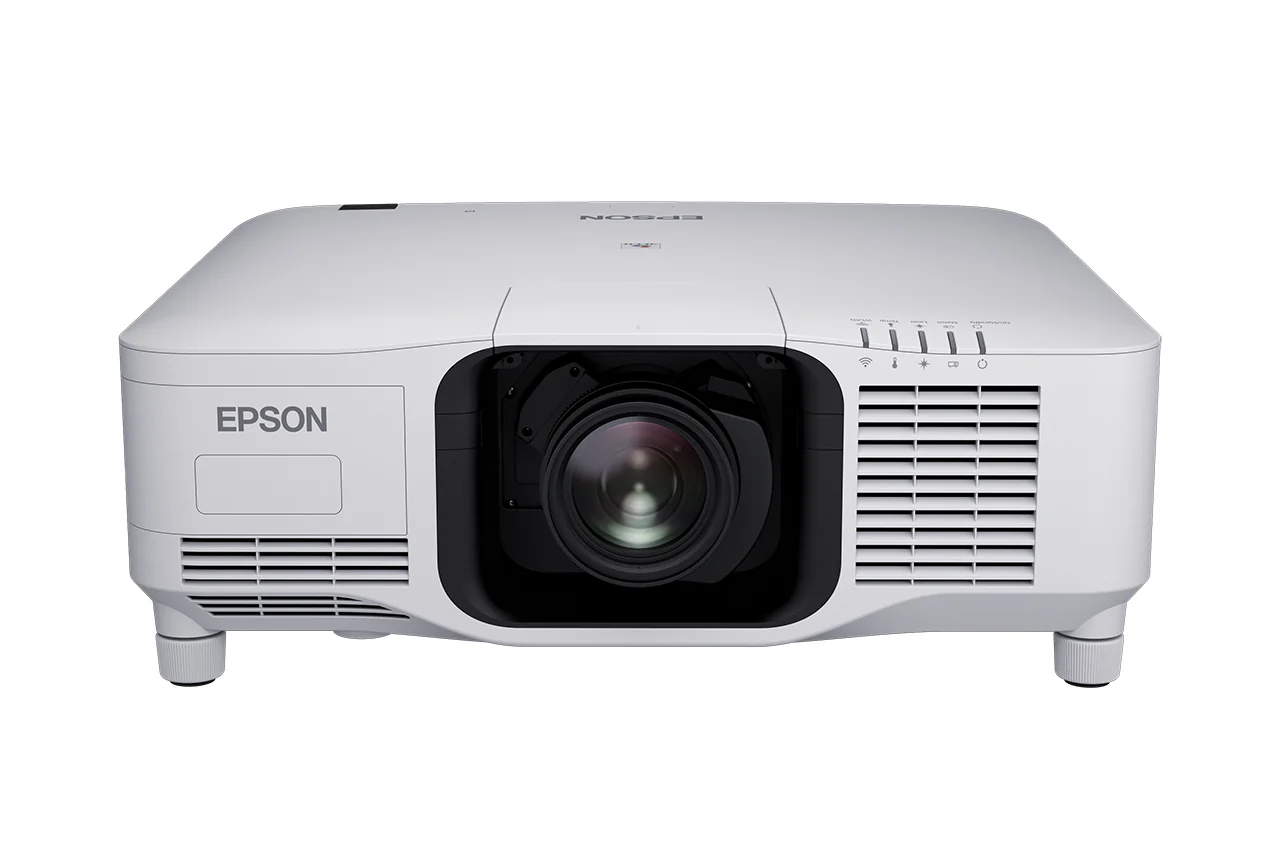

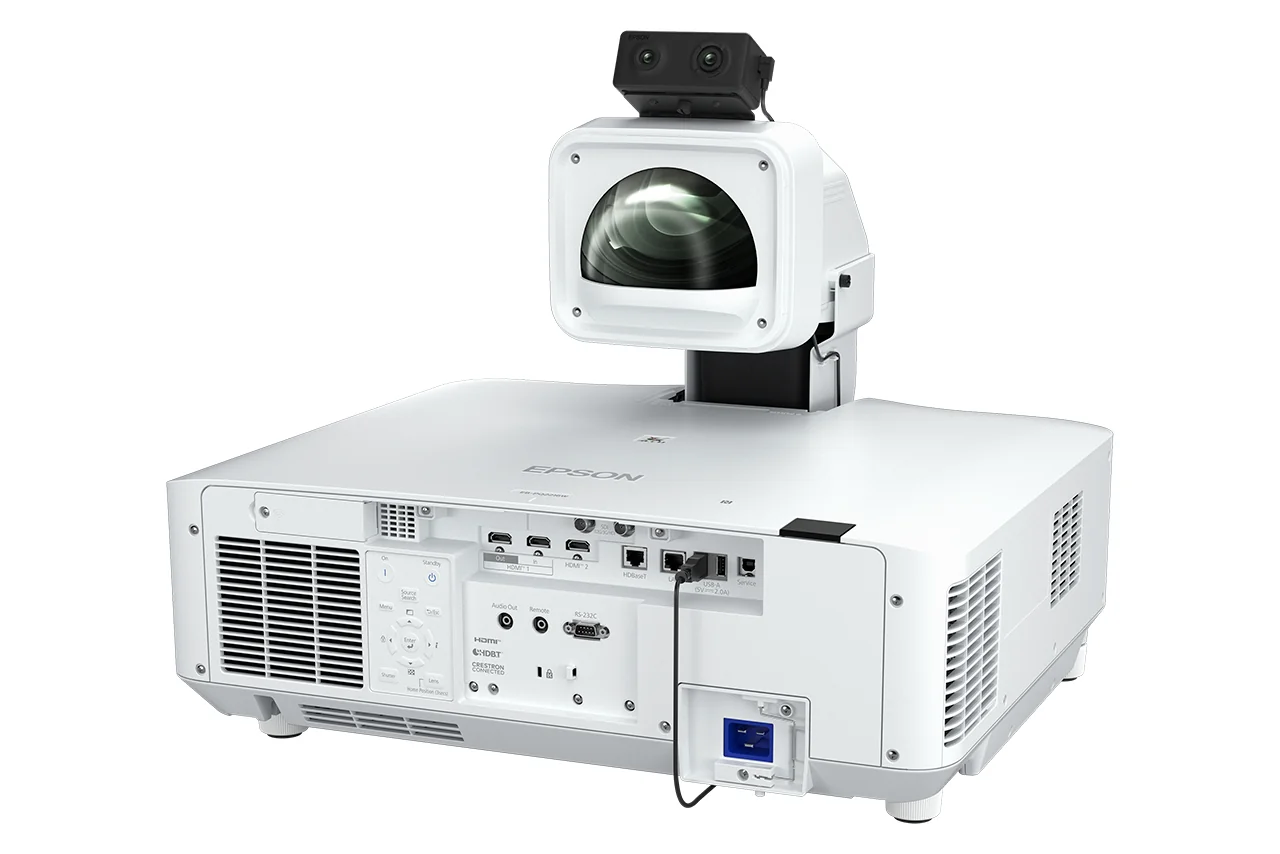

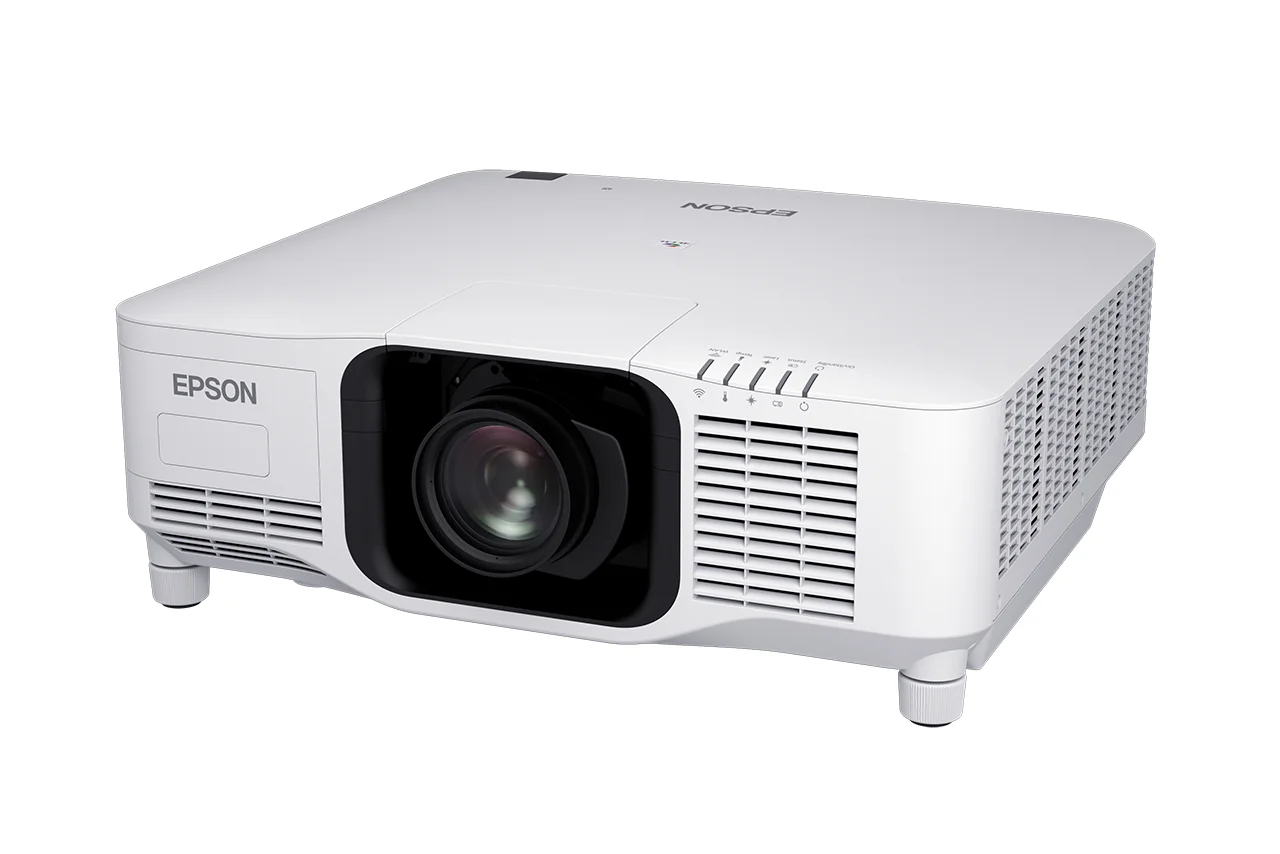

Epson EB-PQ2216W 4K Projector
Model EB-PQ2216W
Overview

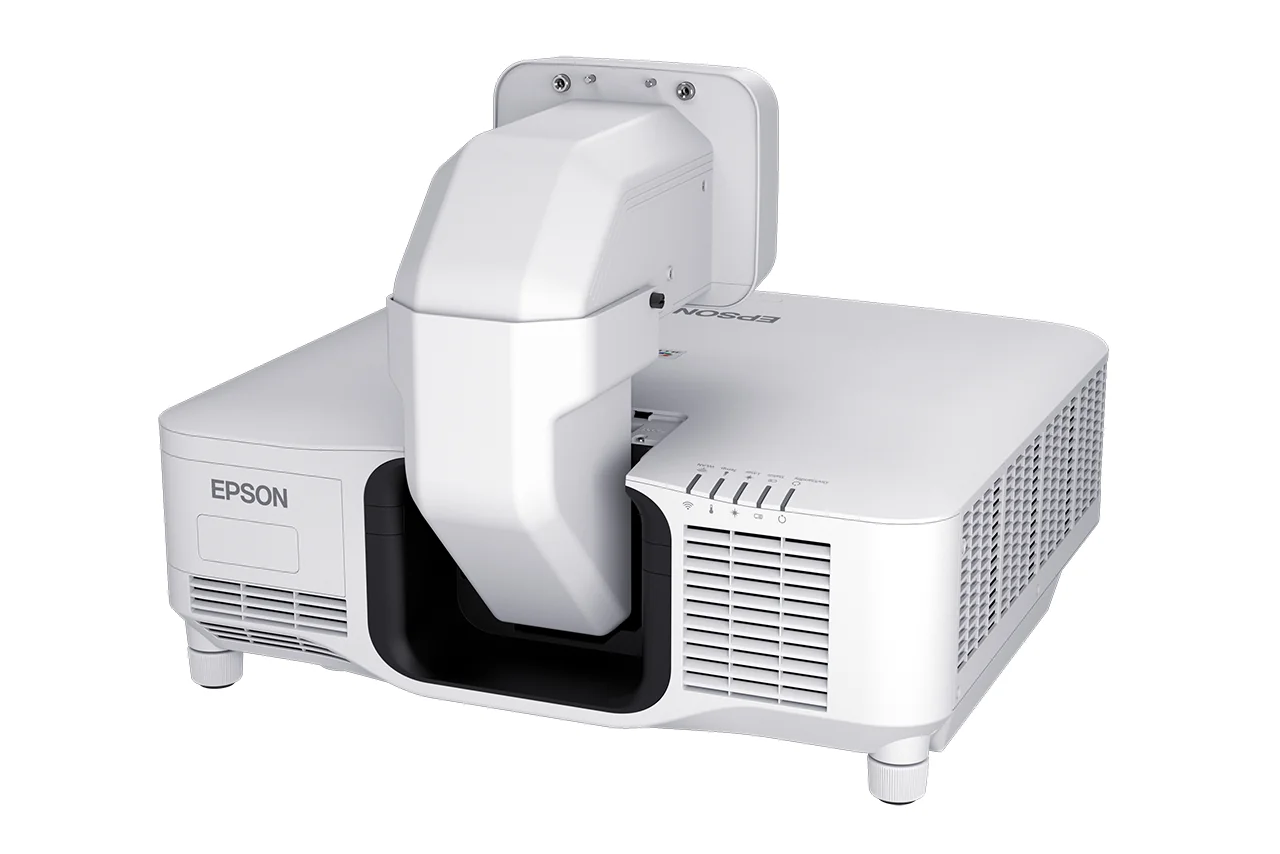

16,000lm 4K projector Designed to engage and captivate audiences with ultra-high resolution, large format content, the EB-PQ2216W uses 3LCD technology to deliver outstanding colour reproduction, while Epson's patented 4K Crystal Motion technology offers stunning image quality. Affordable and energy-efficient, the projector also features interchangeable lenses, a light and compact design and extensive connectivity. Limitless creativity Building on the success of the EB-PU Series, the EB-PQ2216W is not only small and light, but is highly affordable, versatile, energy-efficient and packed with advanced features. A revolutionary 4K experience Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality. Fantastically flexible Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation. Reliable Built for exceptional reliability, the EB-PQ2216W features IP5X rated dust resistance{s1 and up to 20,000 hours maintenance-free operation, or even longer in extended modes. Extensive software Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
Specifications
Storage
- Card reader integrated
- No
Display
- Built-in display
- No
- Colour depth
- 10 bit
Design
- Market positioning
- Presentation
- Product colour
- White
- Placement
- Ceiling,Desktop,Floor,Flying frame,Wall
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Power
- Power source
- AC
- Power consumption (typical)
- 1114 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 784 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Video
- Analog signal format system
- Not supported
- Full HD
- Yes
- 3D
- No
- Video processing
- 10 bit
- Video colour modes
- BT.709,Cinema,DICOM simulation mode,Dynamic,Multi-projection,Natural,Presentation
Network
- Smart TV
- No
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
Features
- Interactive
- No
- Noise level (economic mode)
- 36 dB
- On Screen Display (OSD)
- Yes
- Noise level
- 44 dB
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10),Hybrid Log-Gamma (HLG)
- International Protection (IP) code
- IPX5
- Password protection
- Yes
Projector
- Supported aspect ratios
- 16:9,21:9
- Smart projector
- No
- Contrast ratio (dynamic)
- 5000000:1
- Projector brightness
- 16000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- UHD 4K (3840x2160)
- Contrast ratio (typical)
- 3000:1
- Native aspect ratio
- 16:9
- Number of colours
- 1.07 billion colours
- Projector brightness (economic mode)
- 11200 ANSI lumens
- Keystone correction, horizontal
- ±30 °
- Keystone correction, vertical
- ±45 °
- Matrix size
- 1.04"
- White light output
- 16000 ANSI lumens
- Colour light output
- 16000 ANSI lumens
Lens system
- Focus
- Motorized
- Focal length range
- Varies by lens mm
- Zoom capability
- Yes
- Throw ratio
- 0.34 - 7.16:1, Varies by lens
- Interchangeable lens
- Yes
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 30000 h

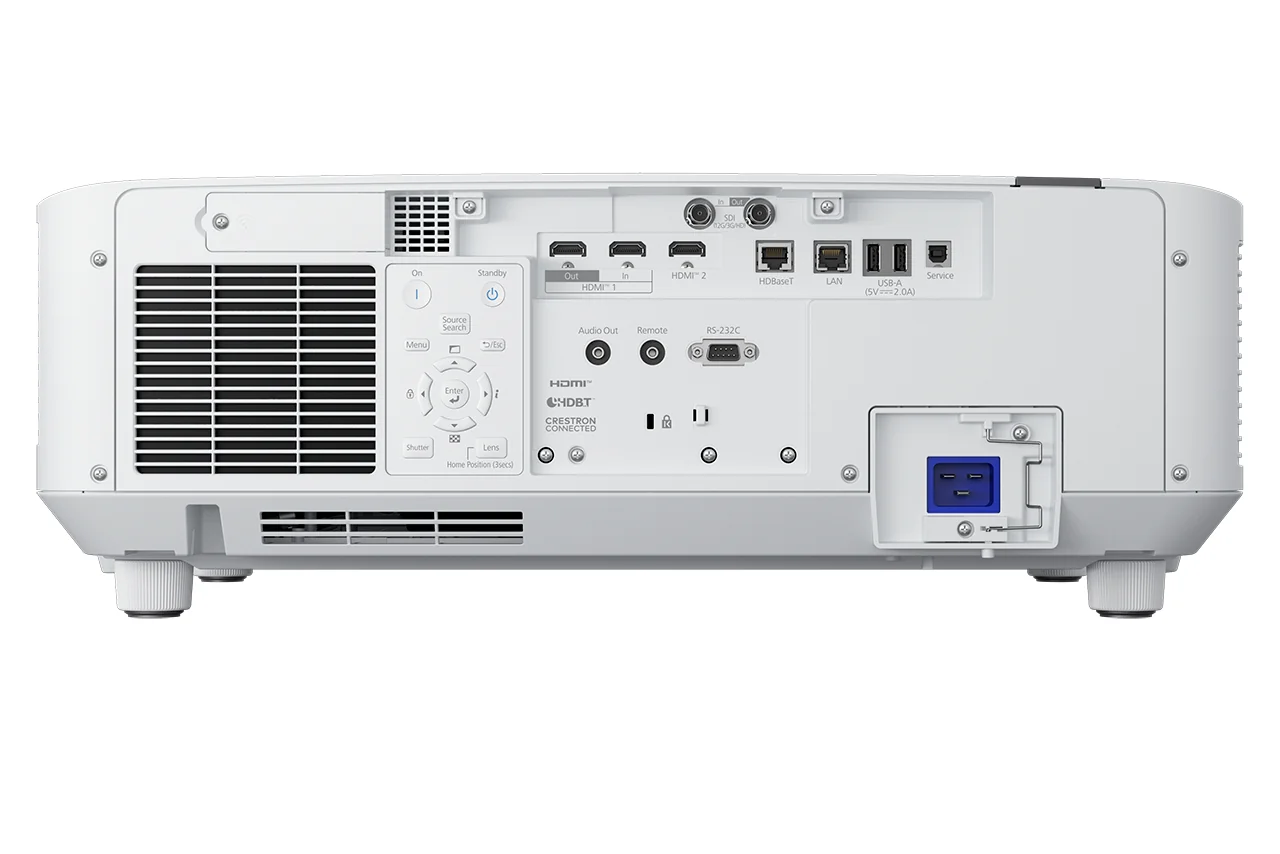

Ports & interfaces
- HDBaseT port
- Yes
- Service port type
- USB Type-B
- USB 2.0 ports quantity
- 2
- USB 2.0 Type-A ports quantity
- 2
- USB 2.0 Type-B ports quantity
- 1
- Serial interface type
- RS-232C
- HDMI ports quantity
- 3
- DVI port
- No
- AC (power) in
- Yes
Operational conditions
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80 %
- Storage relative humidity (H-H)
- 10 - 90 %
