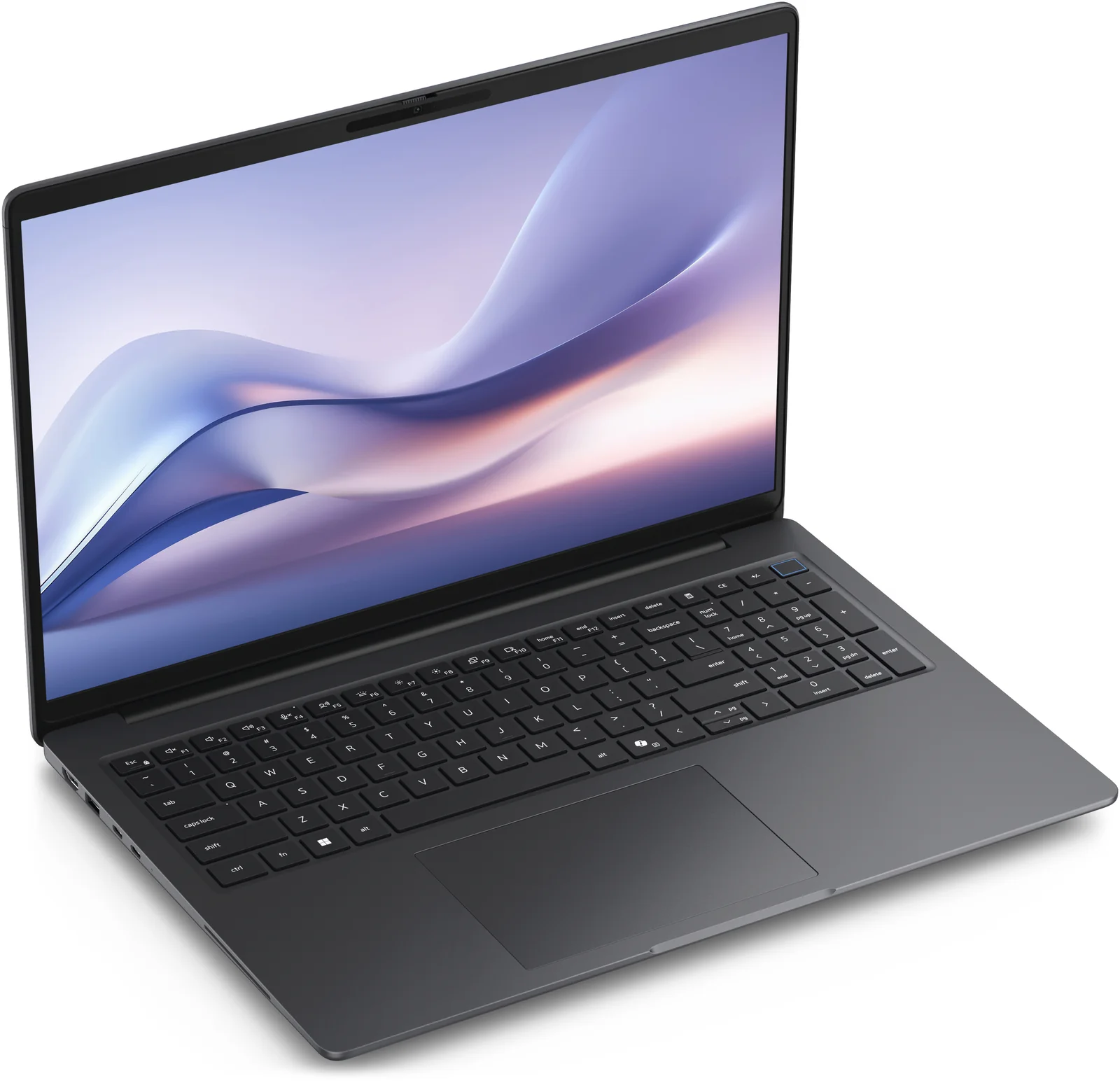

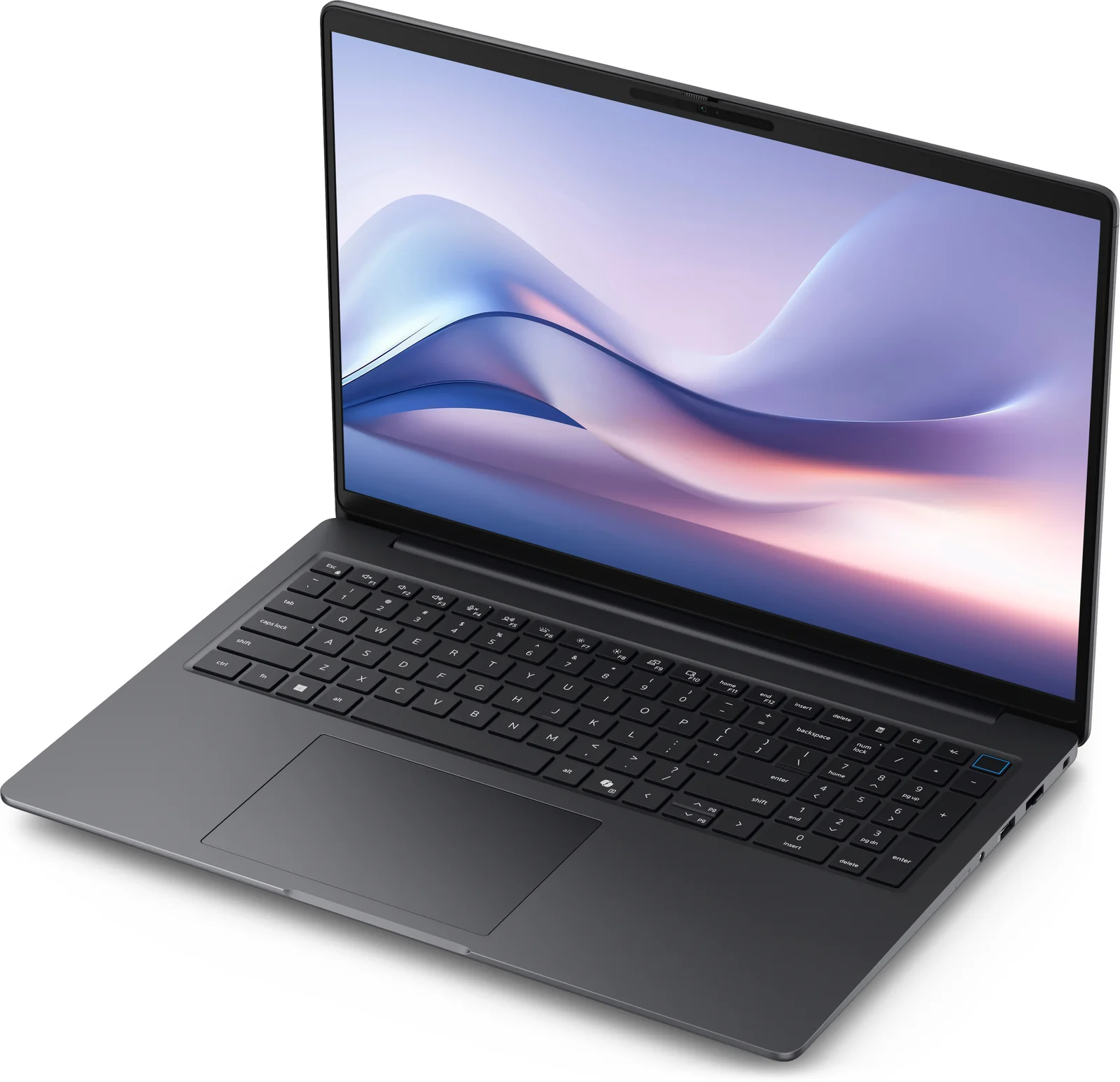

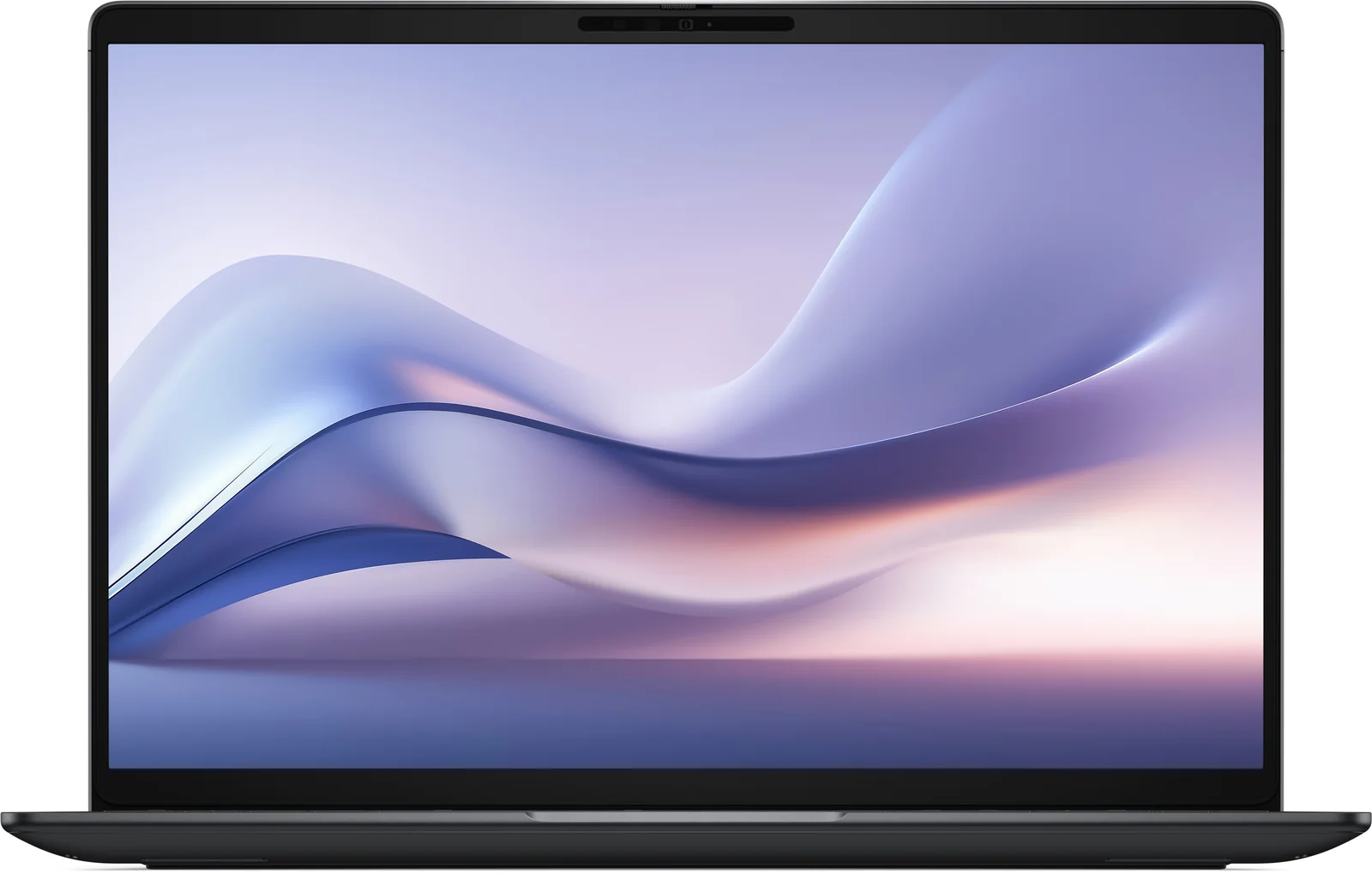

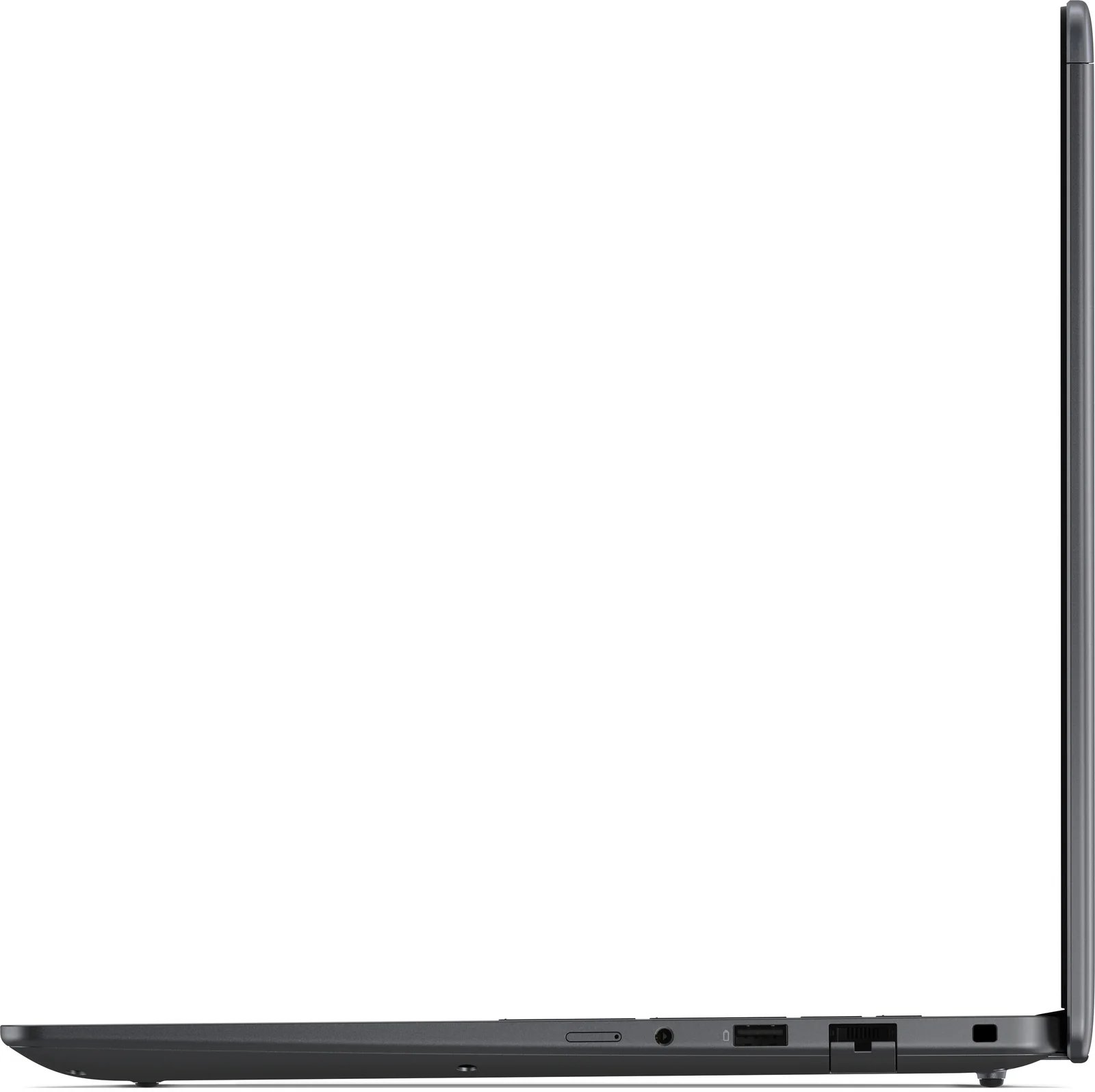

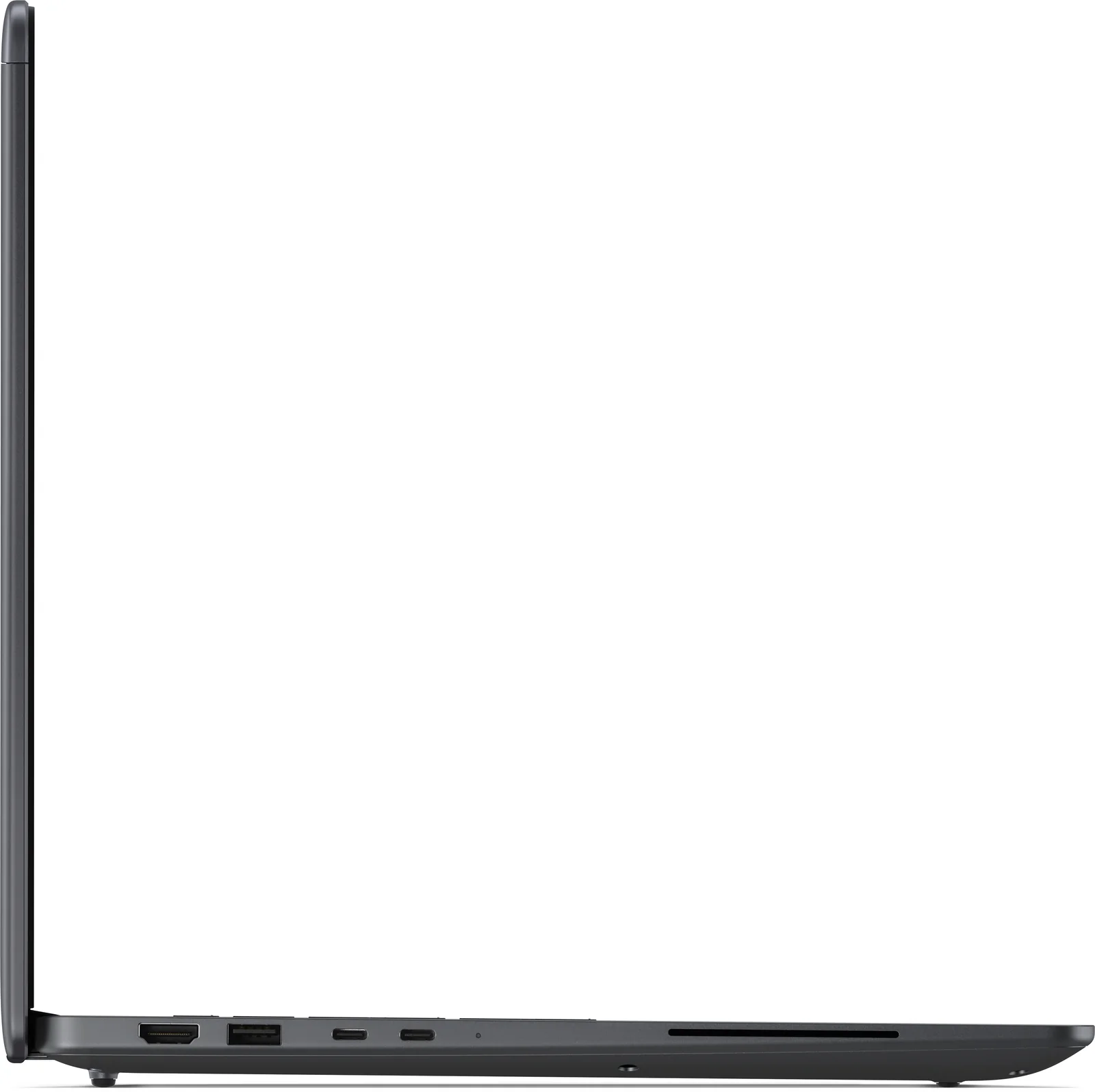

DELL Pro Precision 5 16S PW516260 16", 64GB RAM, 1TB SSD

Model PW516260

Price coming soon

Leave your email and we'll tell you when it's available to order.

SKU: TS-2658
EAN: 5397321040620

Overview

DELL Pro Precision 5 16S PW516260. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra X9, Processor model: 388H. Display diagonal: 40.6 cm (16"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Mobile network generation: 5G. Operating system installed: Windows 11 Pro. Product colour: Black

Specifications

Performance

Motherboard chipset: Intel SoC
Accelerometer: Yes
Hall sensor: Yes

Storage

Storage: 1 TB
Total storage capacity: 1000 GB
Storage media: SSD
Total SSDs capacity: 1000 GB
Number of SSDs installed: 1
SSD capacity: 1000 GB
SSD interface: PCI Express 5.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Display

Screen size: 16"
Display diagonal: 16"
Display resolution: 1920 x 1200 pixels
Touchscreen: No
HD type: Full HD+
Panel type: IPS
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 400 cd/m²
Pixel density: 141.5 ppi
RGB colour space: NTSC
Colour gamut: 45 %
Display response rise/fall: 35 ms
Maximum refresh rate: 60 Hz

Design

Weight: 1.9 kg
Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium

Audio

Audio chip: Cirrus Logic CS42L45
Number of built-in speakers: 2
Speaker power: 2.5 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution (numeric): 2.07 MP
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Video capturing speed: 30 fps
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter

Memory

Internal memory: 64 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: LPCAMM2
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Memory data transfer rate: 8533 MT/s

Network

Mobile network generation: 5G
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
Mobile network connection: Yes
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max): 5000 Mbit/s
WLAN controller model: Intel Wi-Fi 7 BE211
WLAN controller manufacturer: Intel
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Bluetooth: Yes

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc B390
Ray tracing acceleration: Yes

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra X9
Processor generation: Intel Core Ultra (Series 3)
Processor model: 388H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.1 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.6 GHz

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes
PowerShare: Yes
Number of USB ports with PowerShare support: 1

Neural processor unit (NPU)

Copilot+ PC: Yes
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: OpenVINO,Windows ML,ONNX RT,WebNN
NPU performance up to: 50 TOPs
GPU performance up to: 122 TOPs
