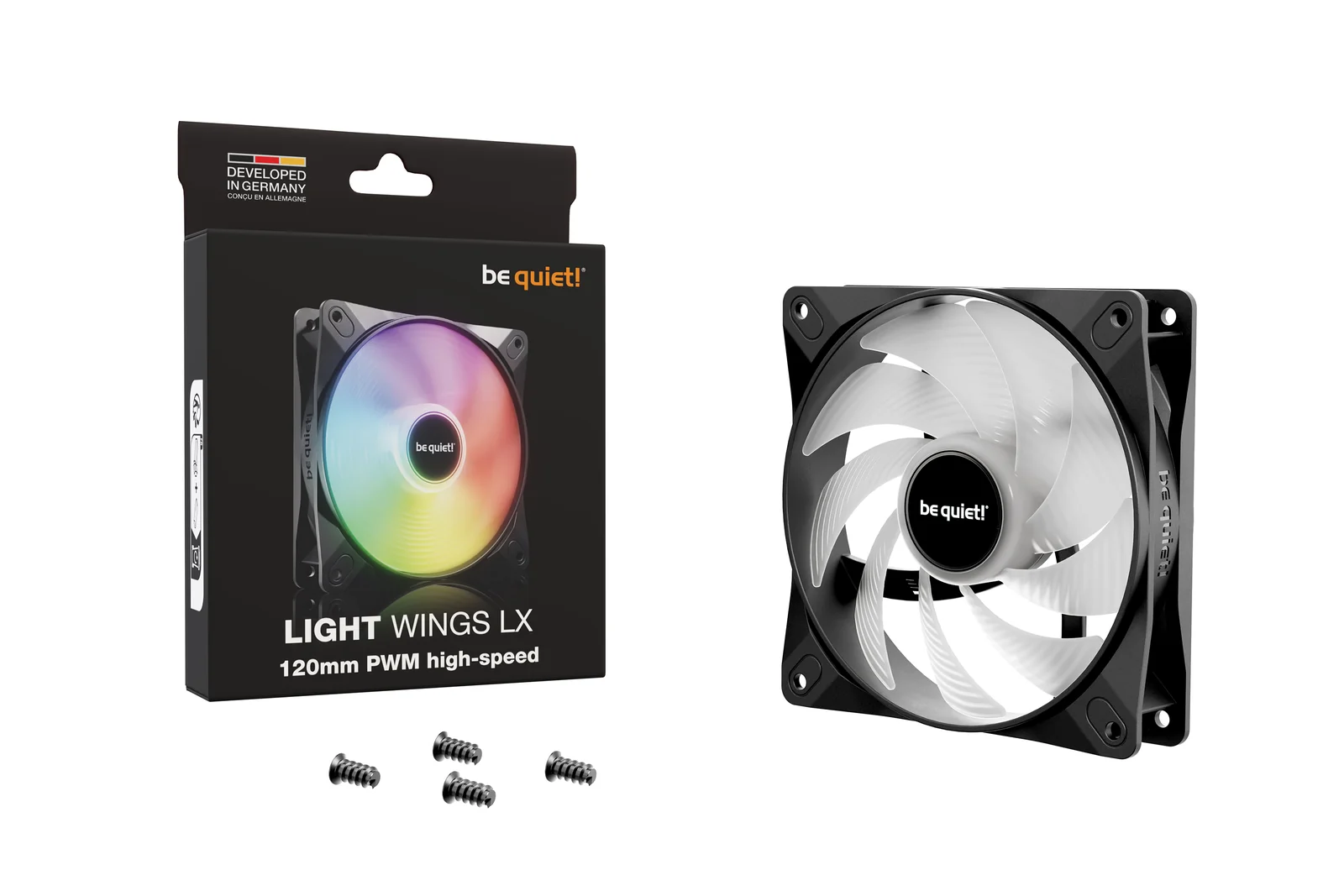

be quiet! LIGHT WINGS LX 120mm PWM high-speed
Model LIGHT WINGS LX 120mm PWM high-speed
Overview
Great performance and impressive lighting The Light Wings LX 120mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Specifications
Performance
- Suitable location
- Computer case
- Type
- Fan
- Fan diameter
- 120 mm
- Rotational speed (max)
- 2100 RPM
- Noise level (high speed)
- 30.9 dB
- Maximum airflow
- 61.8 cfm
- Airflow
- 105.1 m³/h
- Maximum air pressure
- 2.51 mmH2O
- Pulse-width modulation (PWM) support
- Yes
- Bearing type
- Rifle bearing
- Quantity per pack
- 1 pc(s)
- Mean time between failures (MTBF)
- 60000 h
Design
- Product colour
- Black
- Number of fans
- 1 fan(s)
- Number of fan blades
- 9
- Illumination LED
- Yes
- Number of LEDs
- 16
- Illumination colour
- Multi
- LED connector type
- 3-pin
- Fan connector
- 4-pin
- Display type
- Not applicable
Power
- Voltage
- 5 - 13.2 V
- Fan power consumption
- 5.4 W
- Maximum current
- 0.45 A
- Fan voltage
- 12 V
- Fan current
- 0.15 A
Logistics data
- Products per shipping (inner) case
- 60 pc(s)
- Shipping (inner) case width
- 319 mm
- Shipping (inner) case length
- 433 mm
- Shipping (inner) case height
- 290 mm
- Shipping (inner) case gross weight
- 10950 g
Packaging content
- Package type
- Box
- Screws included
- Yes
- Number of screws
- 4
Technical details
- Warranty period
- 3 year(s)
- Compliance certificates
- CE,RoHS,UKCA,WEEE
Weight & dimensions
- Width
- 120 mm
- Depth
- 25 mm
- Height
- 120 mm
- Weight
- 135 g
- Cable length
- 0.5 m
- Package width
- 122 mm
- Package depth
- 164 mm
- Package height
- 27 mm
- Package weight
- 210 g
