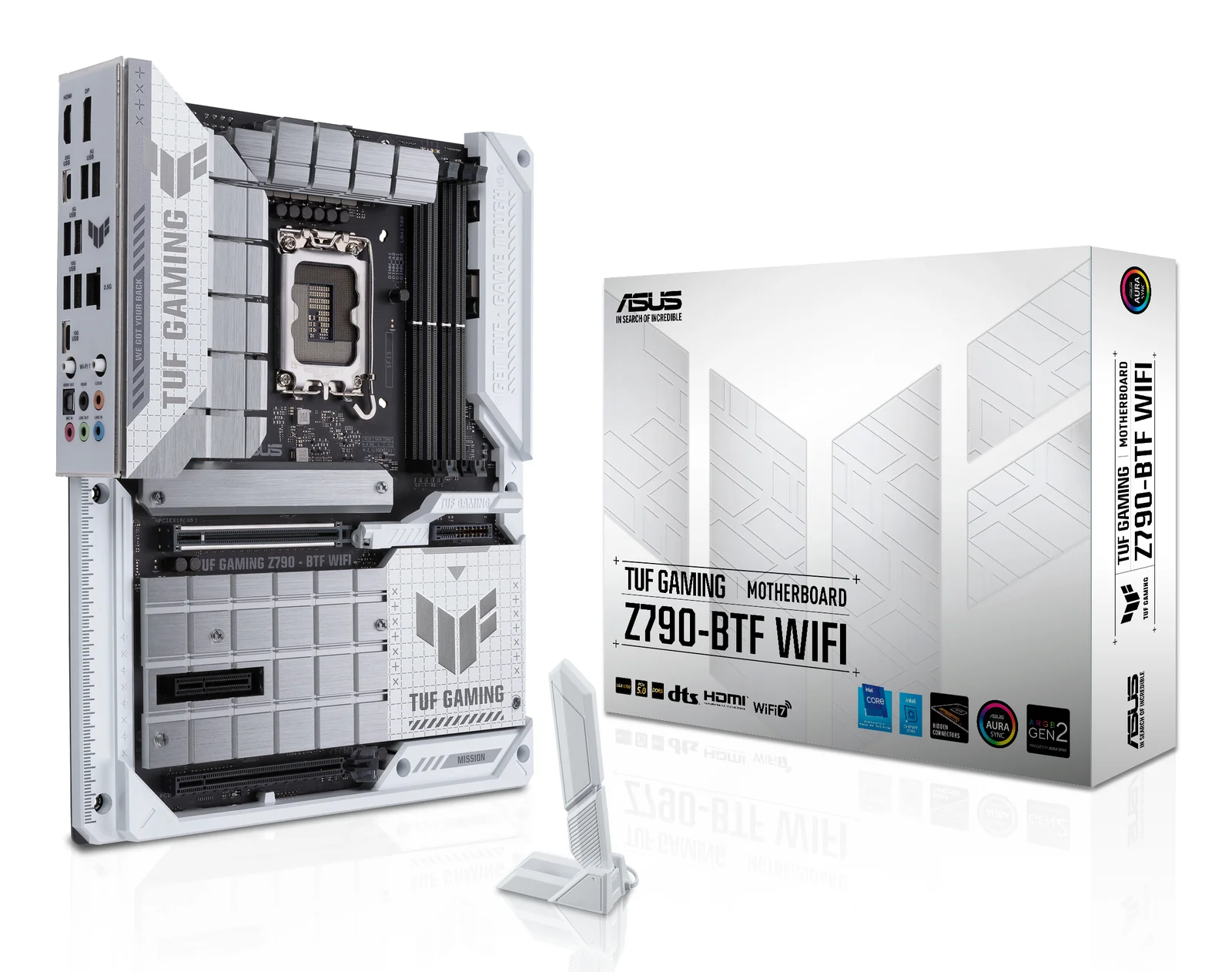

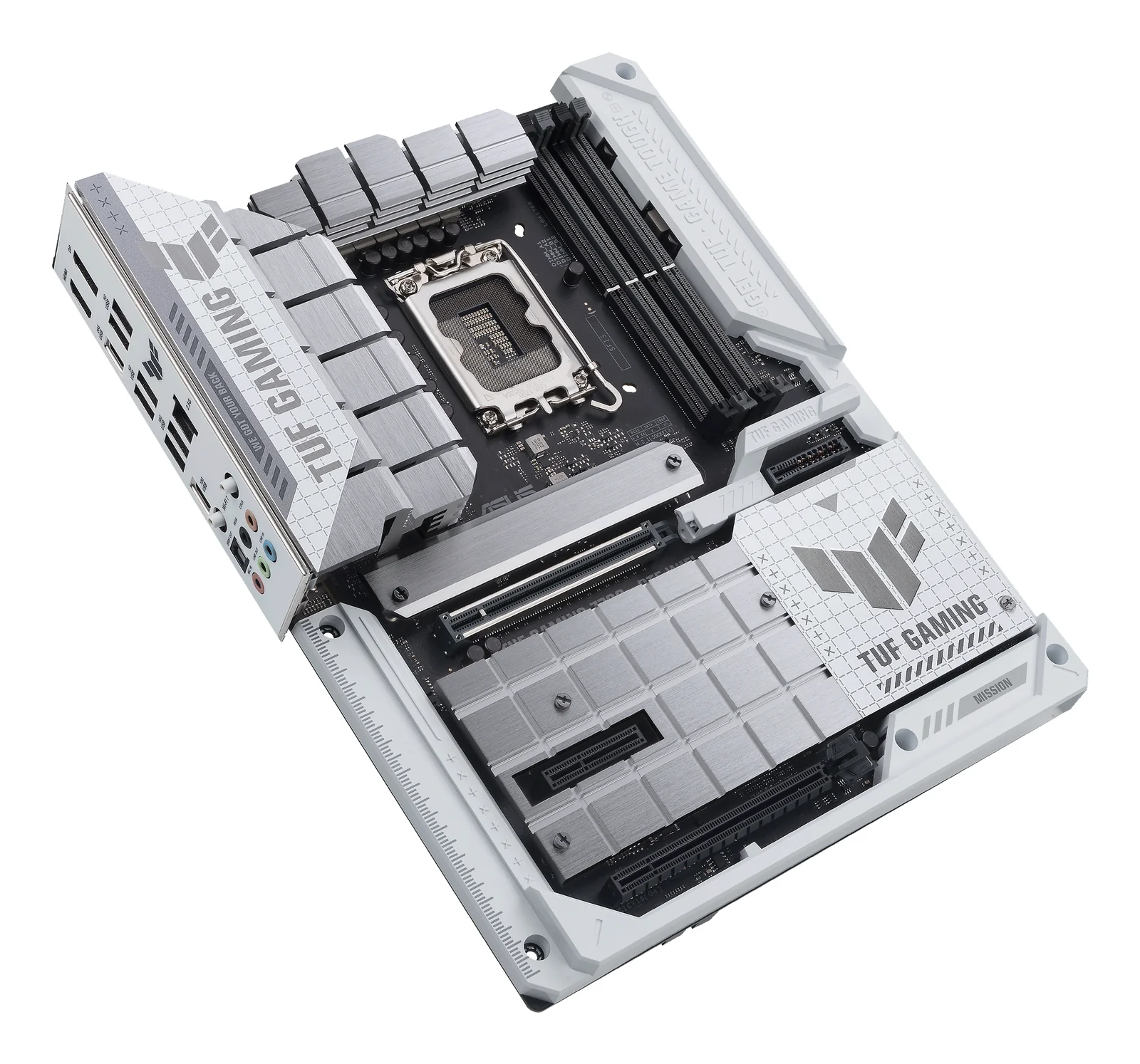

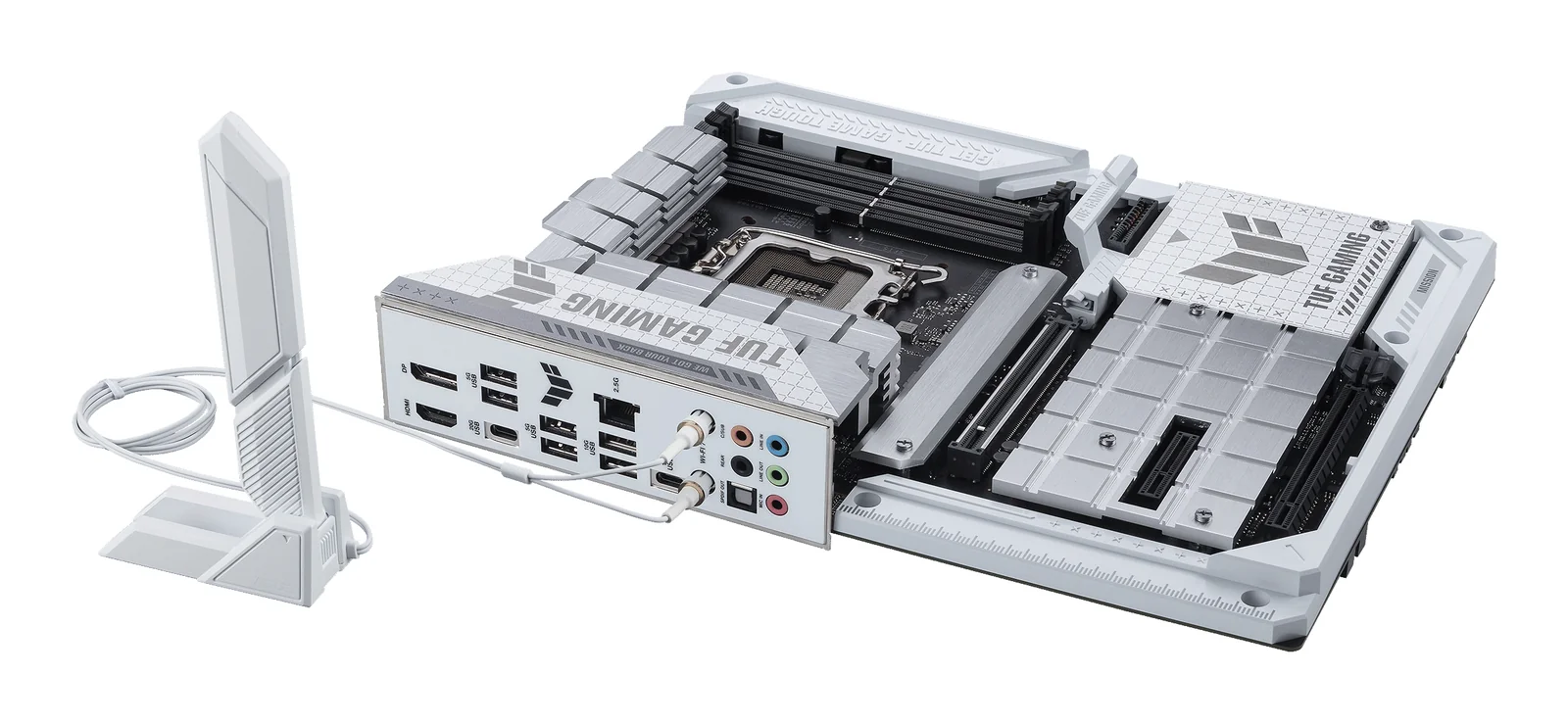

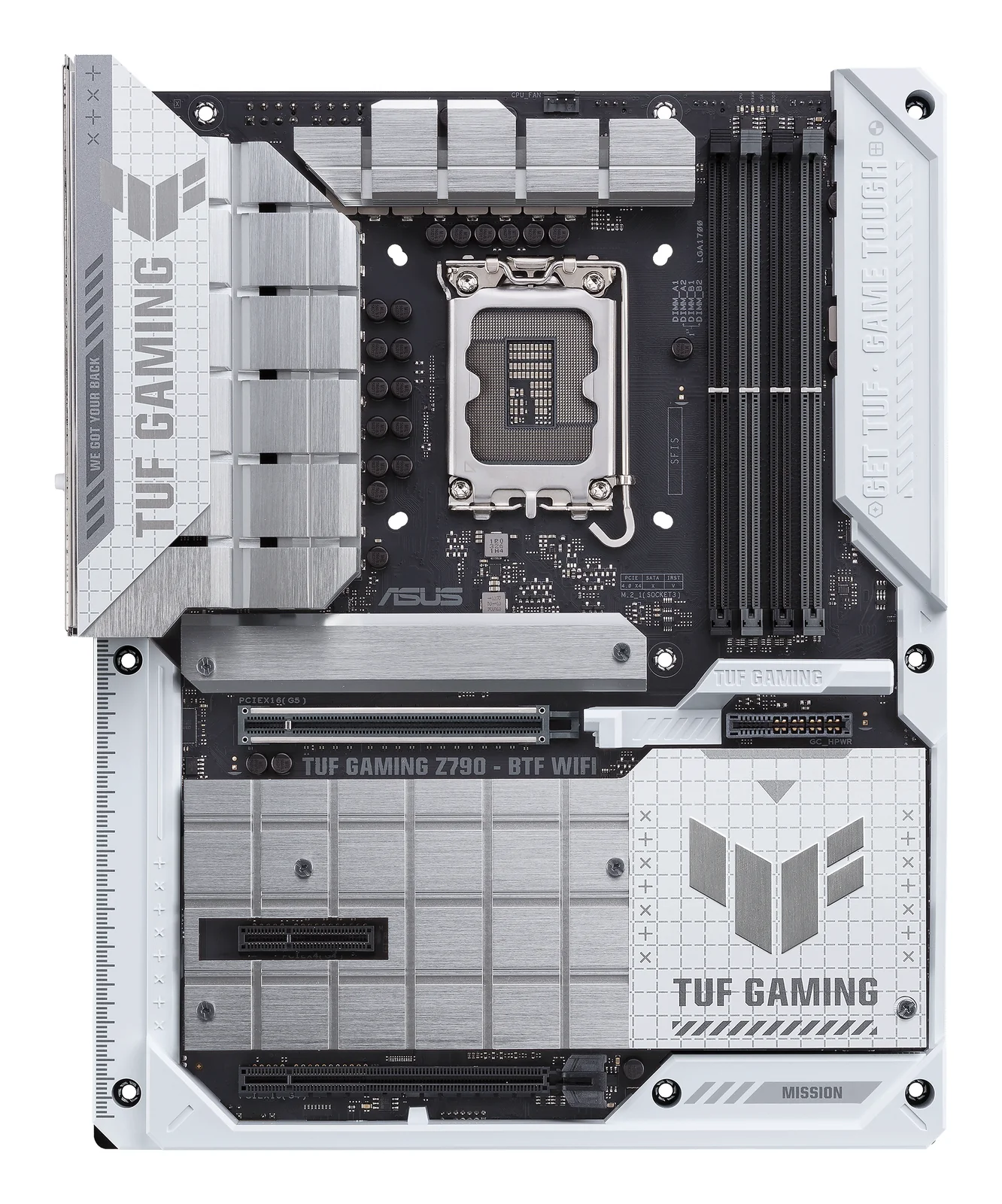

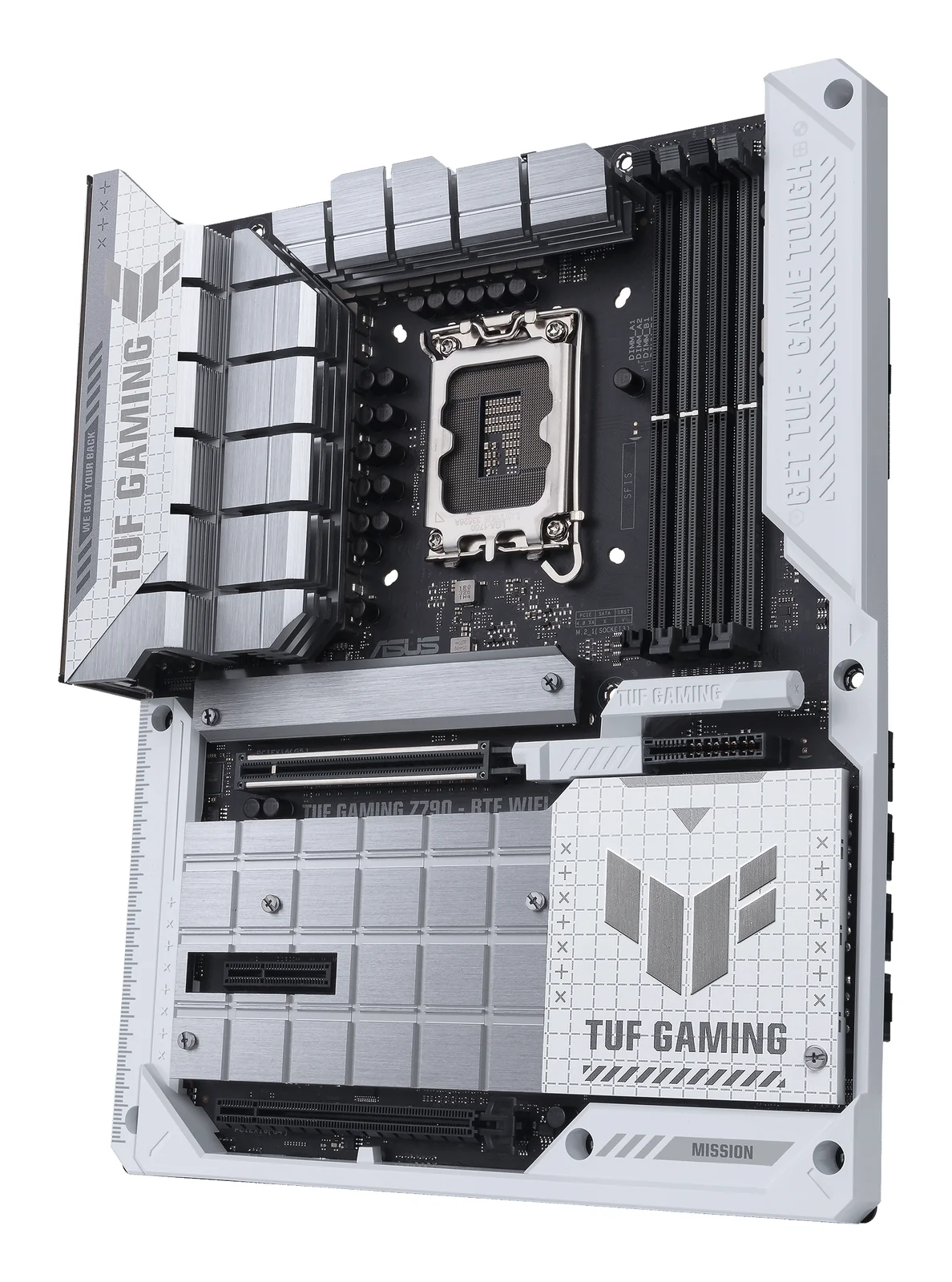

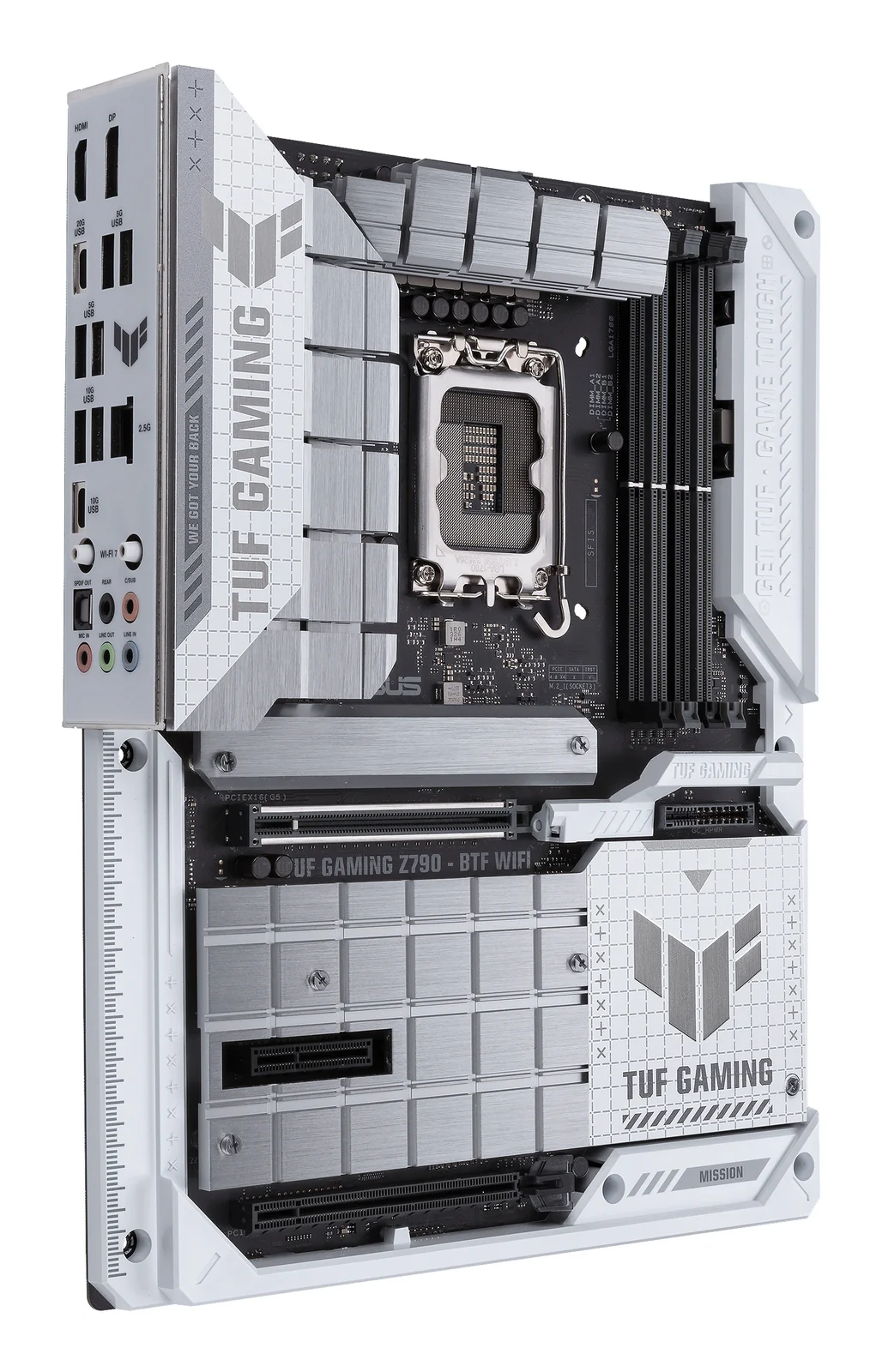

ASUS TUF GAMING Z790-BTF WIFI
Model TUF GAMING Z790-BTF WIFI
Overview

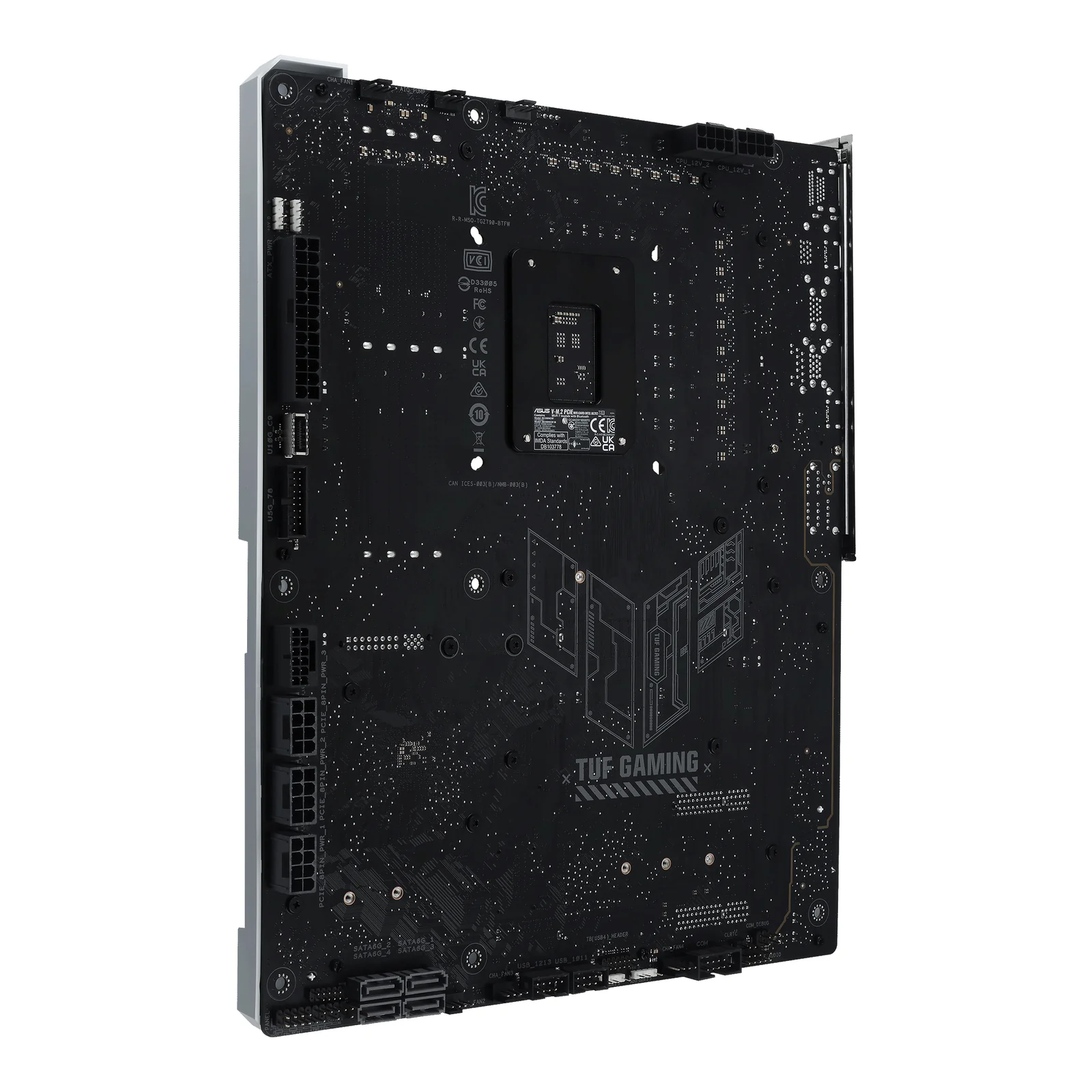

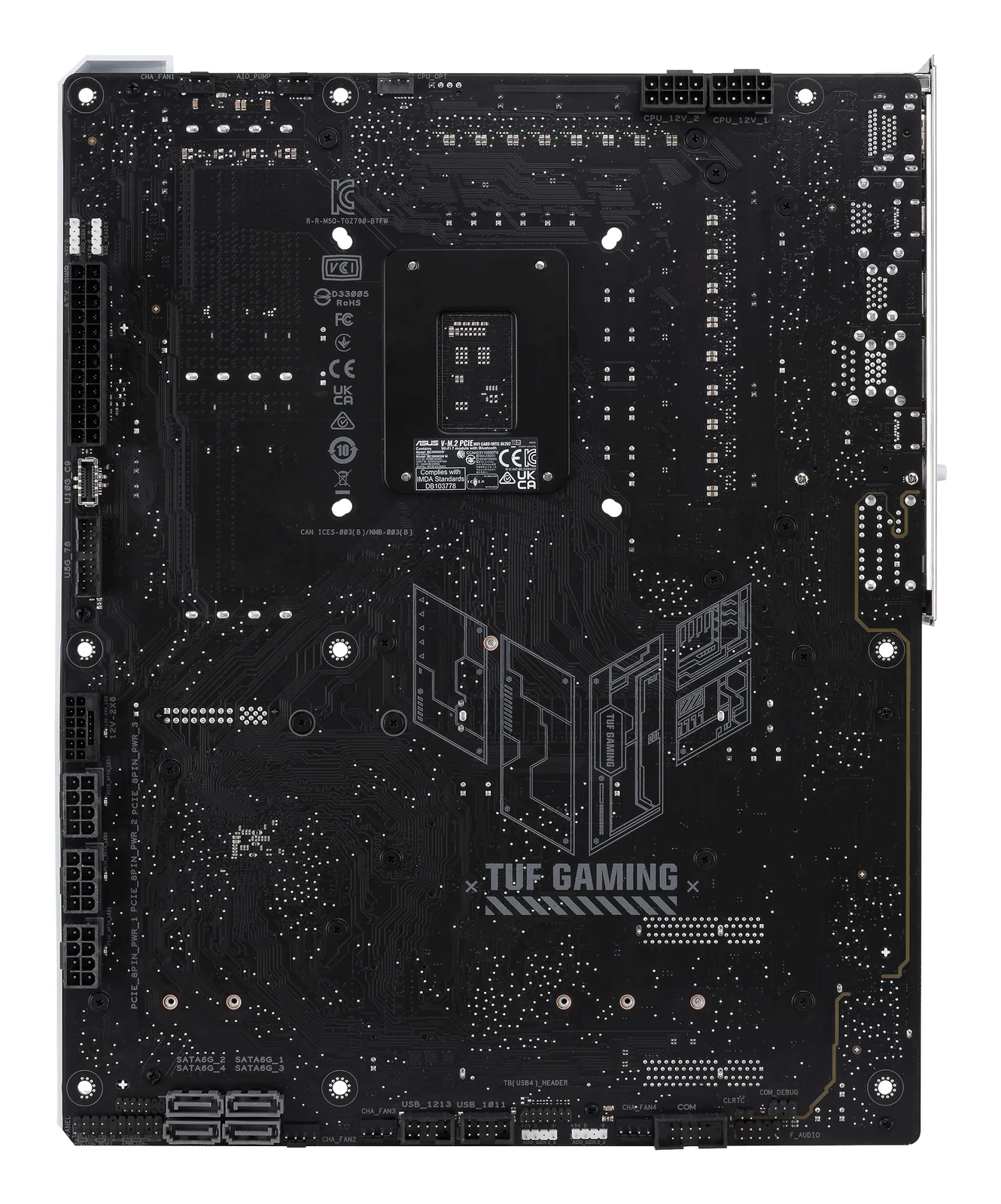

TUF GAMING Z790-BTF WIFI TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. EASY PC DIY The TUF GAMING BTF lineup allows easy cable management and setup for builders of all levels. The ASUS BTF Alliance ecosystem confirms compatibility, while Armoury Crate displays hardware information and makes it easy to adjust Fan Xpert 4, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. Optimized Cable Management The hidden-connector design can be ideal for a first-time builder, because it allows easier cable management and also enhances a build’s appearance by presenting neat and clean internals. ROCK-SOLID PERFORMANCE With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING Z790-BTF WIFI is the perfect foundation for your next Intel battle rig.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 192 Mbit
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Supported memory clock speed (max)
- 7200 MHz
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z790
- Audio output channels
- 7.1 channels
- Product colour
- Aluminium,Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64,Windows 11
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
- Supported processor sockets
- LGA 1700
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 4
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- Thunderbolt headers
- 1
- 12V power connector
- Yes
- RGB LED pin header
- Yes
Packaging data
- Package width
- 370 mm
- Package depth
- 312 mm
- Package height
- 108 mm
- Package weight
- 3953 g
Expansion slots
- PCI Express x4 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 4
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm

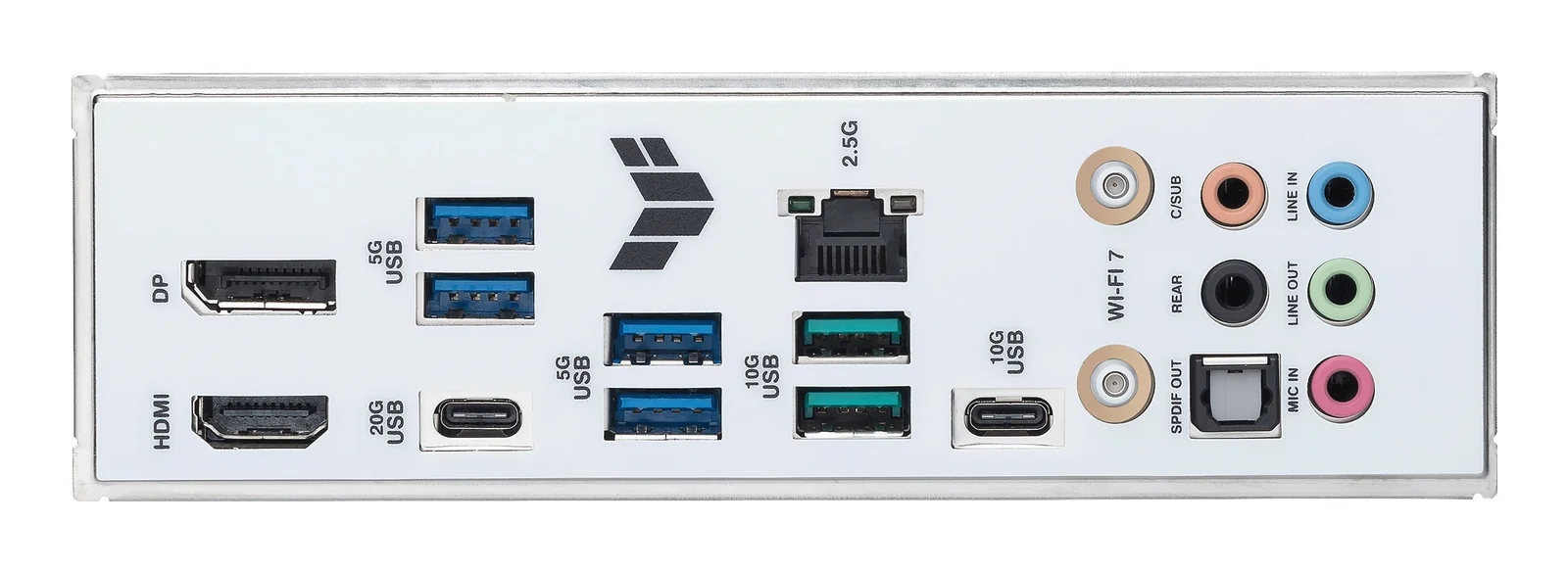

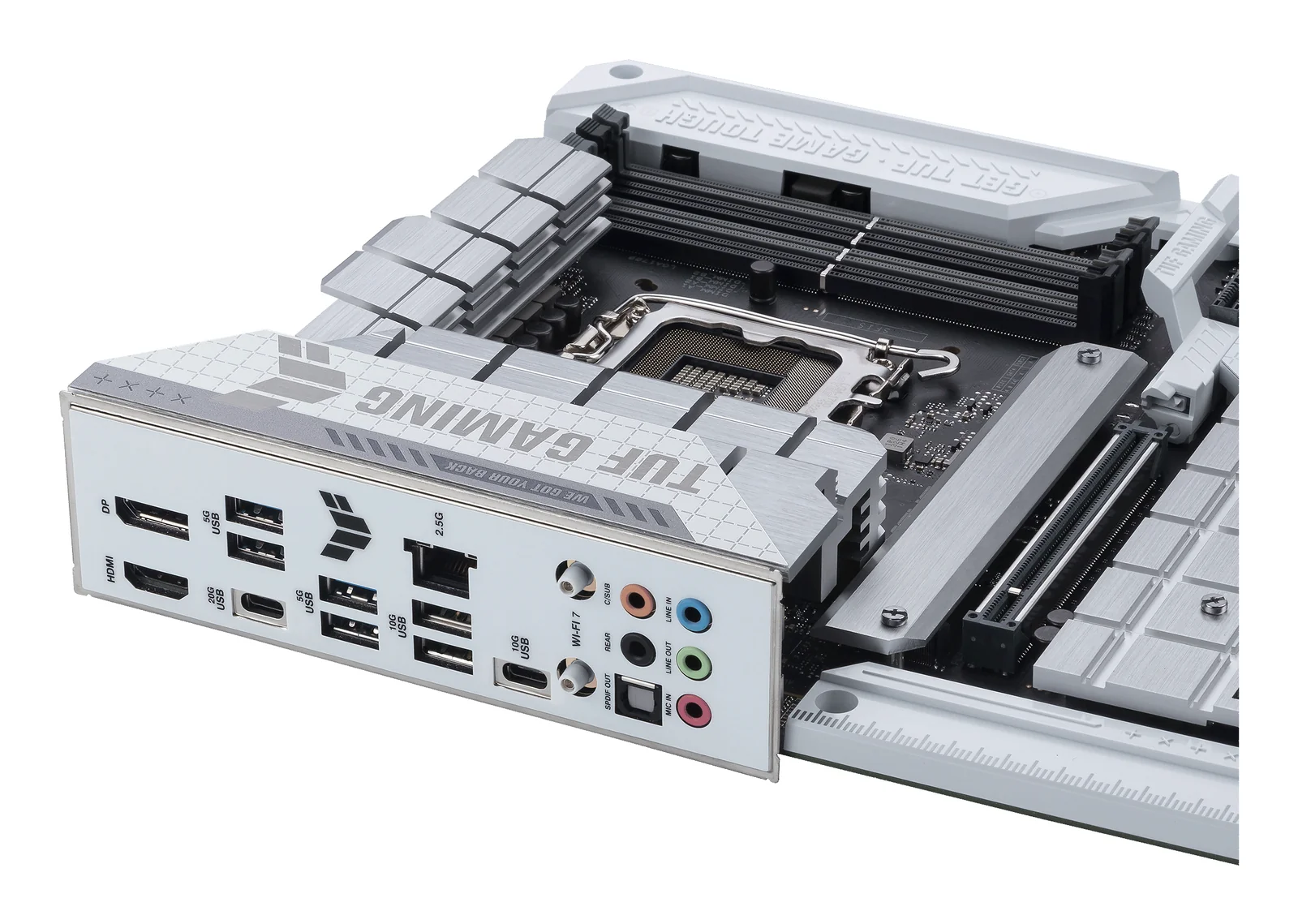

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- WiFi-AP antenna jack
- 1
