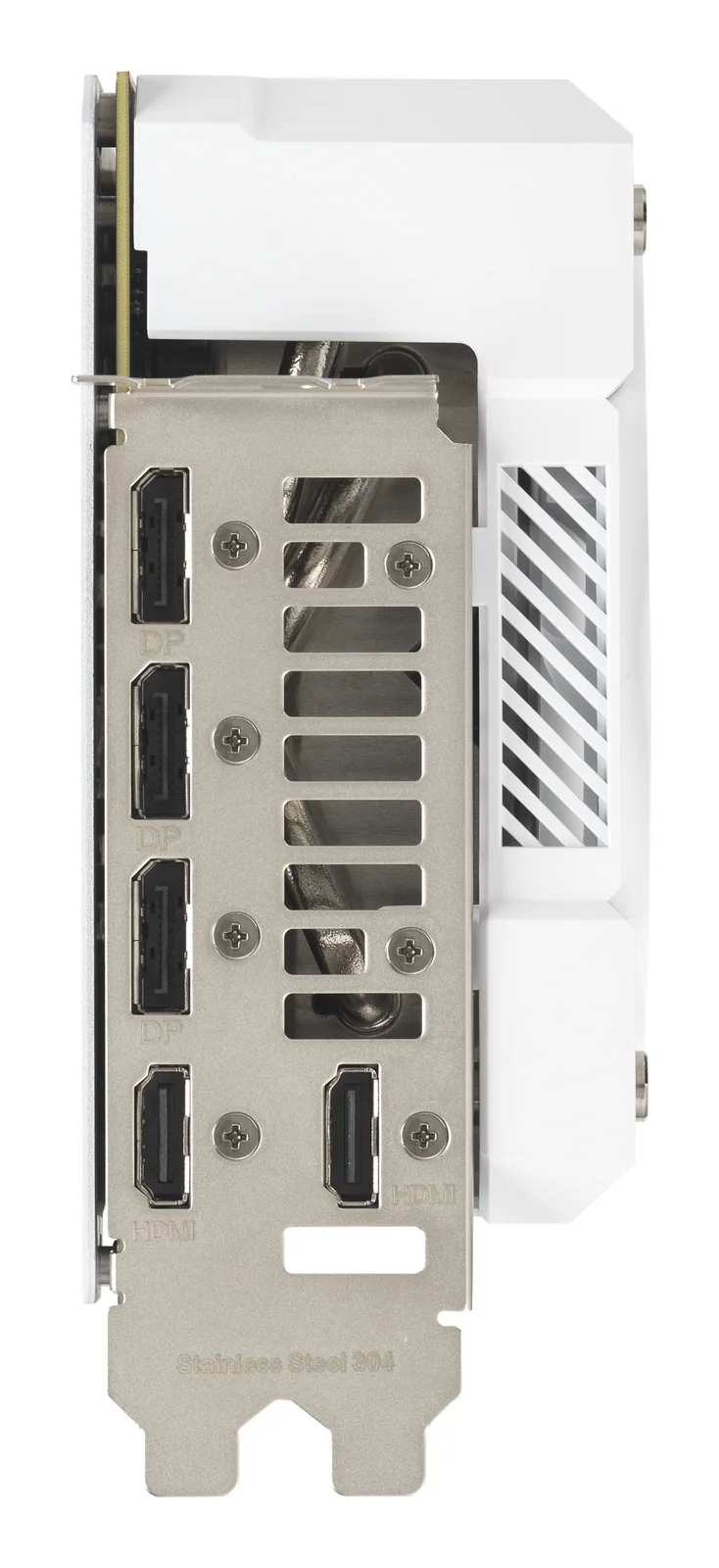

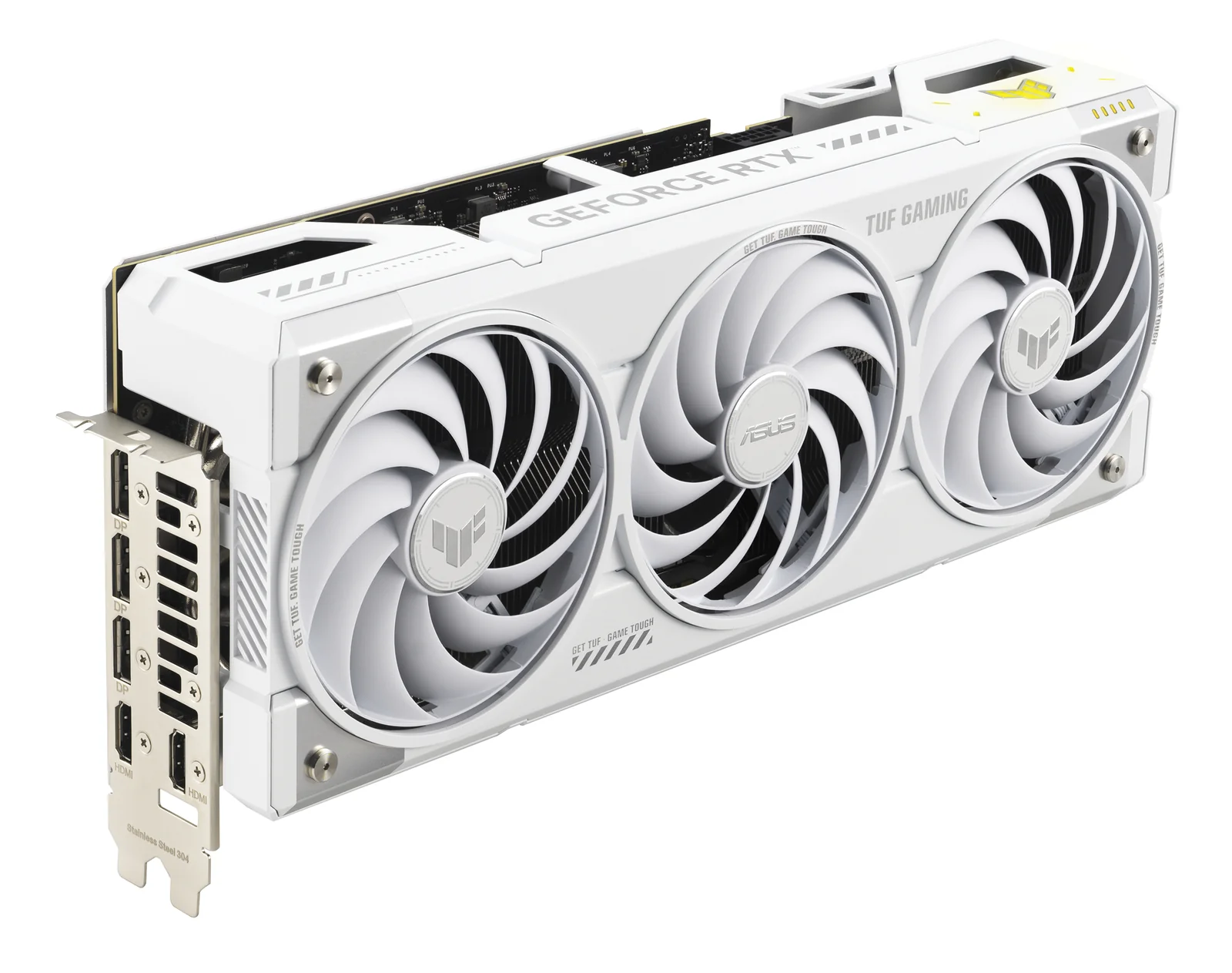

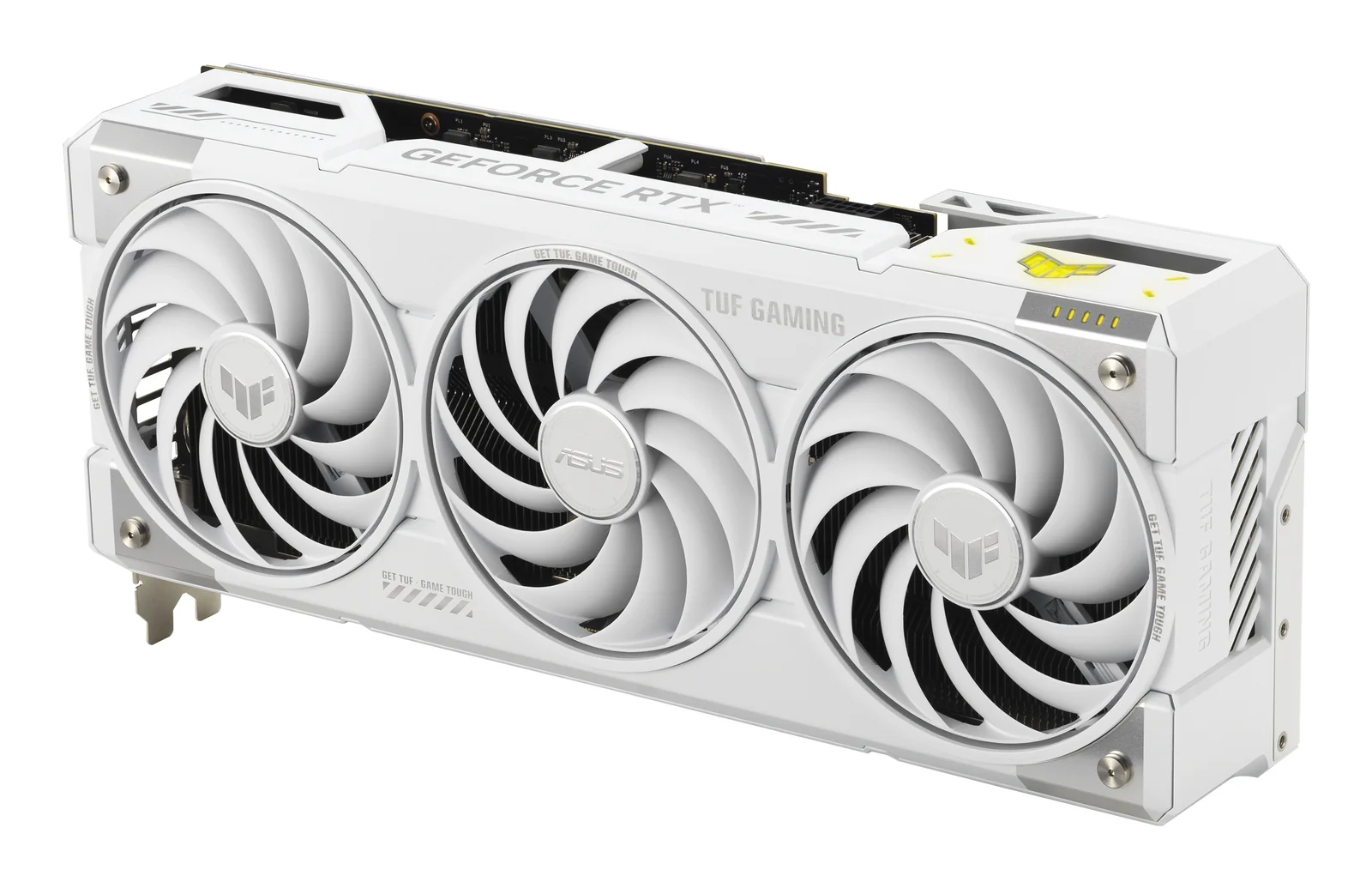

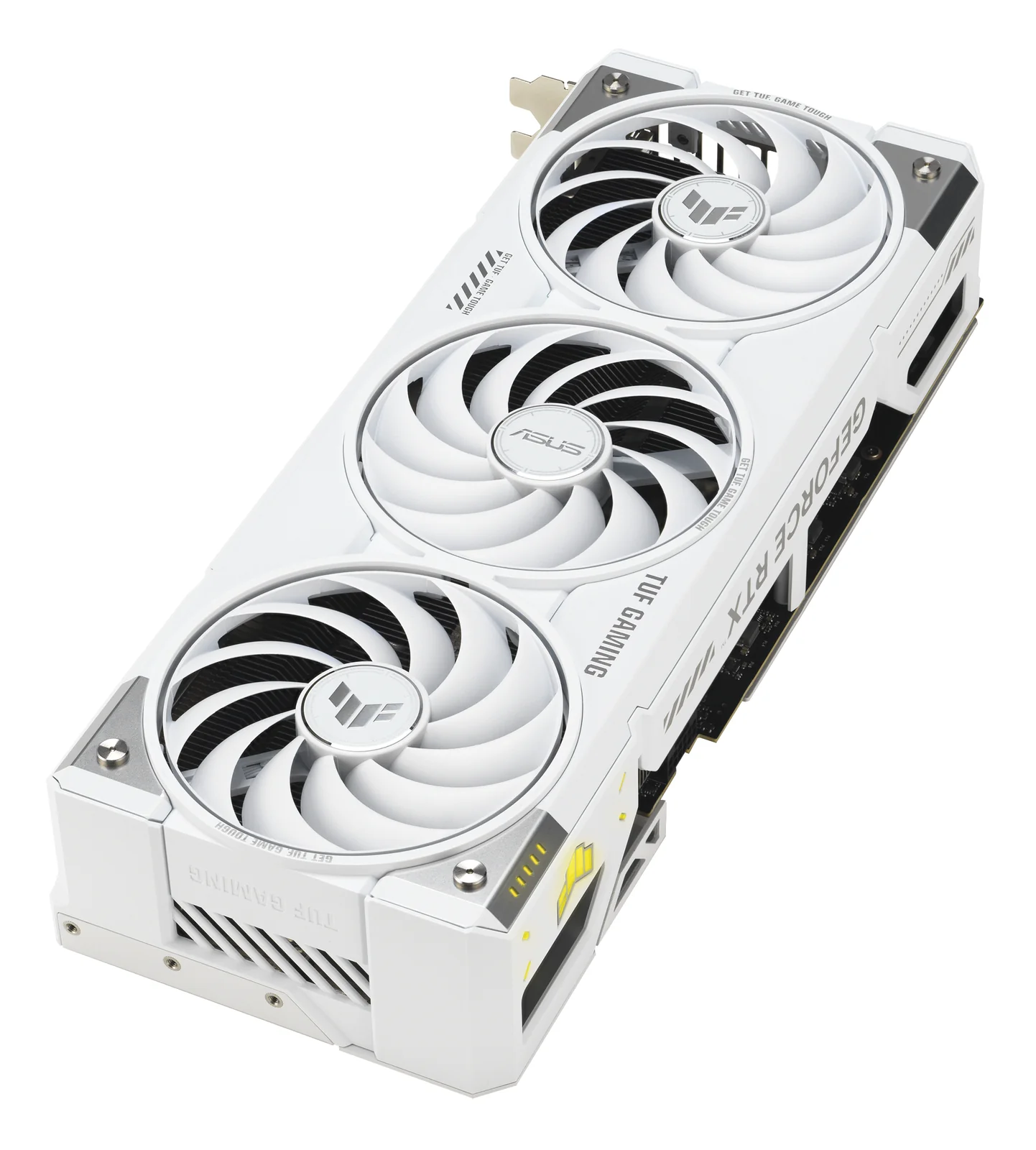

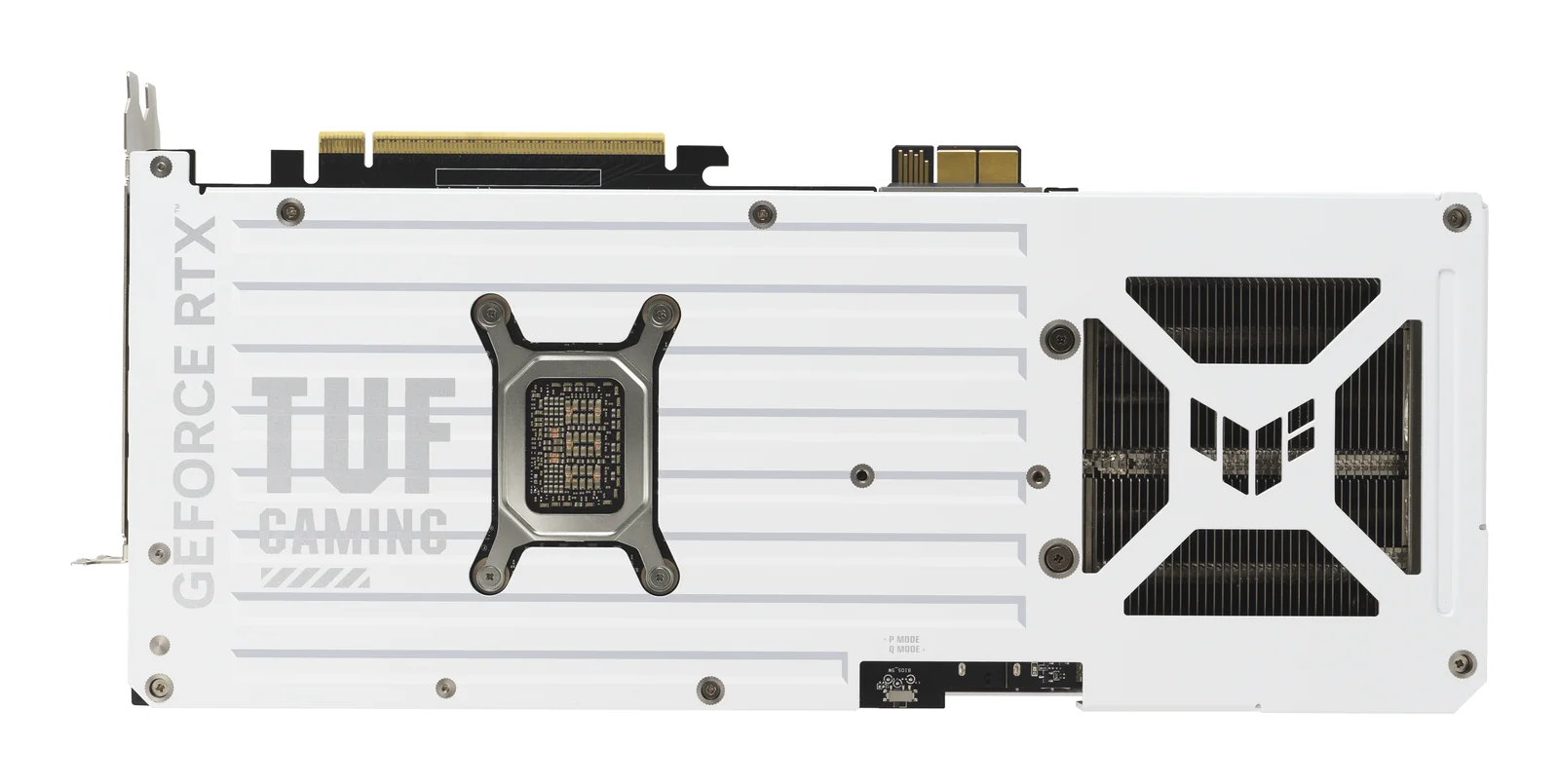

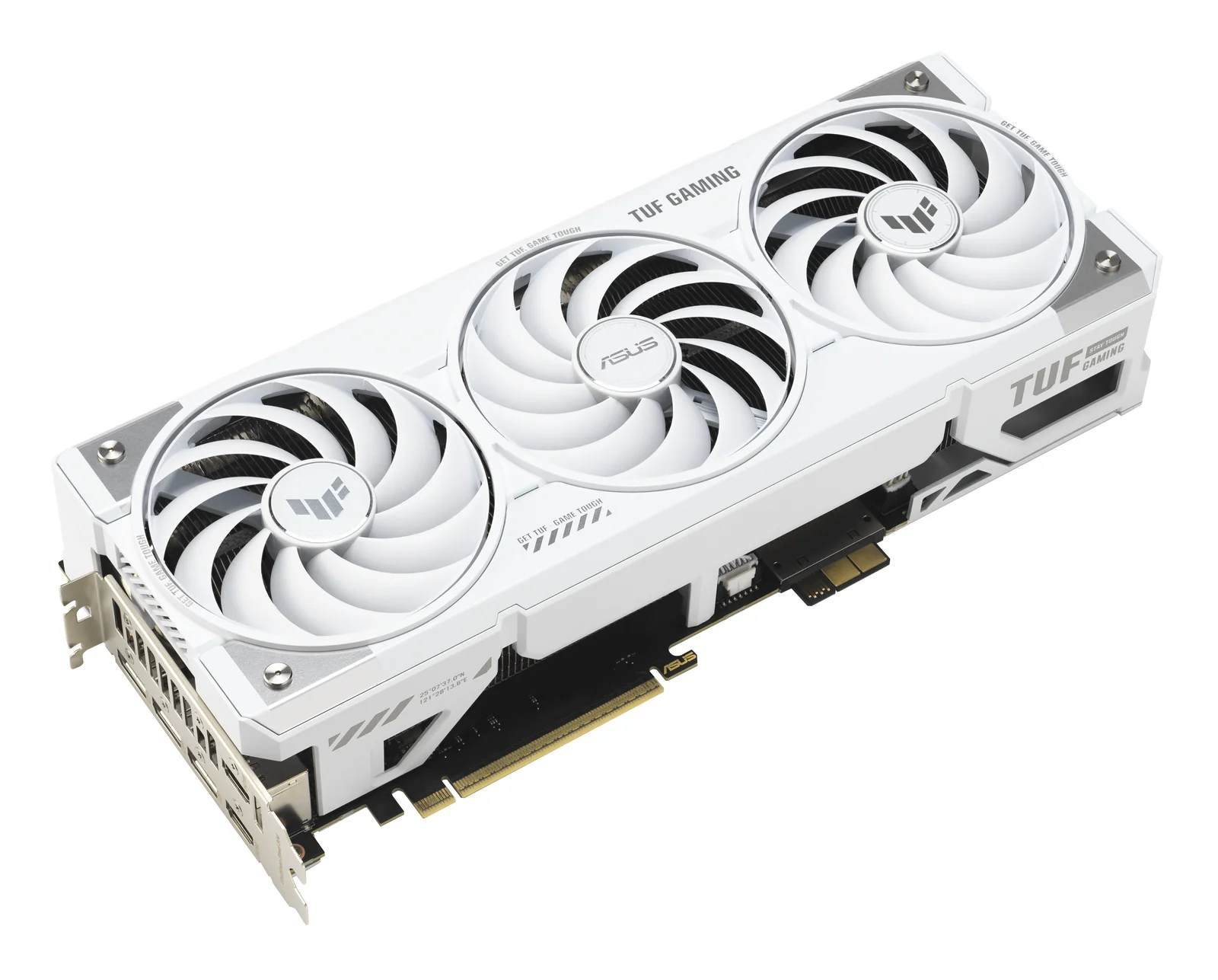

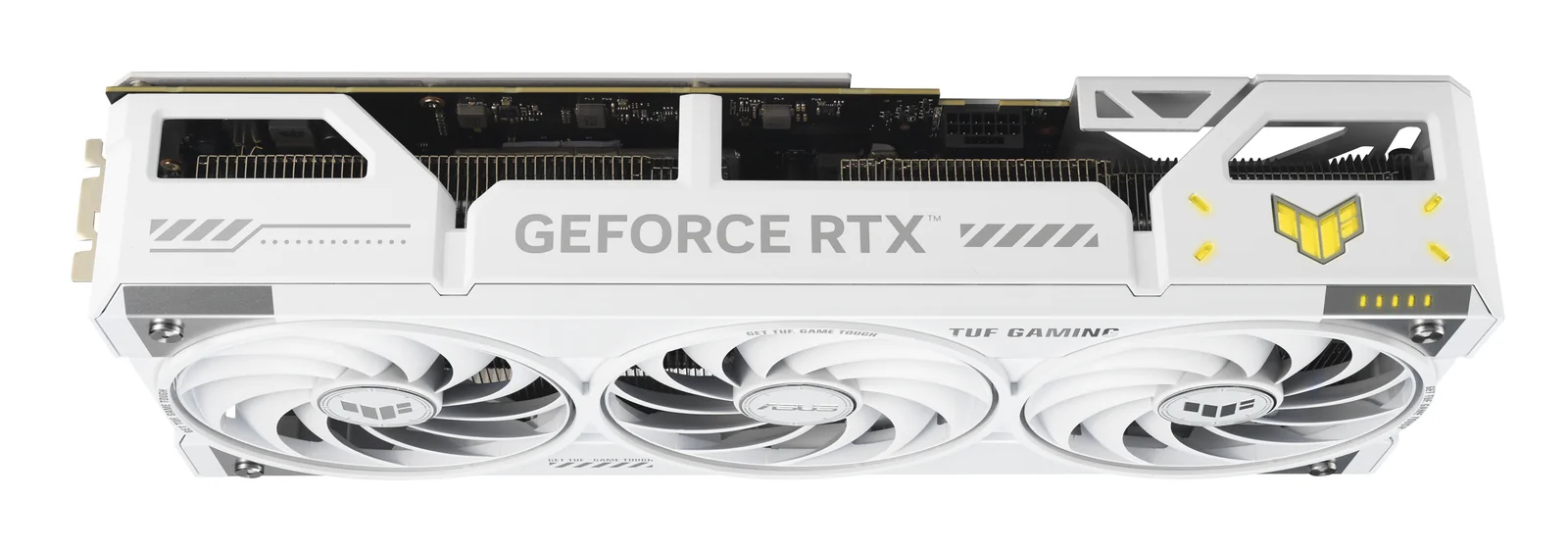

ASUS TUF Gaming TUF-RTX5070TI-O16G-BTF-WHITE
Model TUF-RTX5070TI-O16G-BTF-WHITE
Overview
ASUS TUF Gaming GeForce RTX™ 5070 Ti 16GB GDDR7 BTF White OC Edition with military-grade components, lower temps, and enhanced durability
Specifications
Performance
- TV tuner integrated
- No
- OpenGL version
- 4.6
- HDCP
- Yes
- HDCP version
- 2.3
- Dual Link DVI
- No
- NPU performance up to
- 1406 TOPs
- Overclocked (OC) edition
- Yes
Design
- Cooling type
- Active
- Cooling technology
- ASUS Axial-tech
- Number of fans
- 3 fan(s)
- Form factor
- Full-Height/Full-Length (FH/FL)
- Bracket height
- Full-Height (FH)
- Number of slots
- 3.125
- Illumination
- Yes
- Illumination colour
- Multi
- SFF ready
- No
- Product colour
- White
Power
- Minimum system power supply
- 850 W
- Supplementary power connectors
- 1x 16-pin
Memory
- Discrete graphics card memory
- 16 GB
- Graphics card memory type
- GDDR7
- Memory bus
- 256 bit
- Data transfer rate
- 28 Gbit/s
Processor
- CUDA
- Yes
- CUDA cores
- 8960
- Graphics processor family
- NVIDIA
- Graphics processor
- GeForce RTX 5070 Ti
- Processor boost clock speed
- 2588 MHz
- Processor frequency (OC mode)
- 2610 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Maximum displays per videocard
- 4
Packaging data
- Package width
- 420 mm
- Package depth
- 226 mm
- Package height
- 87 mm
- Package weight
- 2460 g
- Package type
- Box

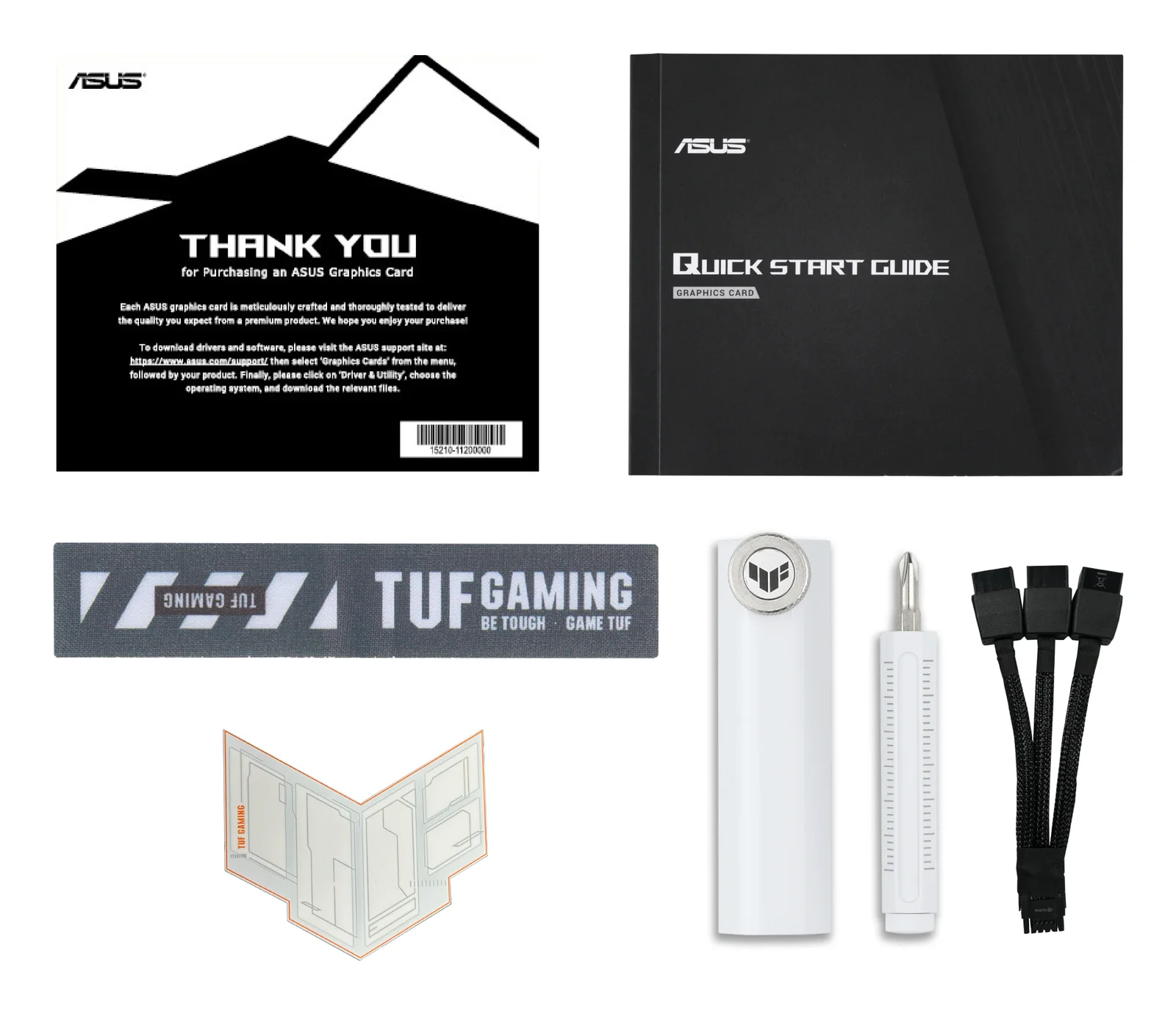

Packaging content
- Manual
- Yes
Ports & interfaces
- Interface type
- PCI Express 5.0
- HDMI ports quantity
- 2
- HDMI version
- 2.1b
- DisplayPorts quantity
- 3
- DisplayPort version
- 2.1b
Weight & dimensions
- Weight
- 1670 g
- Length
- 329 mm
- Depth
- 62.5 mm
- Height
- 140 mm
