ASUS

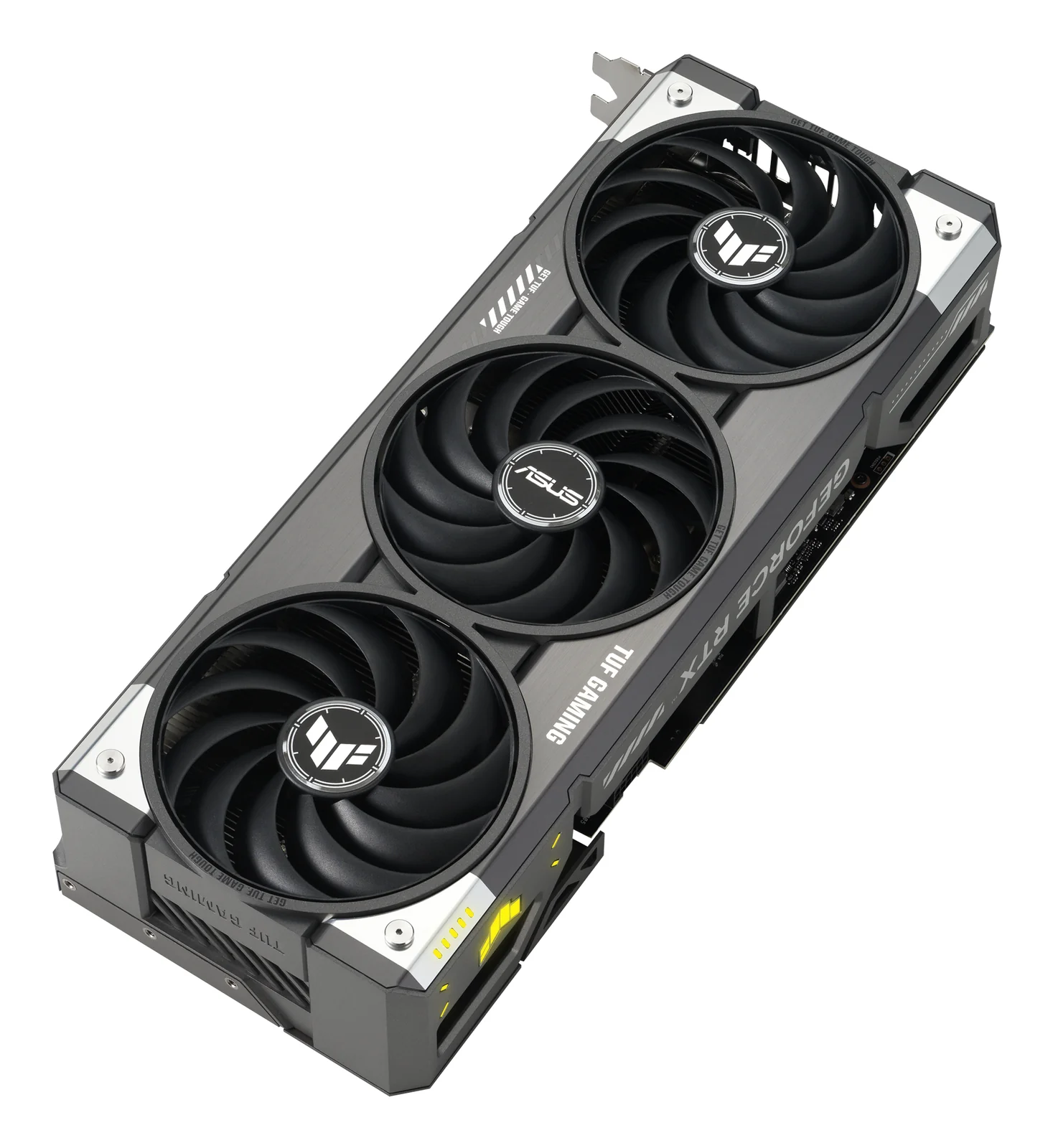

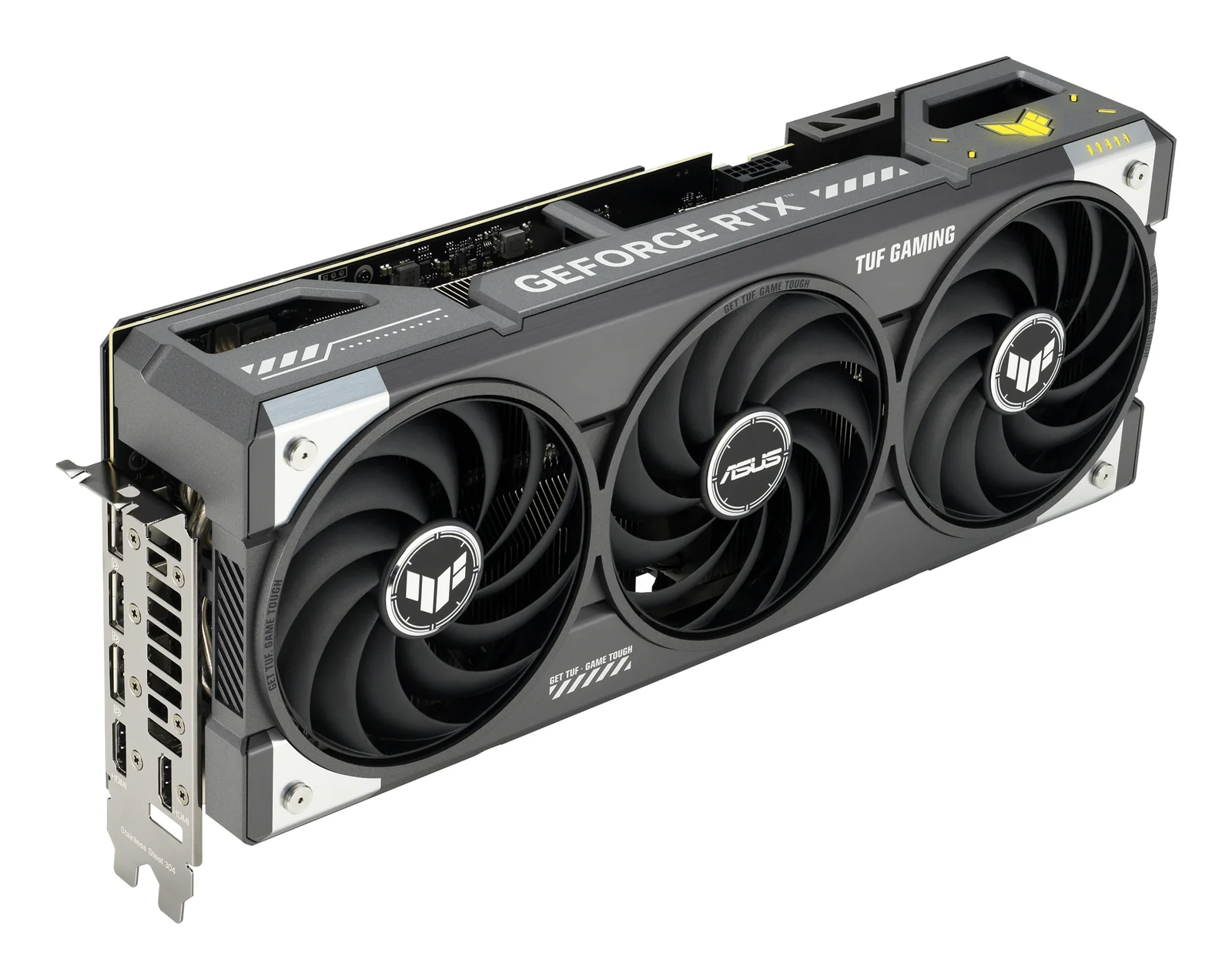

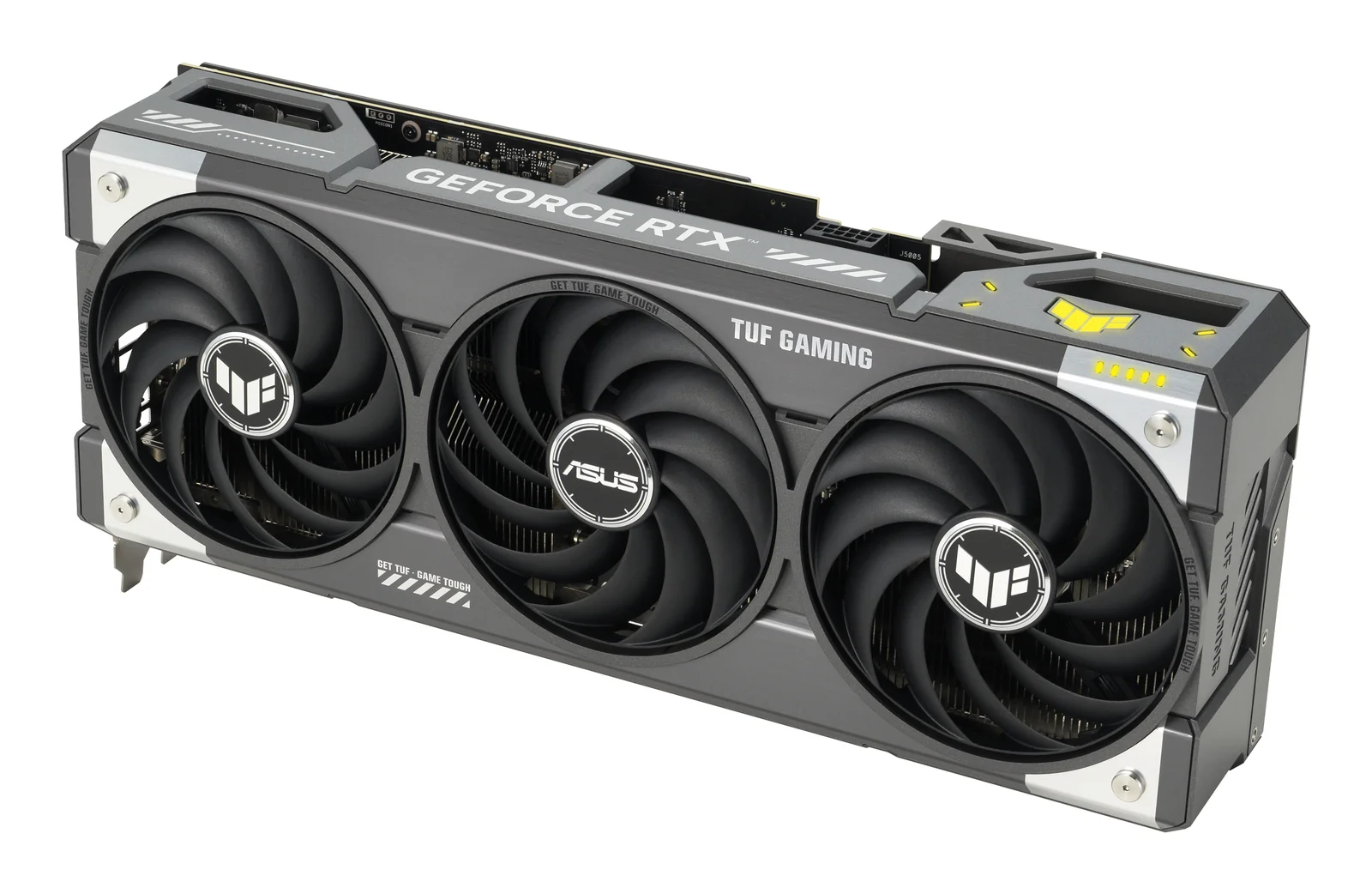

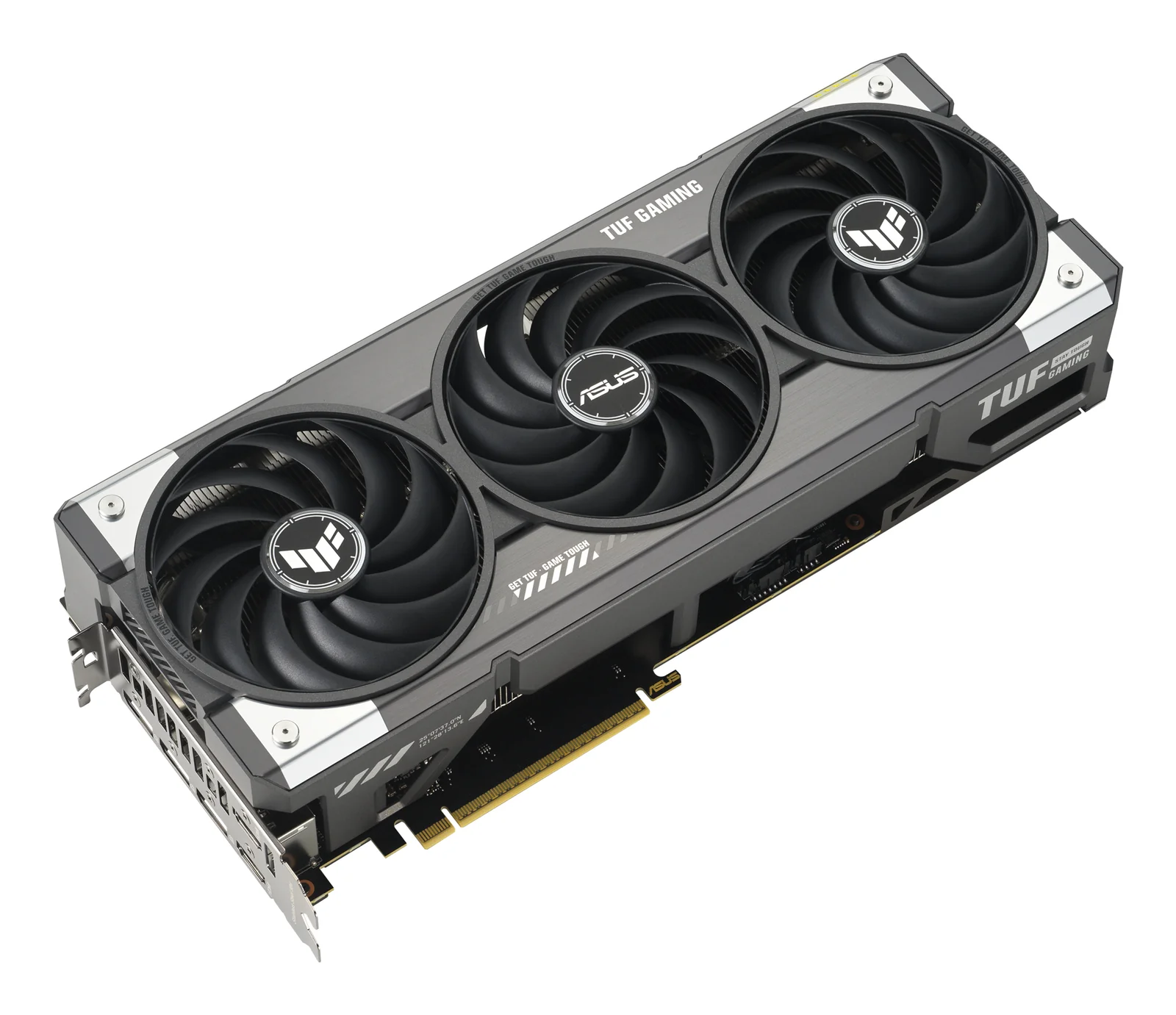

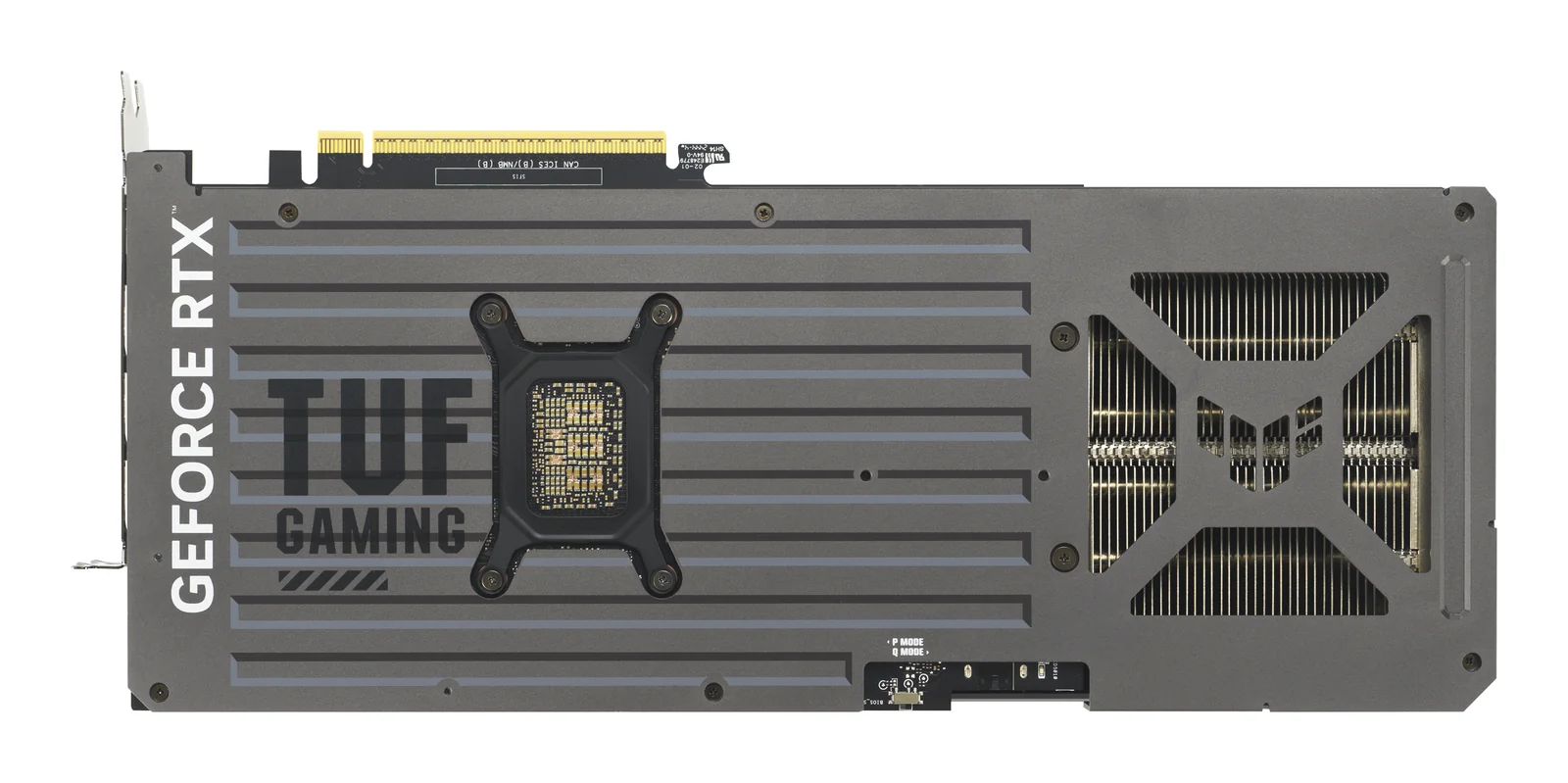

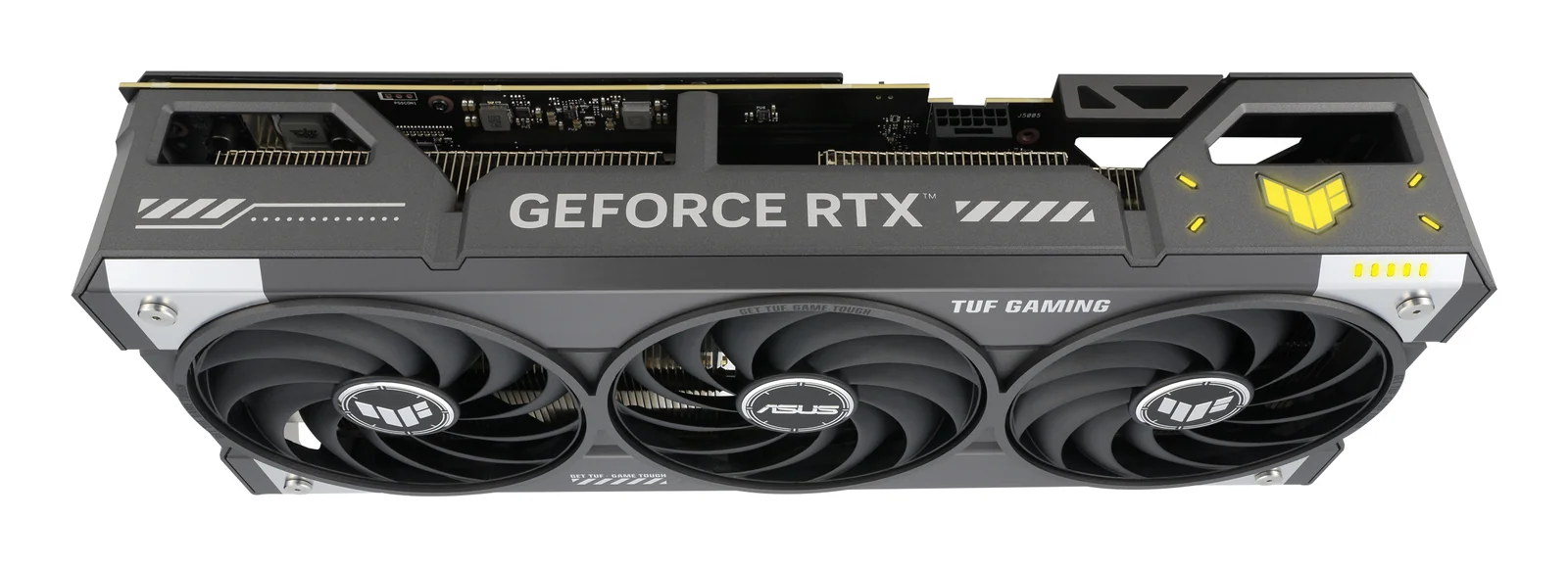

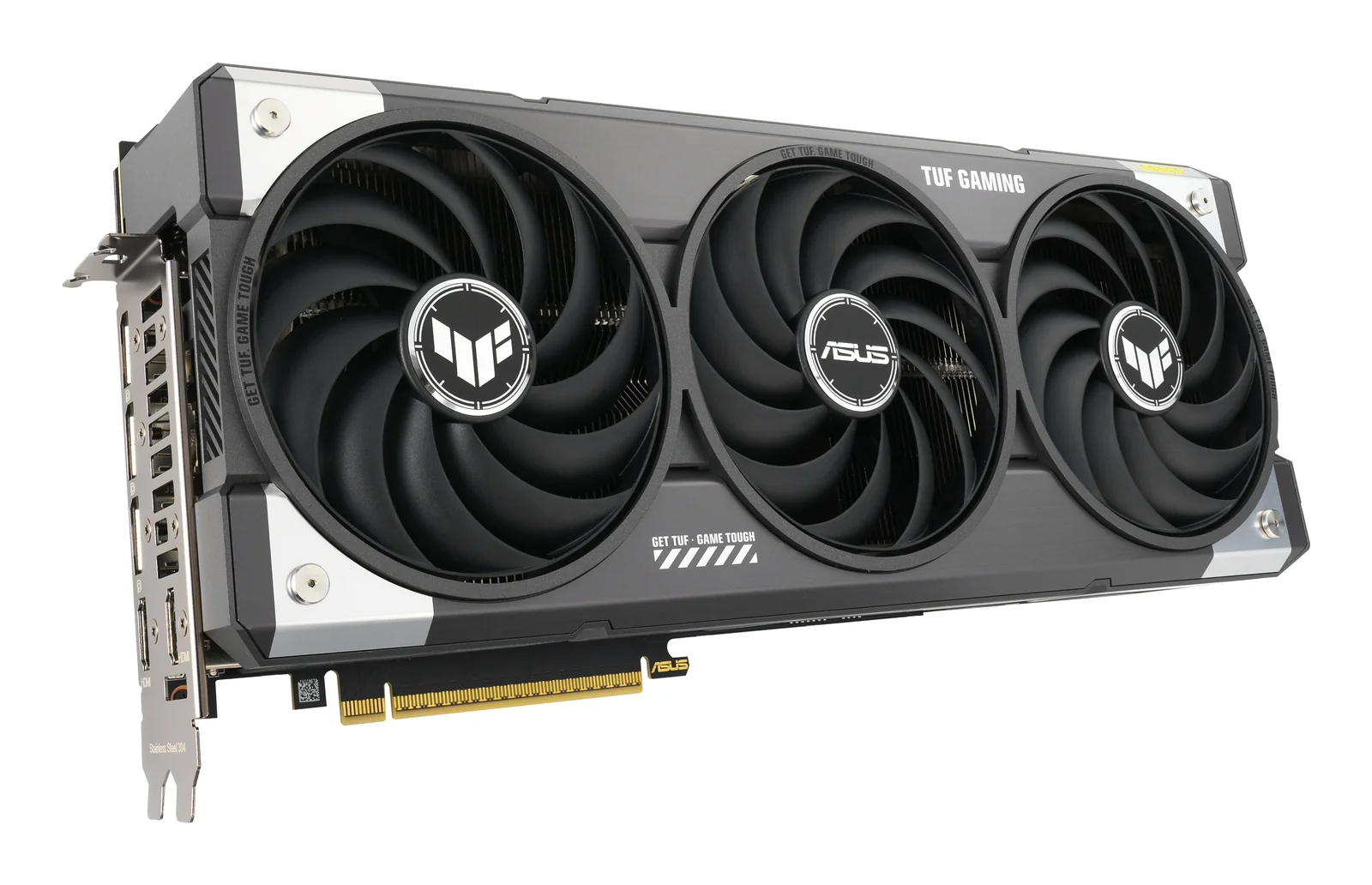

ASUS TUF Gaming TUF-RTX5070-O12G-GAMING

Model TUF-RTX5070-O12G-GAMING

Overview

Game TUF. Built to Last. ASUS TUF Gaming GeForce RTX™ 5070 NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance. TUF Chokes & MOSFETs Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability. TUF Capacitors TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors. Phase-Change GPU Thermal Pad By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads. Protective PCB Coating A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris. Dual-ball Fan Bearings Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling

Specifications

Performance

TV tuner integrated
No
OpenGL version
4.6
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
NPU performance up to
988 TOPs
Overclocked (OC) edition
Yes

Design

Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Bracket height
Full-Height (FH)
Number of slots
3.125
Illumination
Yes
Illumination colour
Multi
SFF ready
No
Product colour
Black,Grey

Power

Minimum system power supply
750 W
Supplementary power connectors
1x 16-pin

Memory

Discrete graphics card memory
12 GB
Graphics card memory type
GDDR7
Memory bus
192 bit
Data transfer rate
28 Gbit/s

Processor

CUDA
Yes
CUDA cores
6144
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5070
Processor boost clock speed
2610 MHz
Processor frequency (OC mode)
2640 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Maximum displays per videocard
4

Packaging data

Package width
420 mm
Package depth
226 mm
Package height
87 mm
Package weight
2327 g
Package type
Box

Packaging content

Manual
Yes

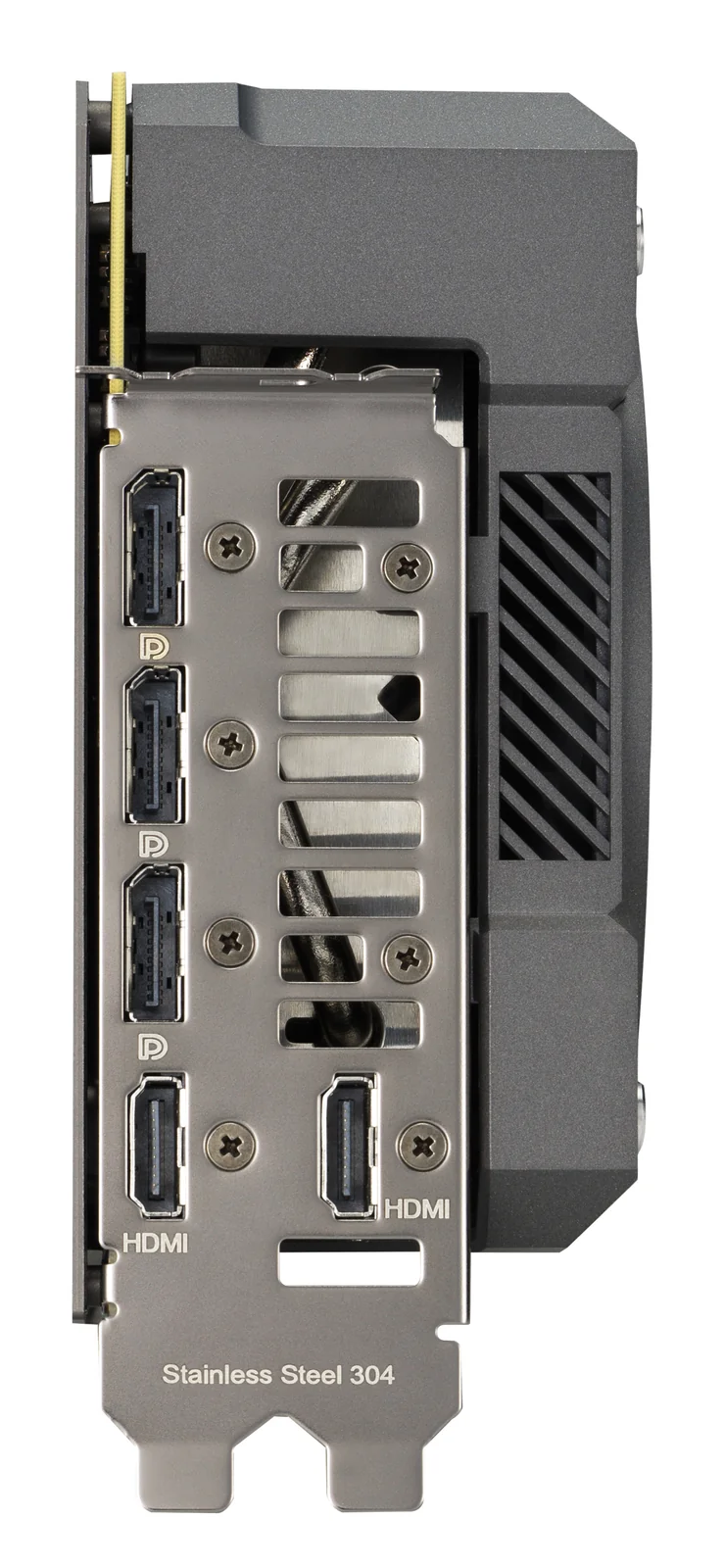

Ports & interfaces

Interface type
PCI Express 5.0
HDMI ports quantity
2
HDMI version
2.1b
DisplayPorts quantity
3
DisplayPort version
2.1b

Weight & dimensions

Weight
1533 g
Length
329 mm
Depth
62.5 mm
Height
140 mm
