ASUS

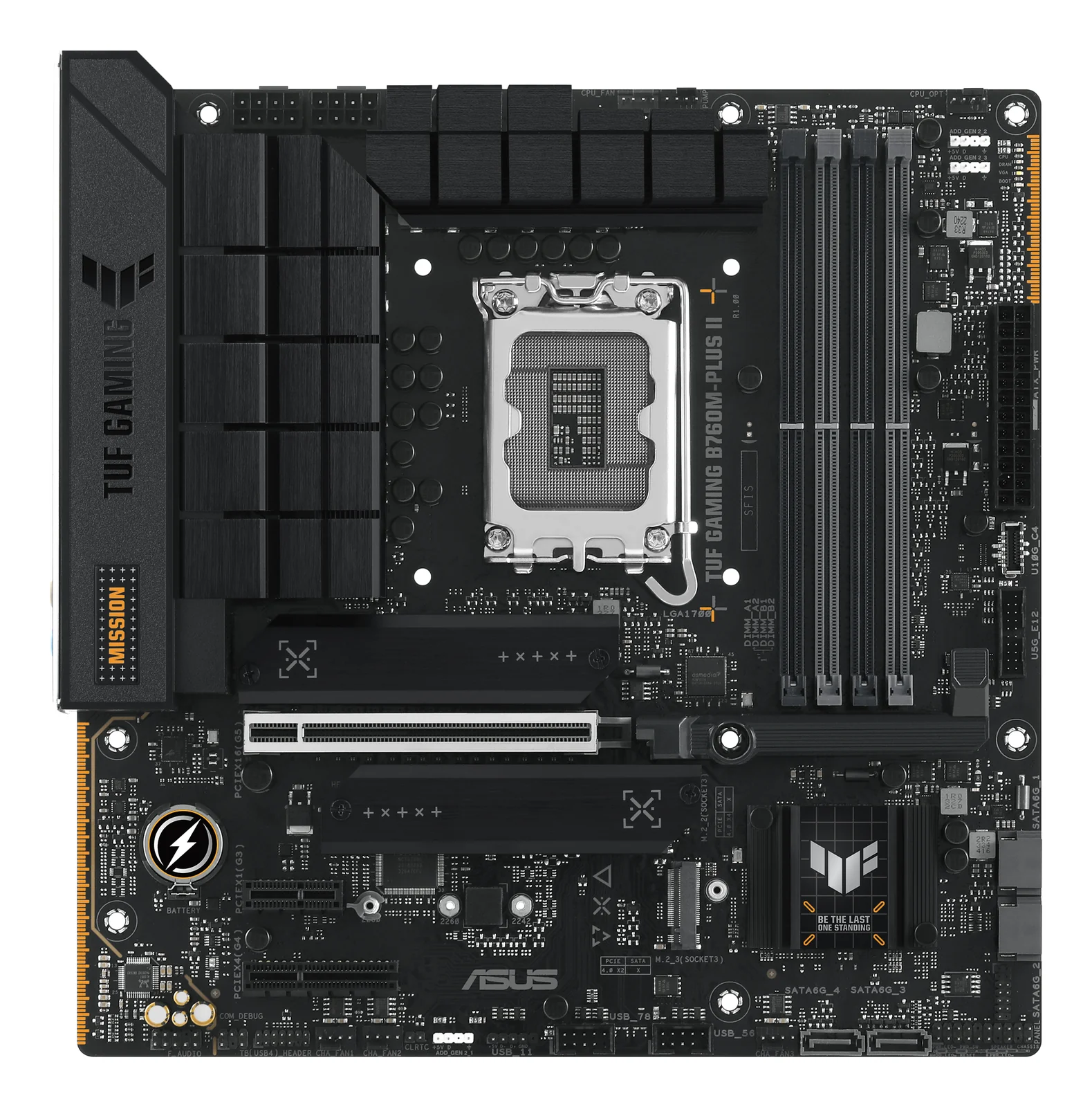

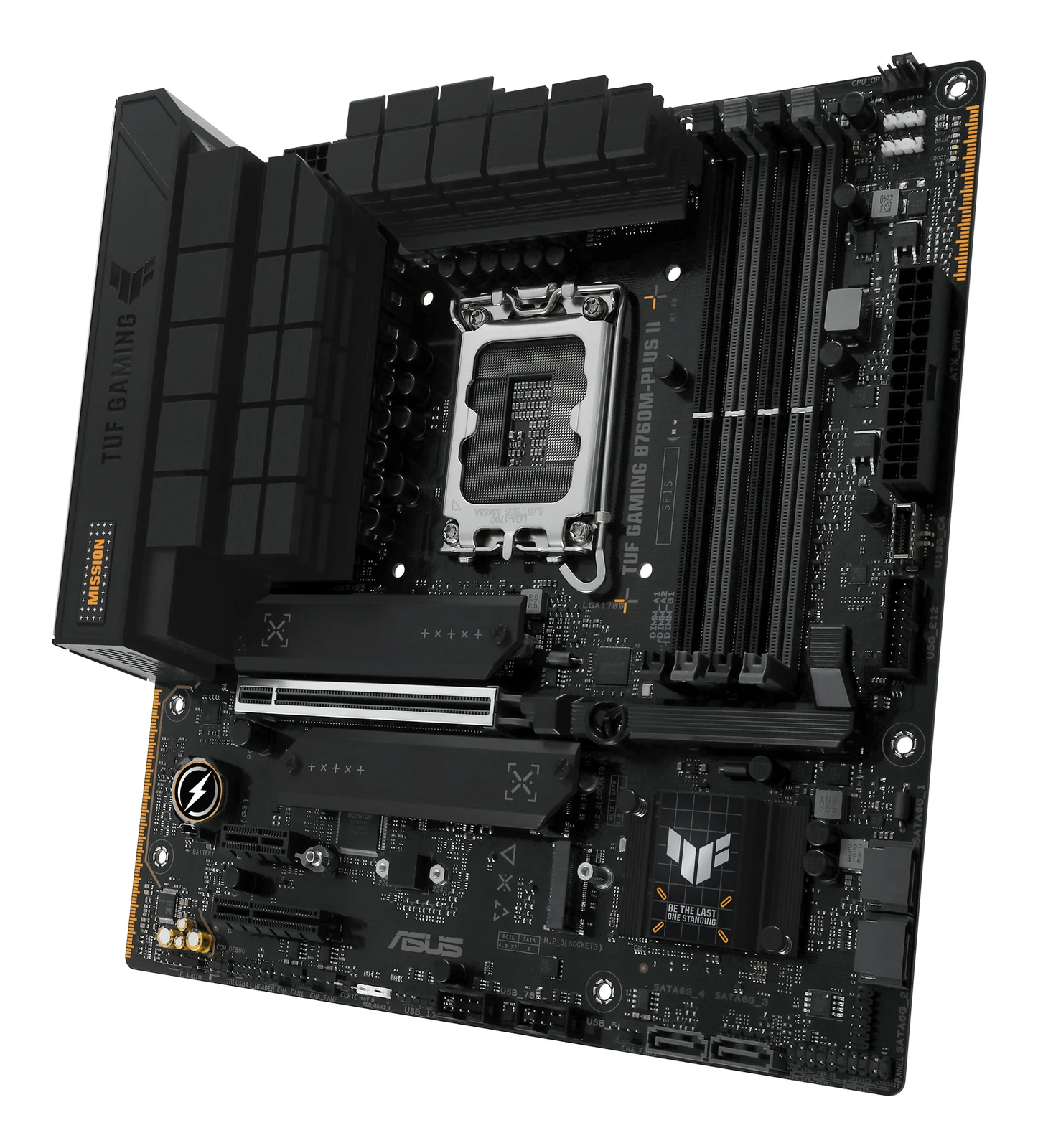

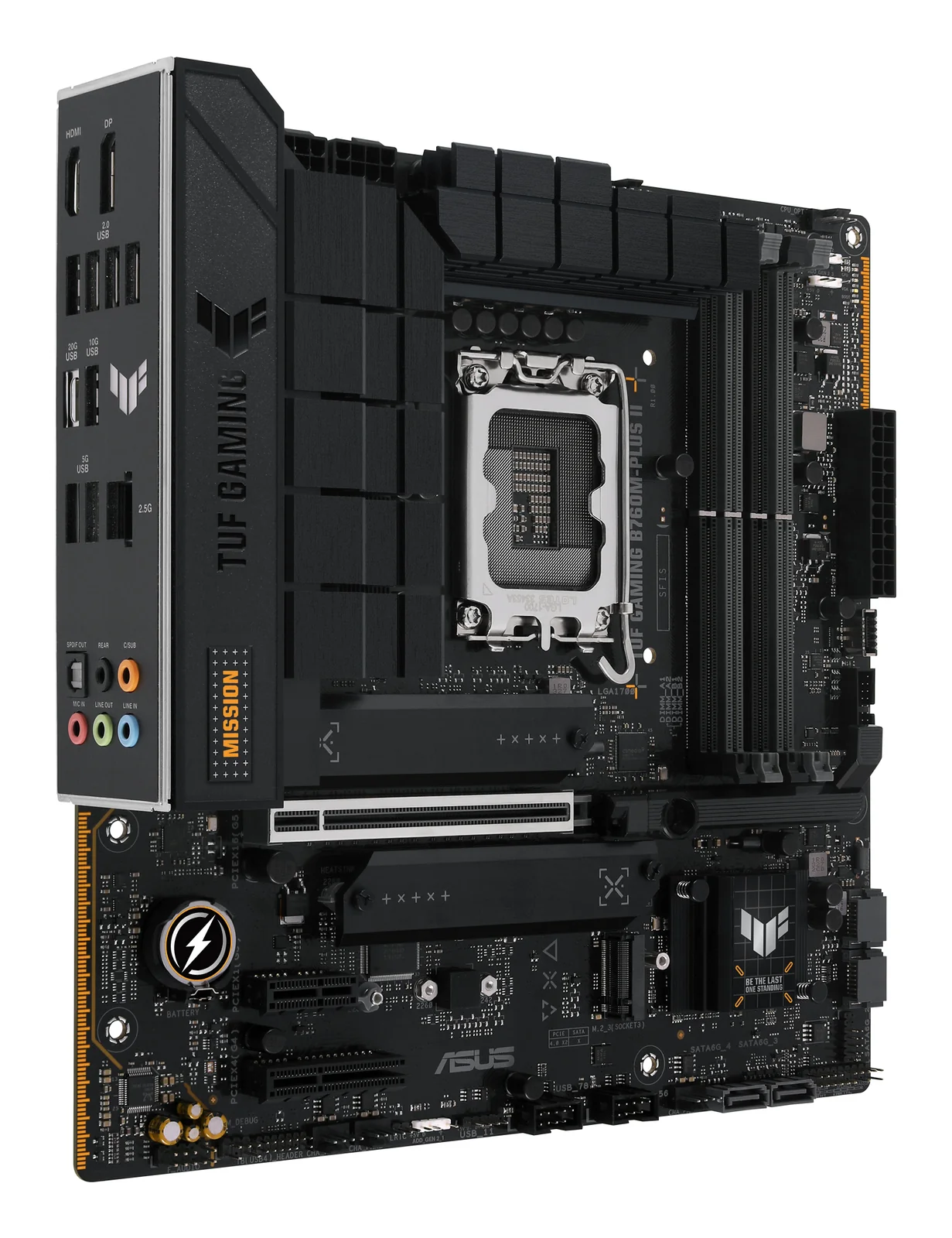

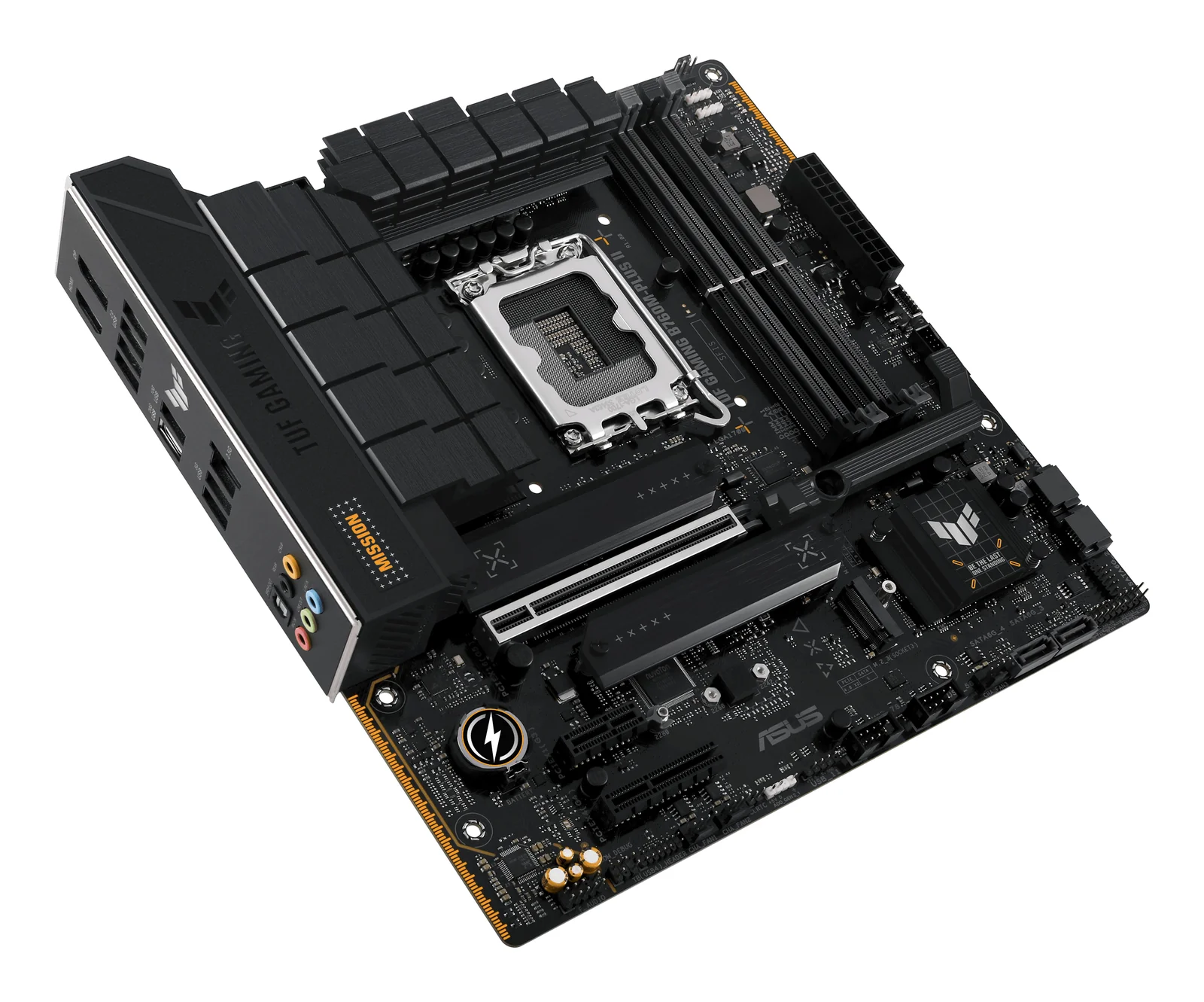

ASUS TUF GAMING B760M-PLUS II
Model TUF GAMING B760M-PLUS II
Overview
TUF GAMING B760M-PLUS II TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. INTELLIGENT CONTROL The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play. All-Around Energy Efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 128 Mbit
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speeds
- 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Supported memory clock speed (max)
- 7800 MHz
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- No
Features
- Motherboard chipset
- Intel B760
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard form factor
- Micro ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64,Windows 11
Graphics
- Parallel processing technology support
- Not supported
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
- Supported processor sockets
- LGA 1700
Internal I/O
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 3
- EPS power connector (8-pin)
- Yes
- Thunderbolt headers
- 1
- 12V power connector
- Yes
Packaging data
- Package width
- 280 mm
- Package depth
- 265 mm
- Package height
- 71 mm
- Package weight
- 1652 g
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x4 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 3
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0,1,5,10
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 50 mm

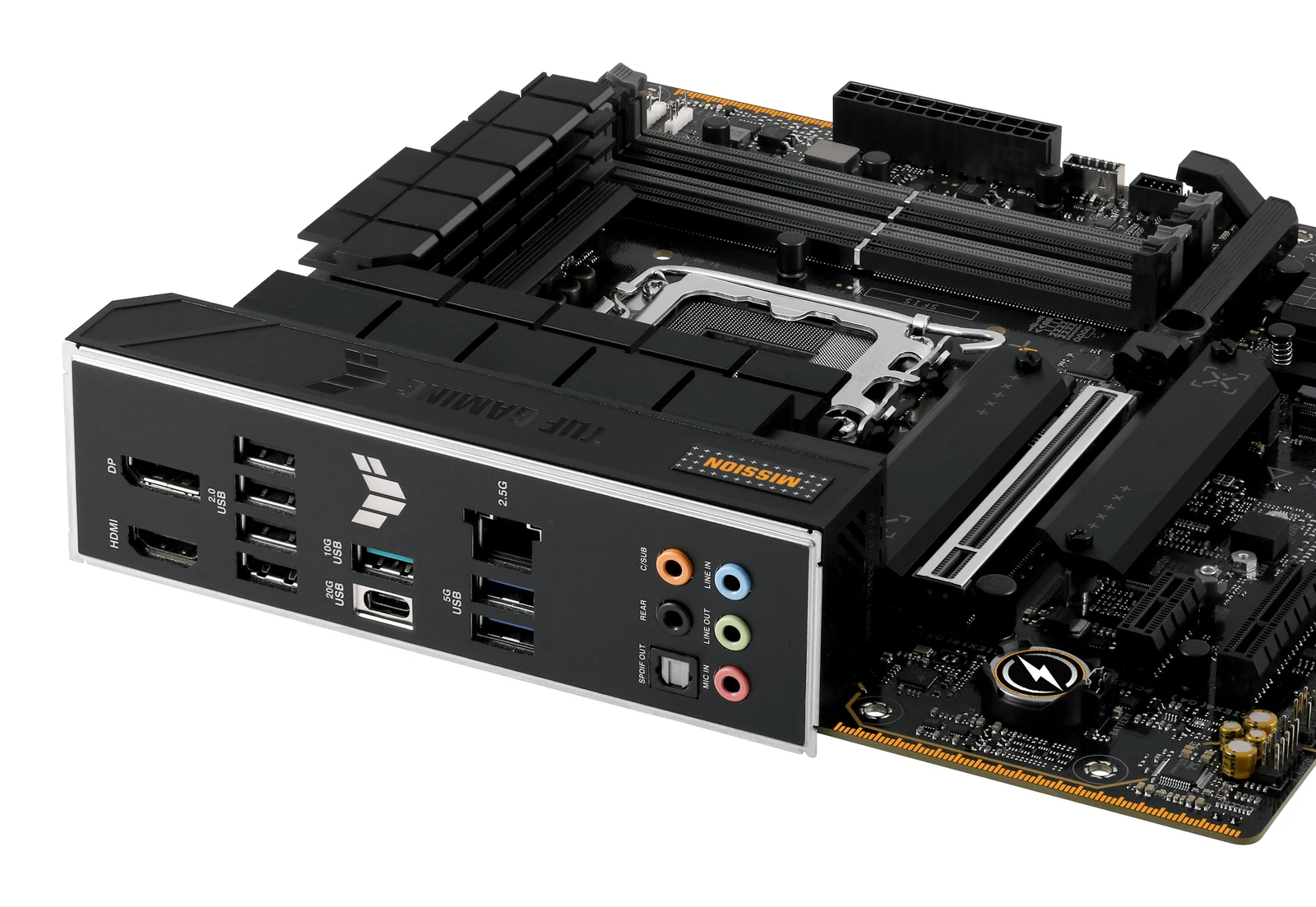

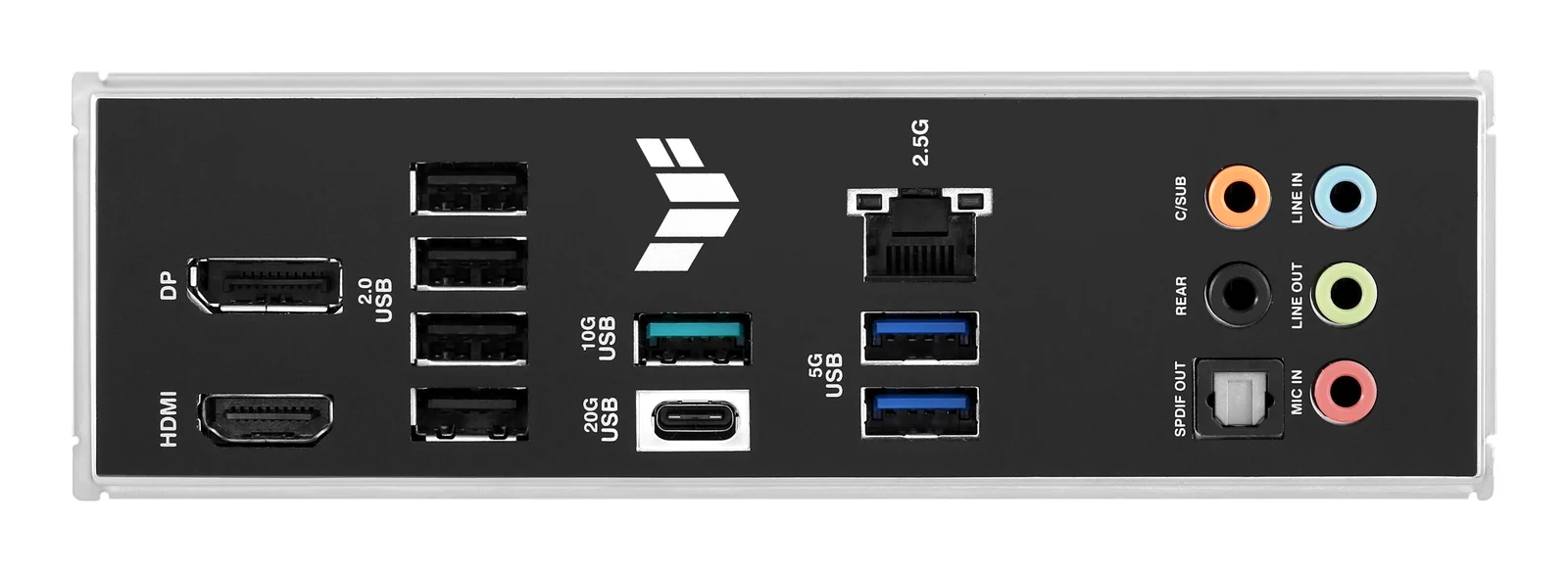

Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
