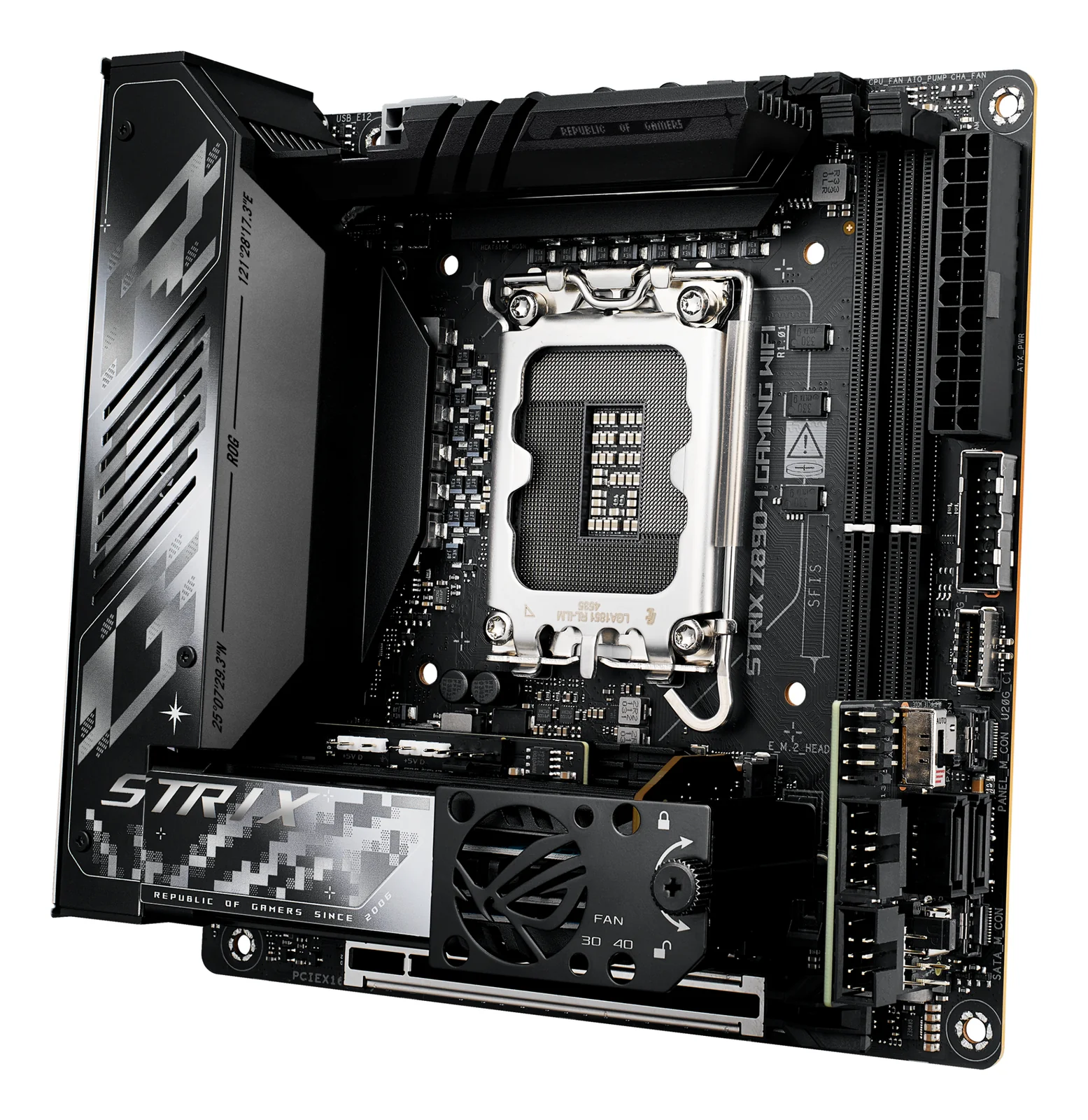

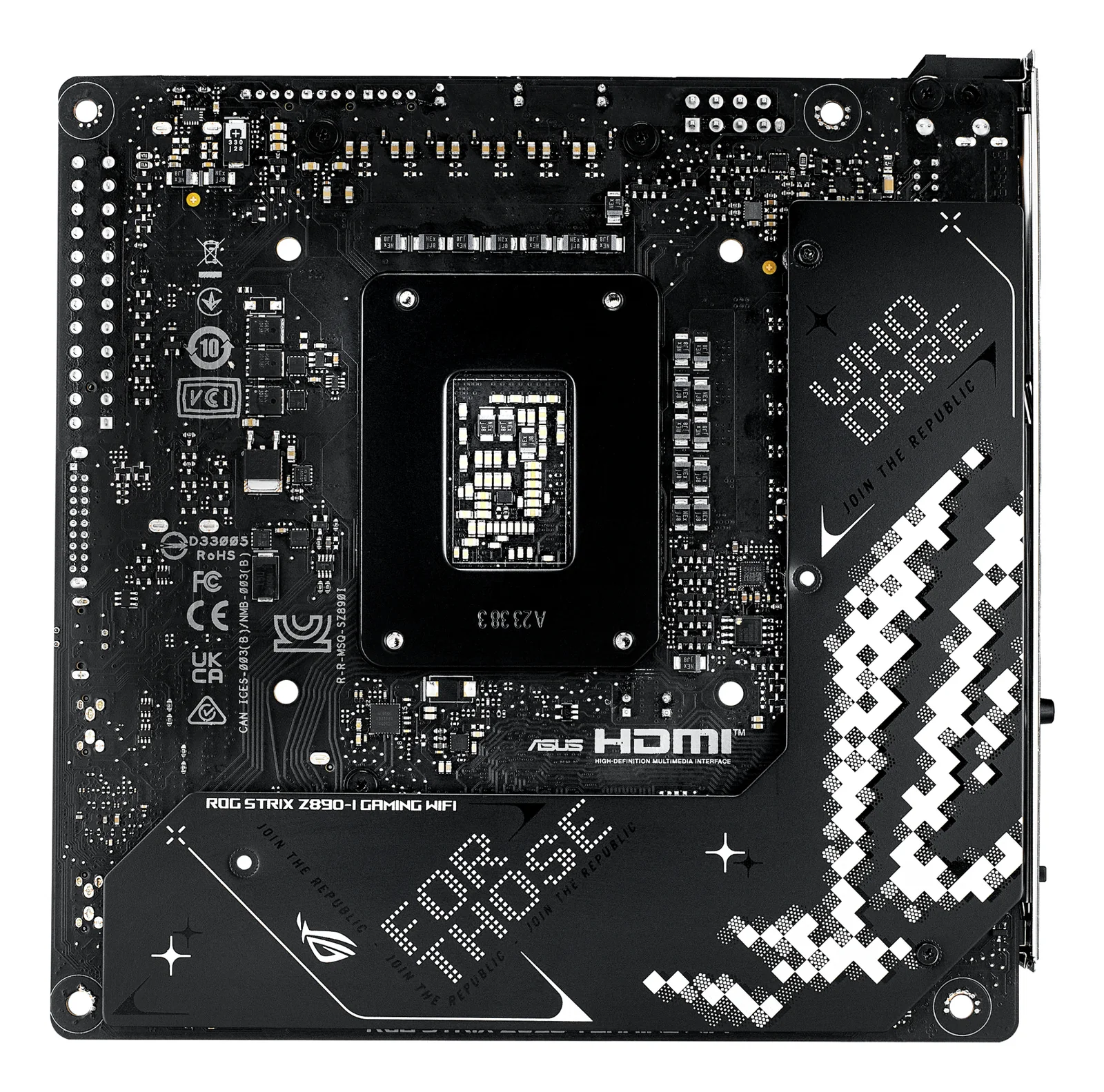

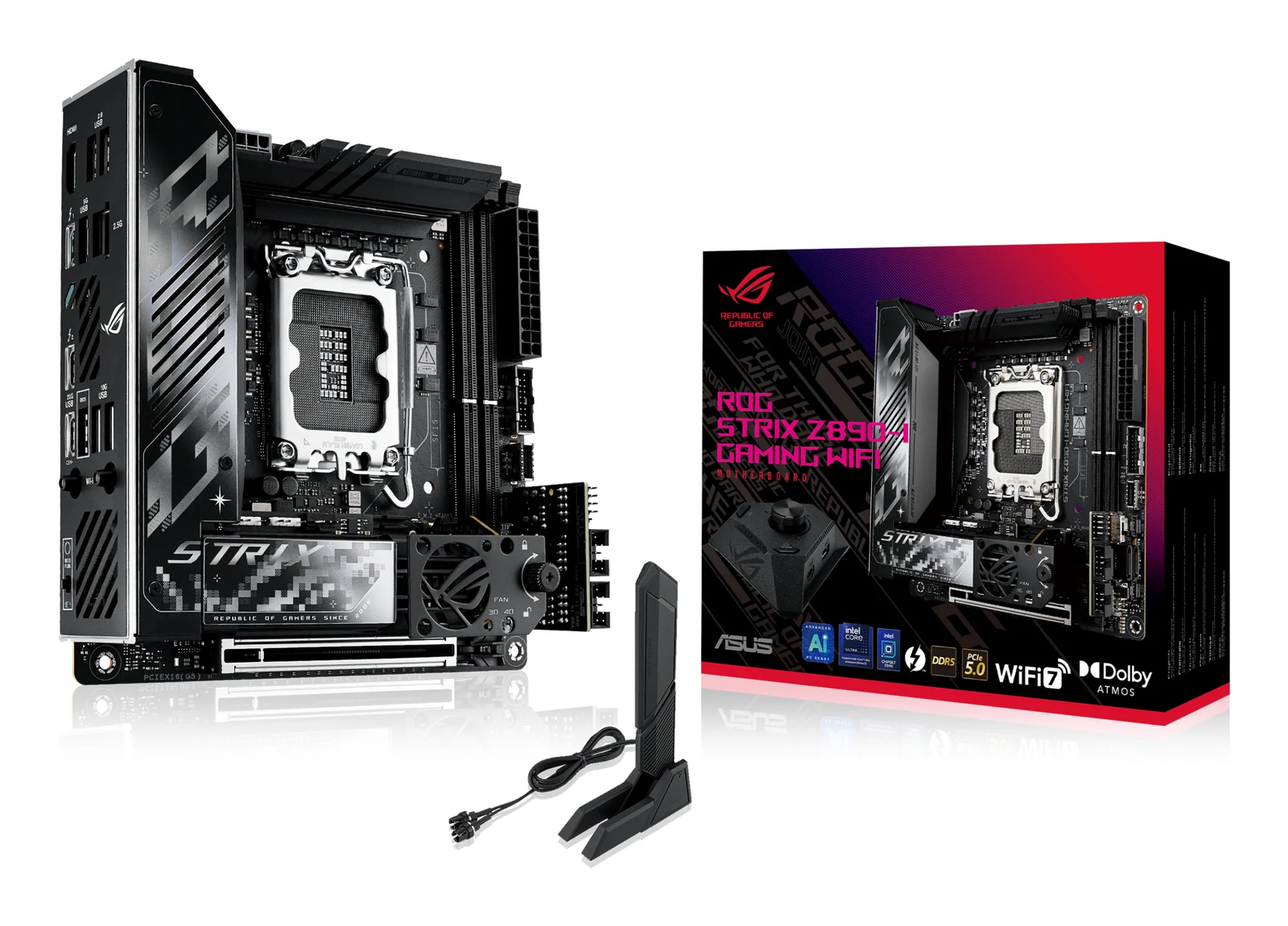

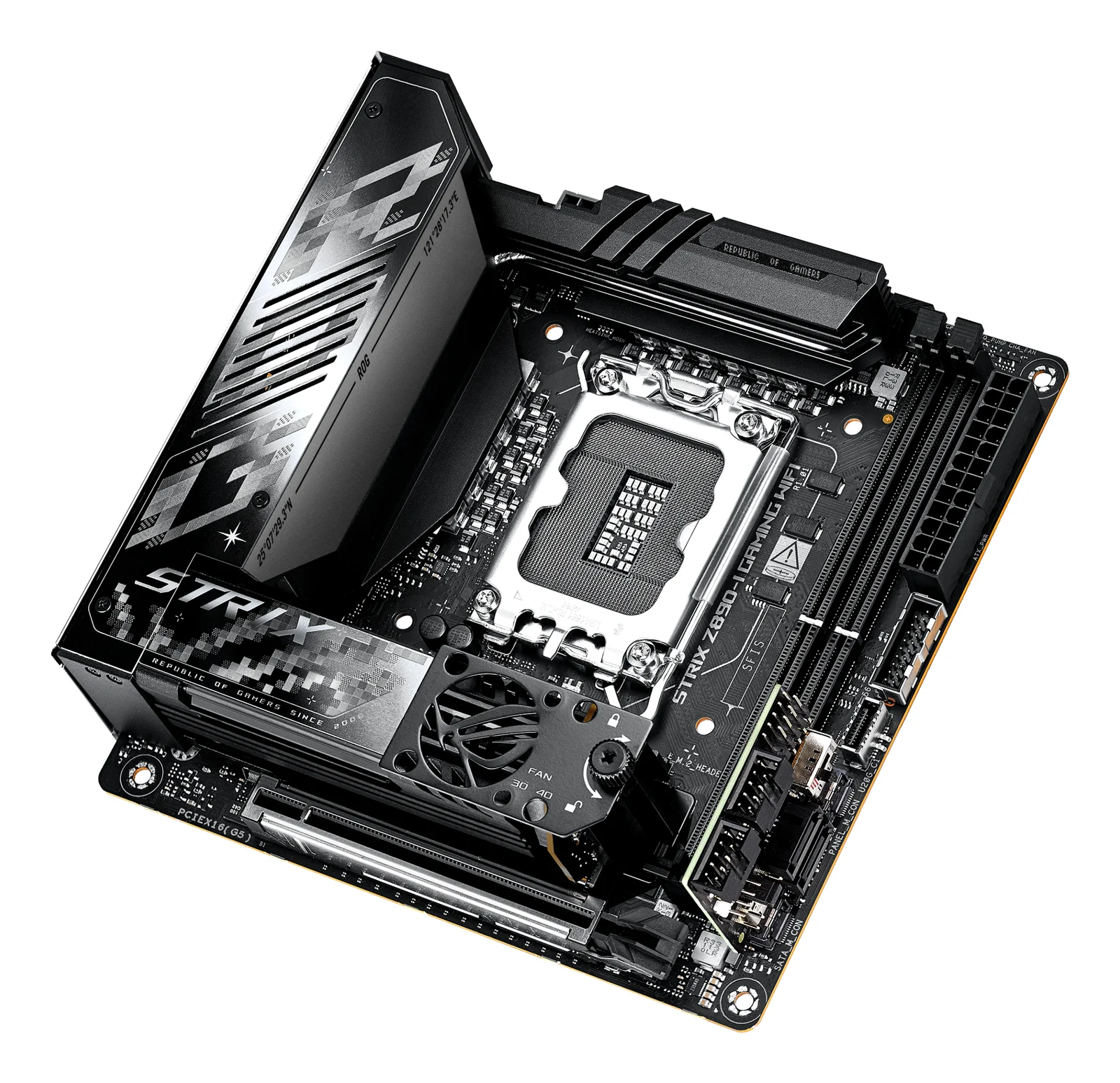

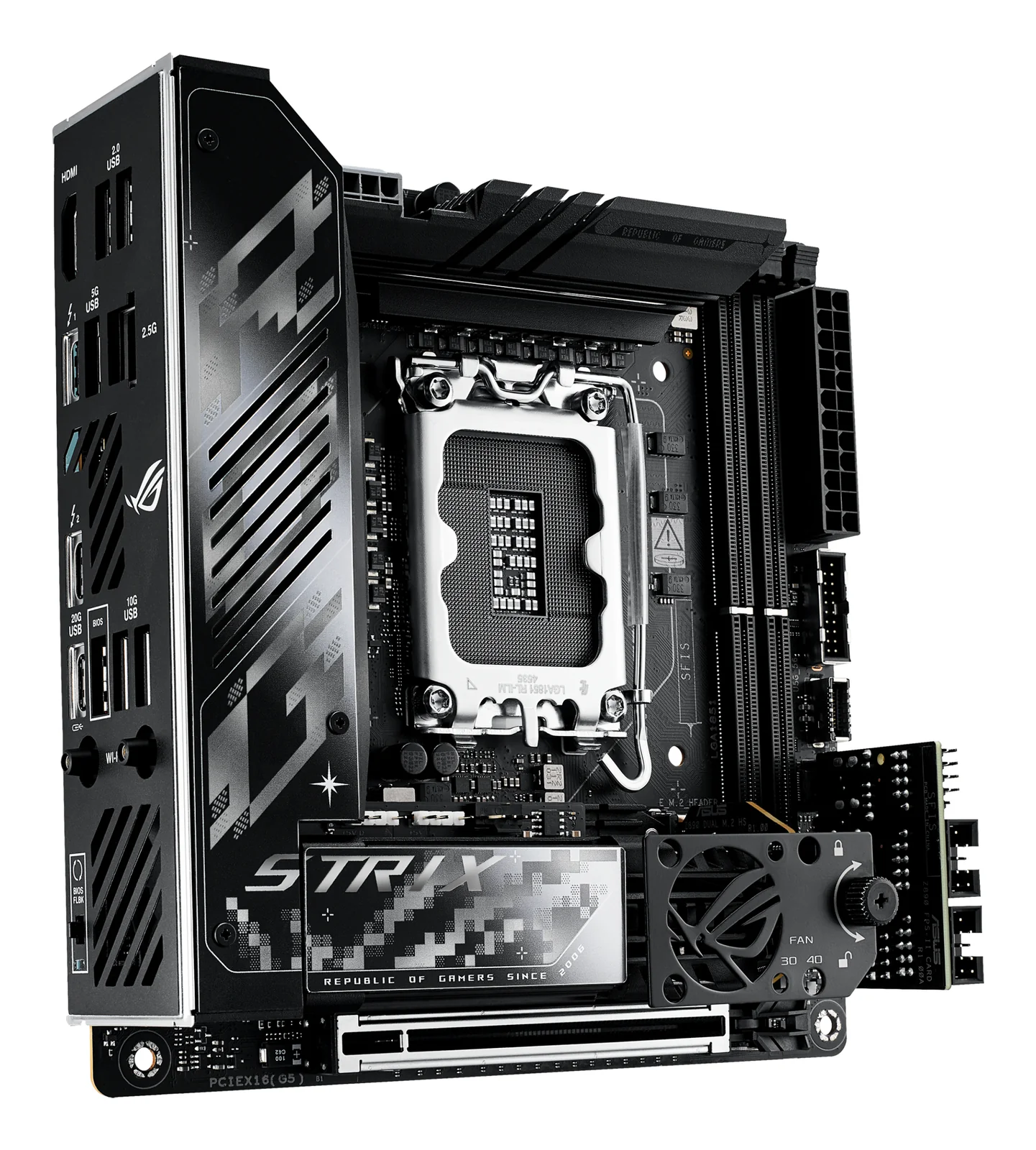

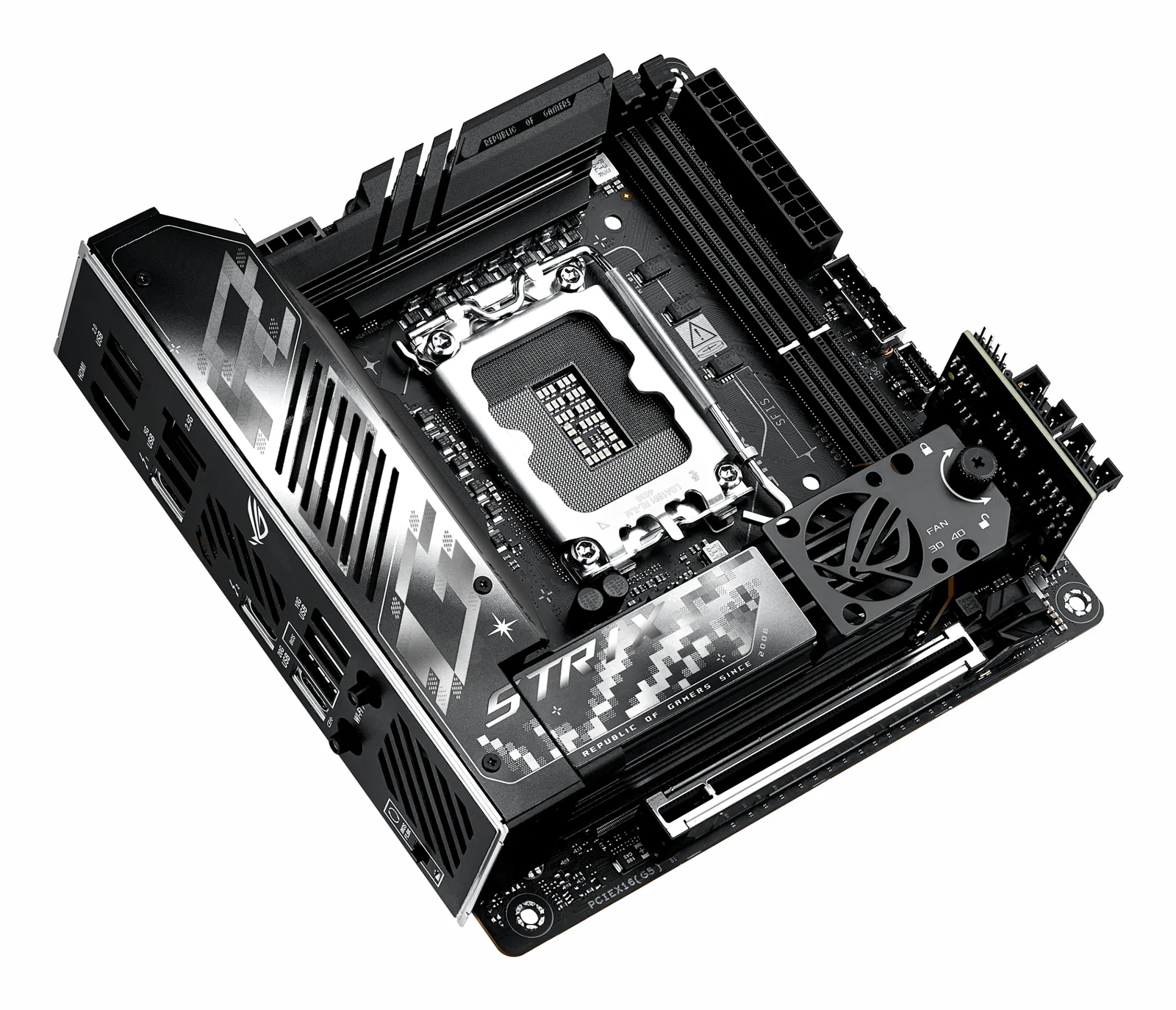

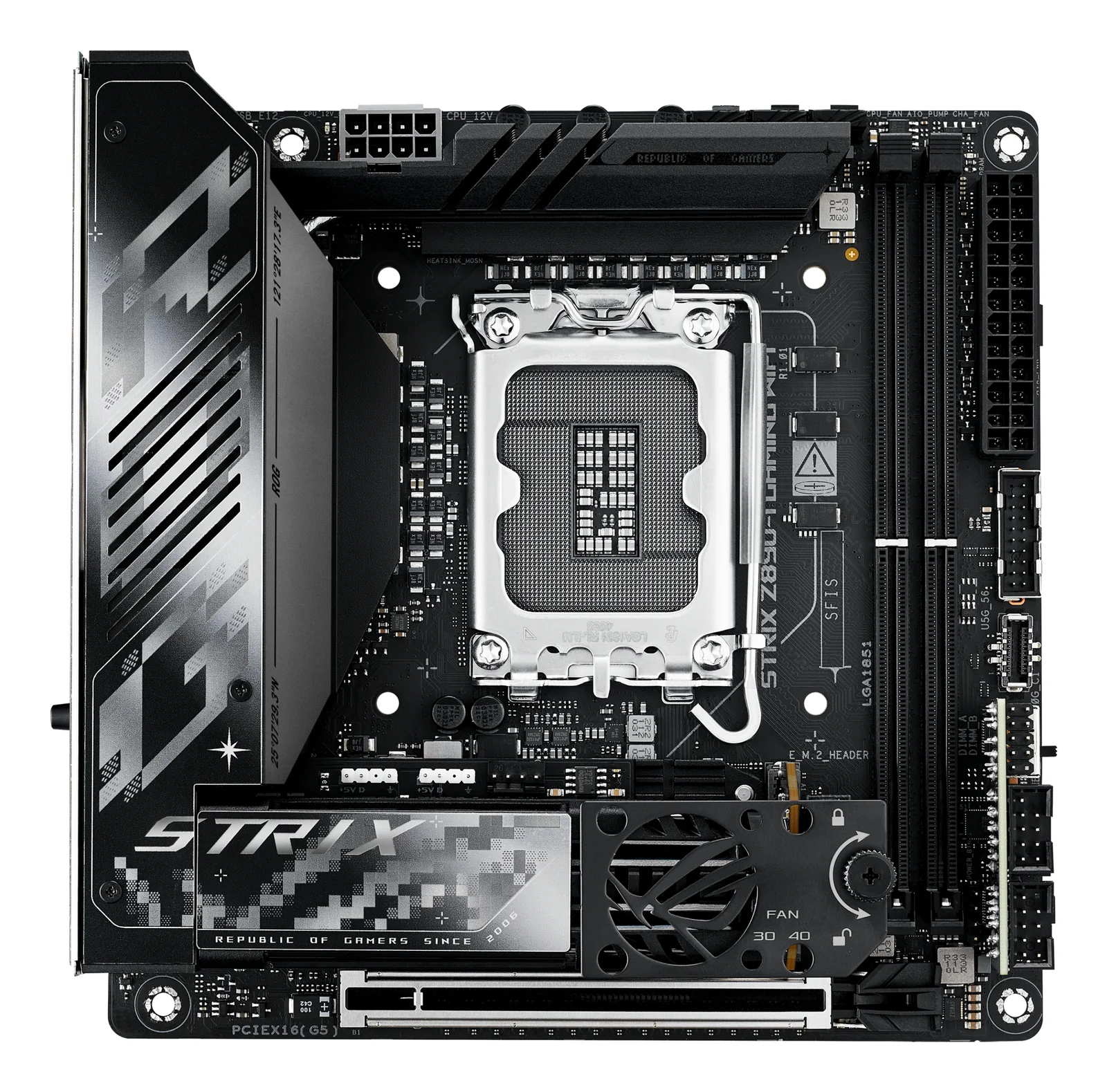

ASUS ROG STRIX Z890-I GAMING WIFI
Model ROG STRIX Z890-I GAMING WIFI
Overview

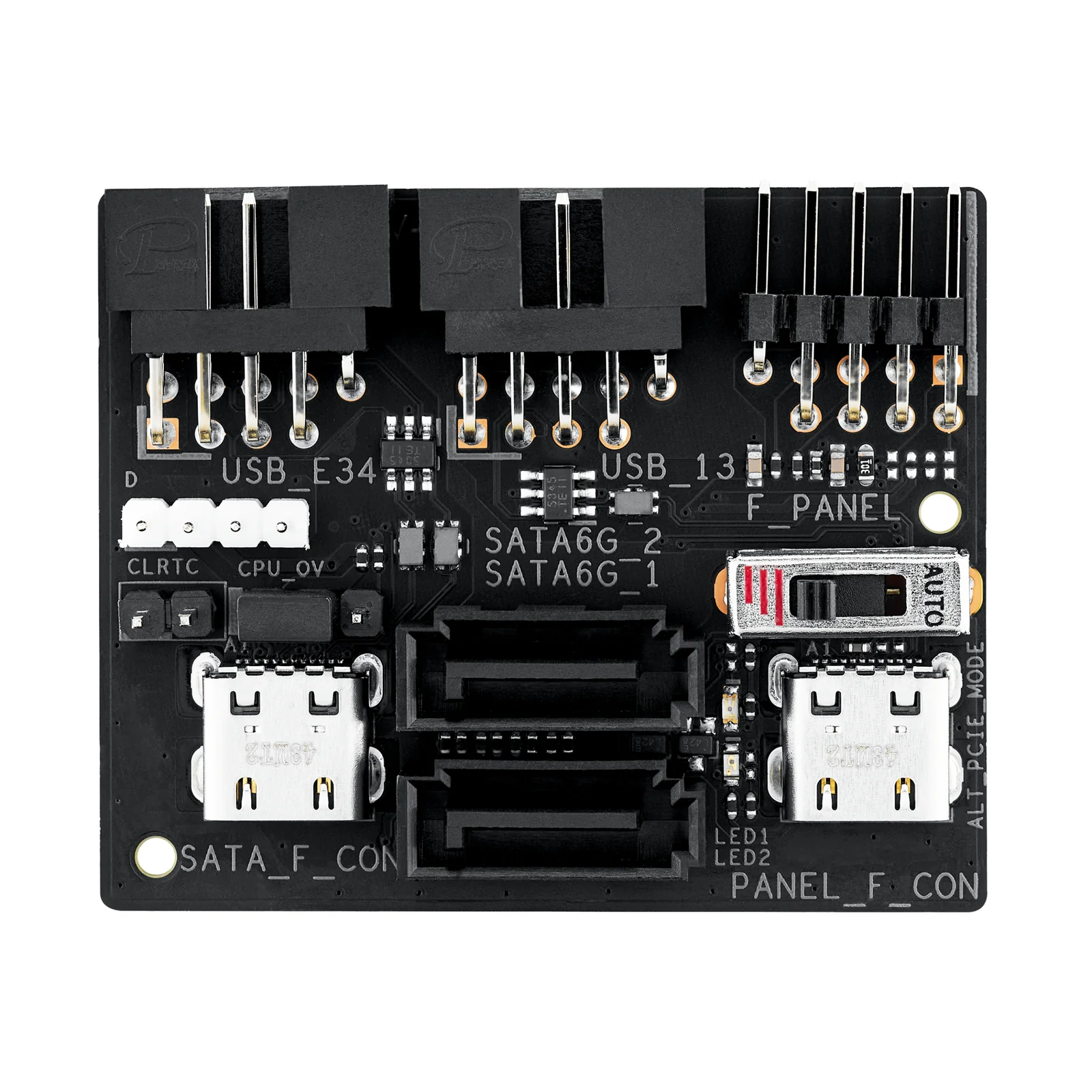

ROG STRIX Z890-I gaming wifi The ROG Strix Z890-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. With the addition of the HIVE II and FPS card, this motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 2
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Maximum internal memory
- 96 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- Mini ITX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 2
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 1
- EPS power connector (8-pin)
- Yes
- 12V power connector
- Yes
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 2
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 2
- Number of storage drives supported
- 4
- RAID support
- Yes
- RAID levels
- 0,1
Weight & dimensions
- Width
- 170 mm
- Depth
- 170 mm

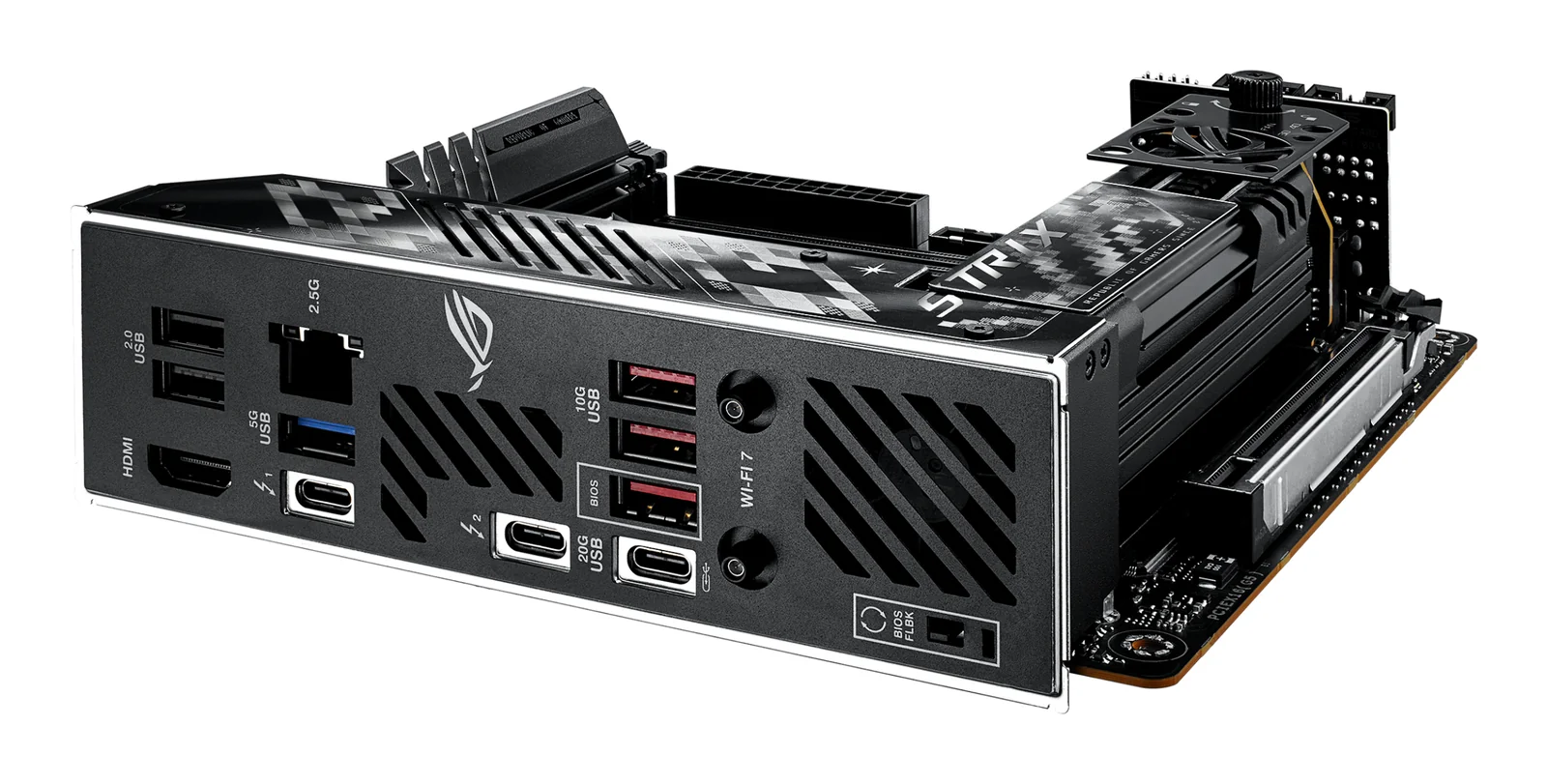

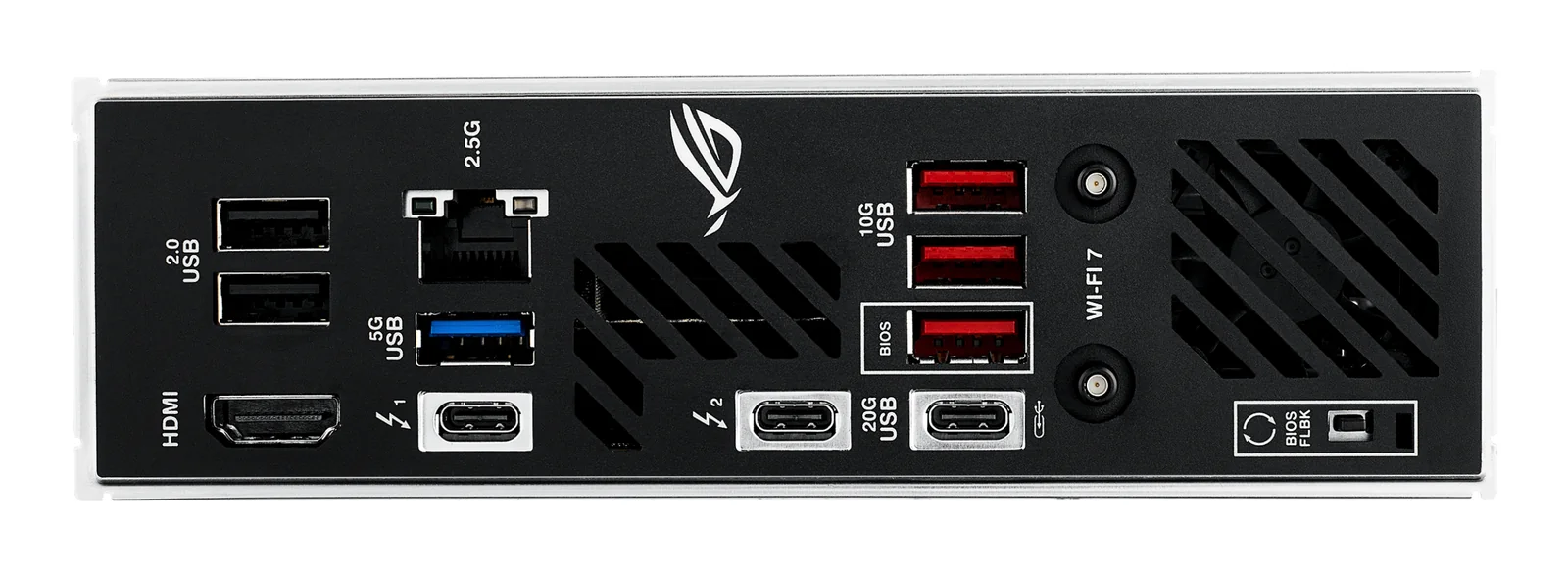

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Thunderbolt ports quantity
- 2
