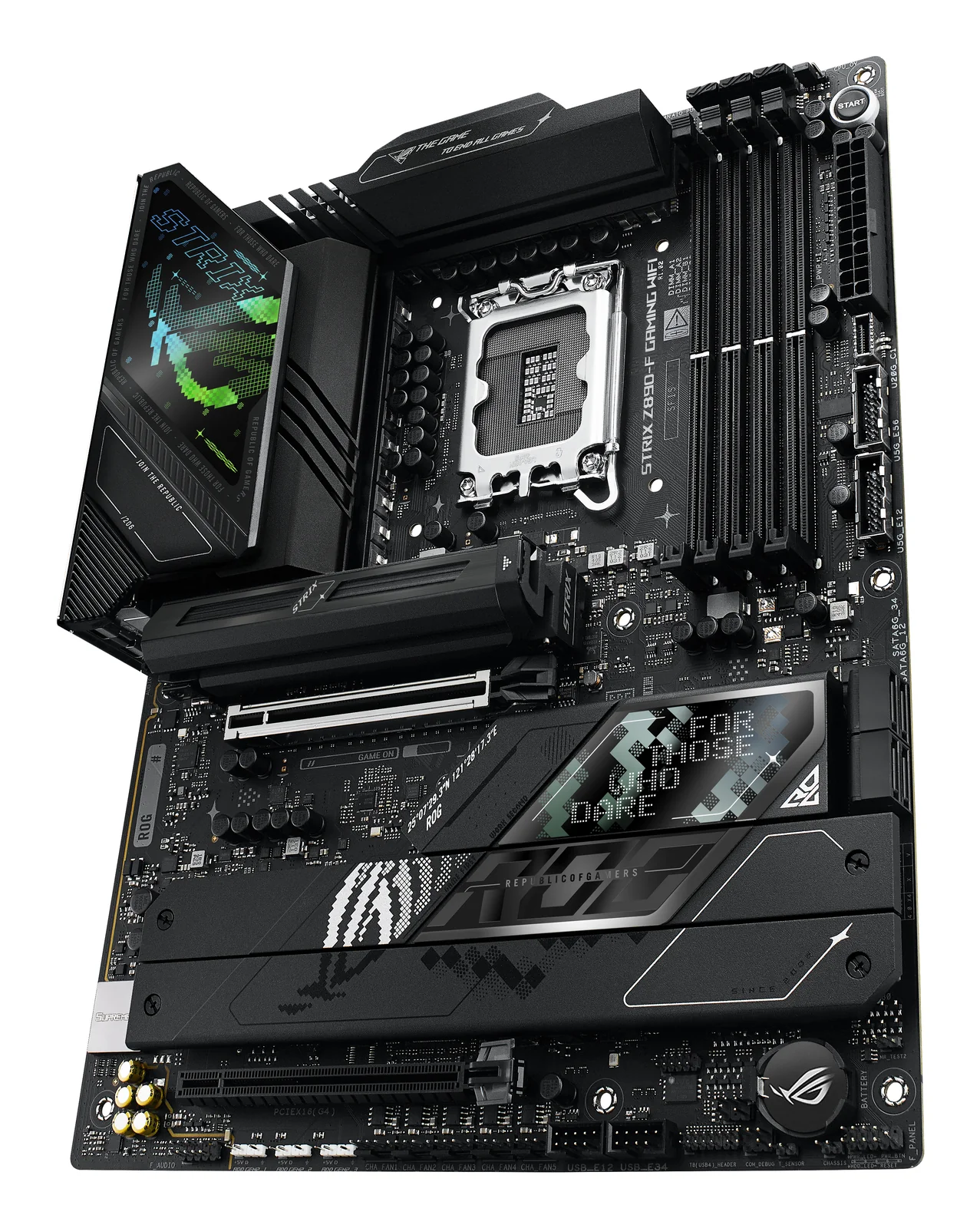

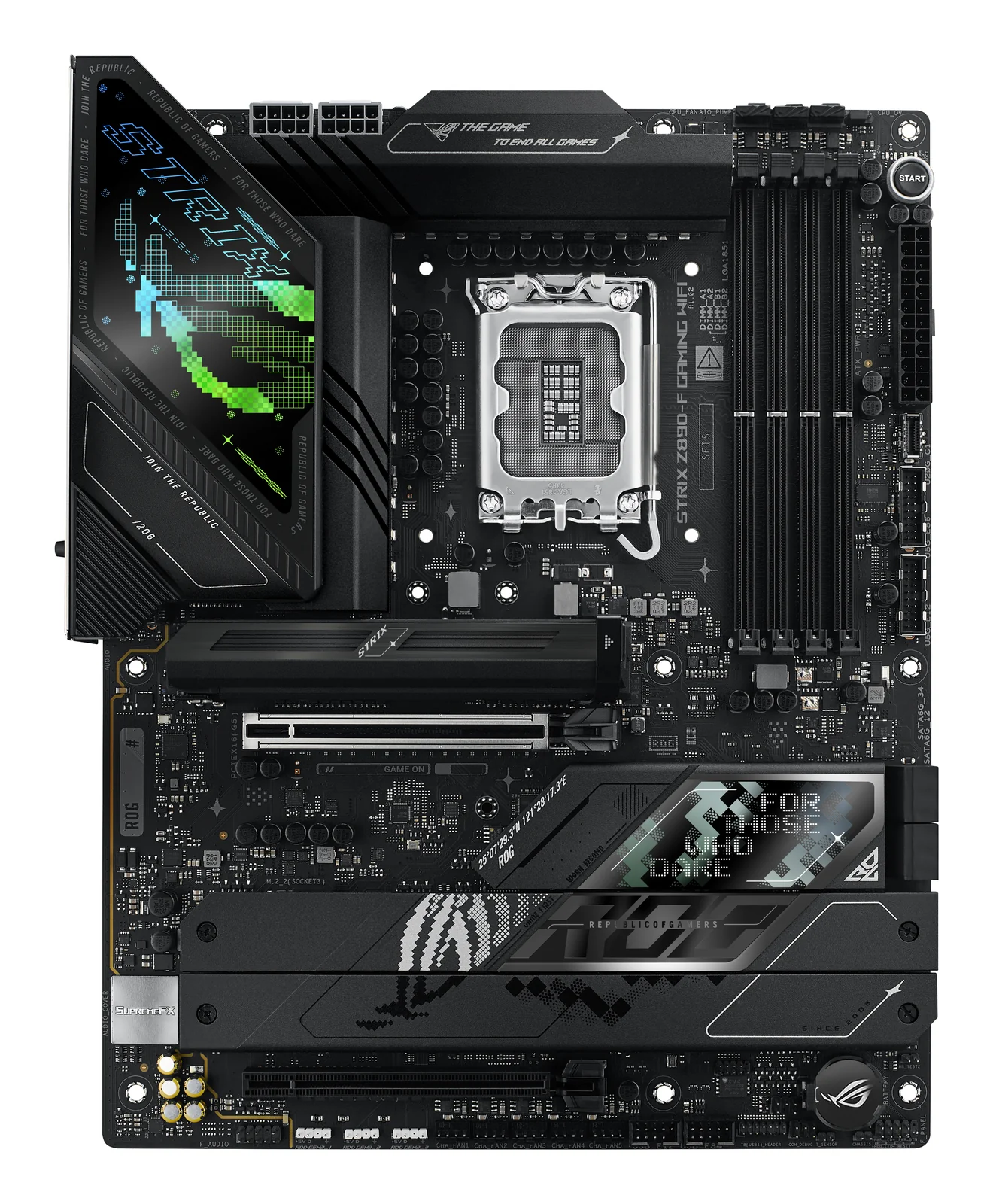

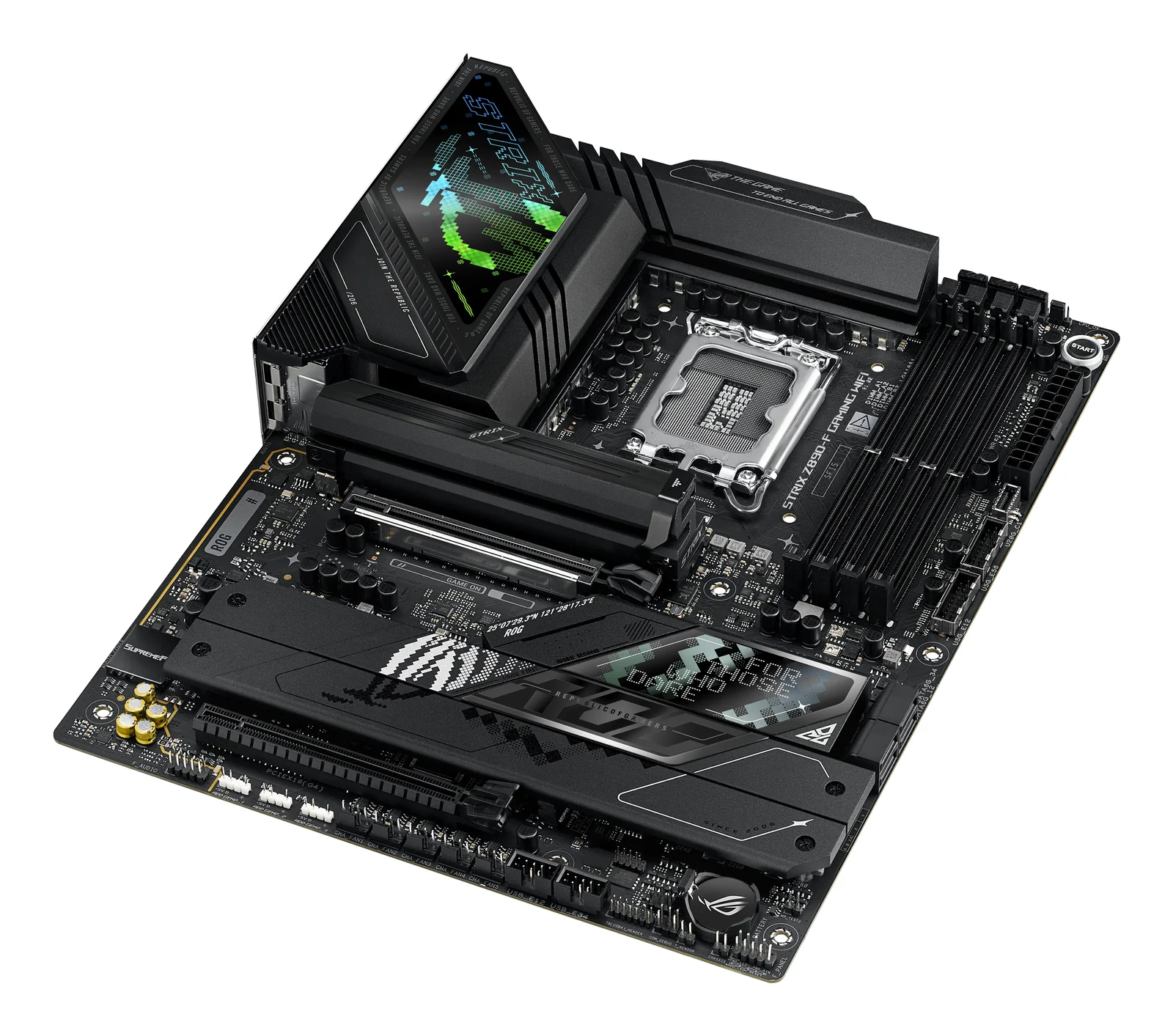

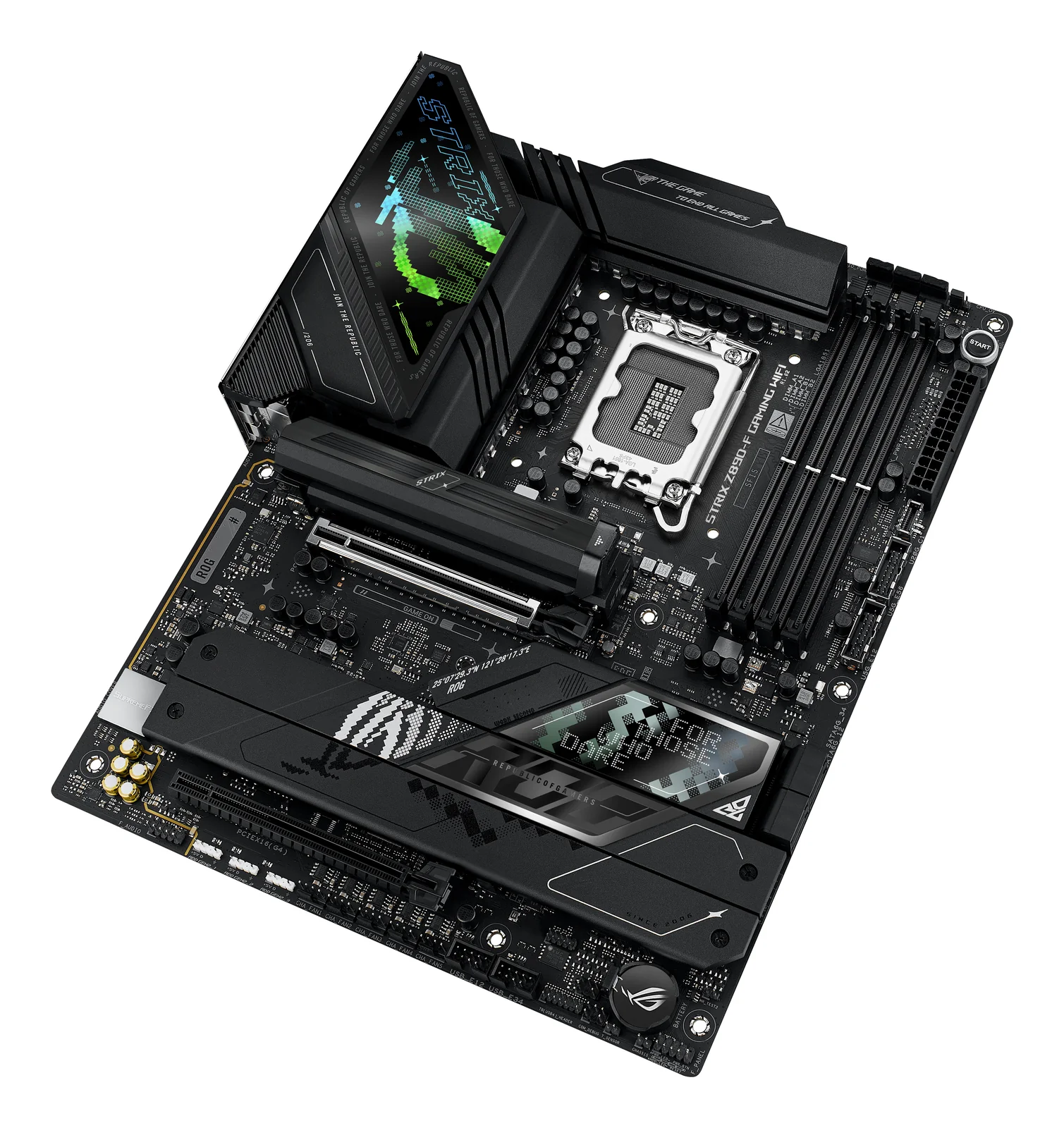

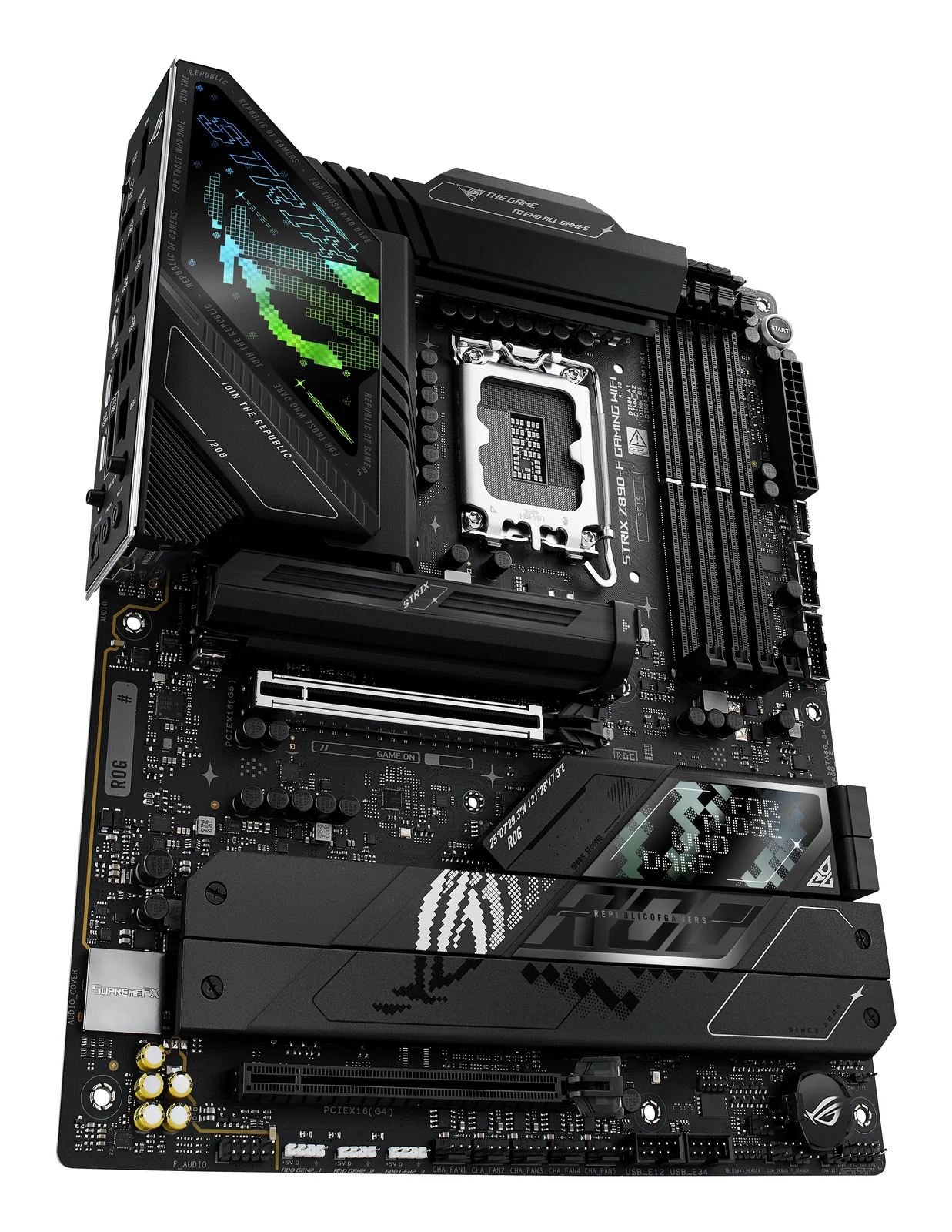

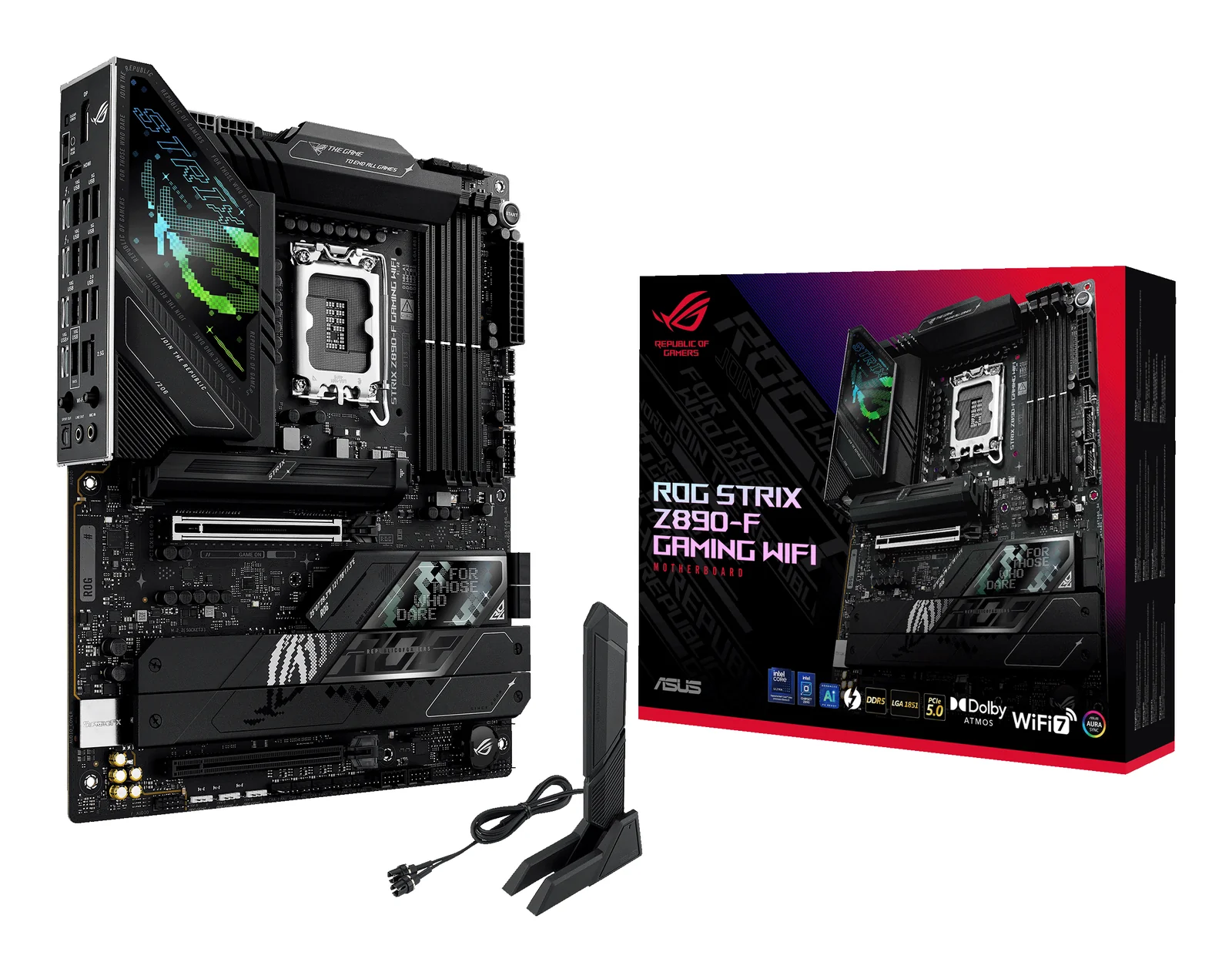

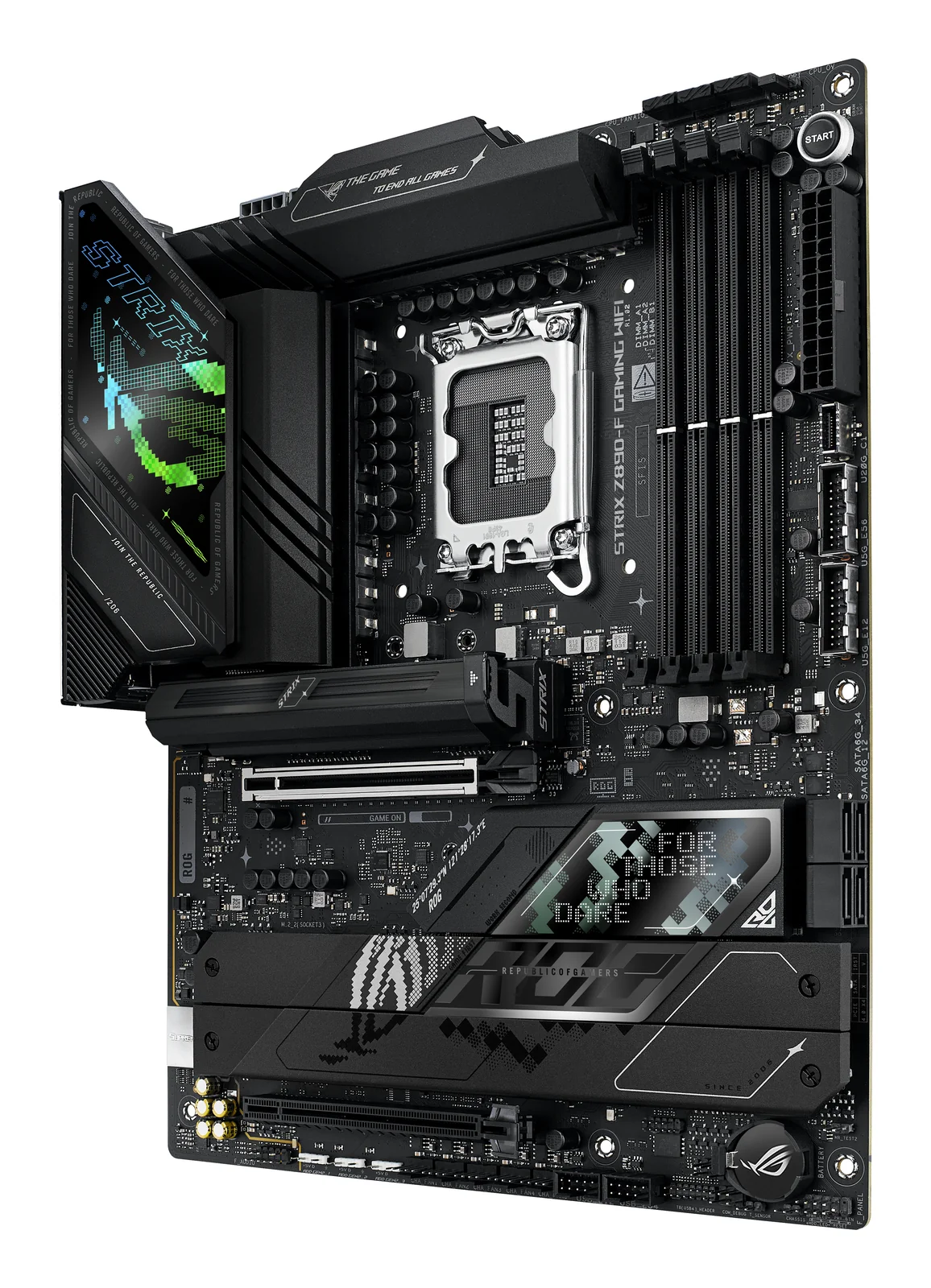

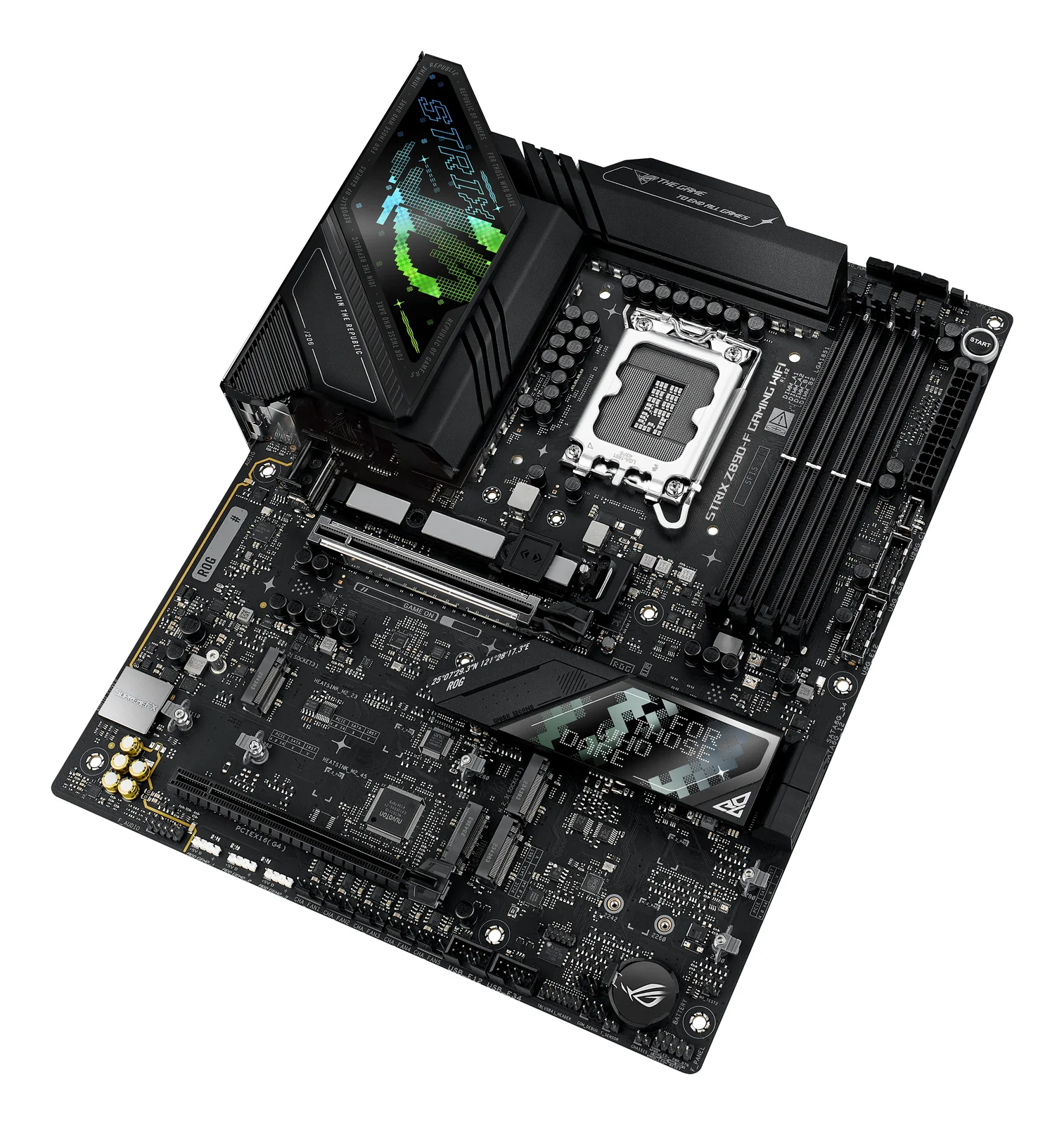

ASUS ROG STRIX Z890-F GAMING WIFI
Model ROG STRIX Z890-F GAMING WIFI
Overview
ROG STRIX Z890-F gaming wifi With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
Specifications
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
- Clear CMOS button
- Yes
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- non-ECC
- Supported memory clock speed (max)
- 8600 MHz
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Audio chip
- Realtek ALC4080
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 5
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Thunderbolt headers
- 1
- 12V power connector
- Yes
Packaging data
- Package width
- 353 mm
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 1980 g
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 5
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 9
- RAID support
- Yes
- RAID levels
- 0,1,5
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
- Thunderbolt ports quantity
- 2
