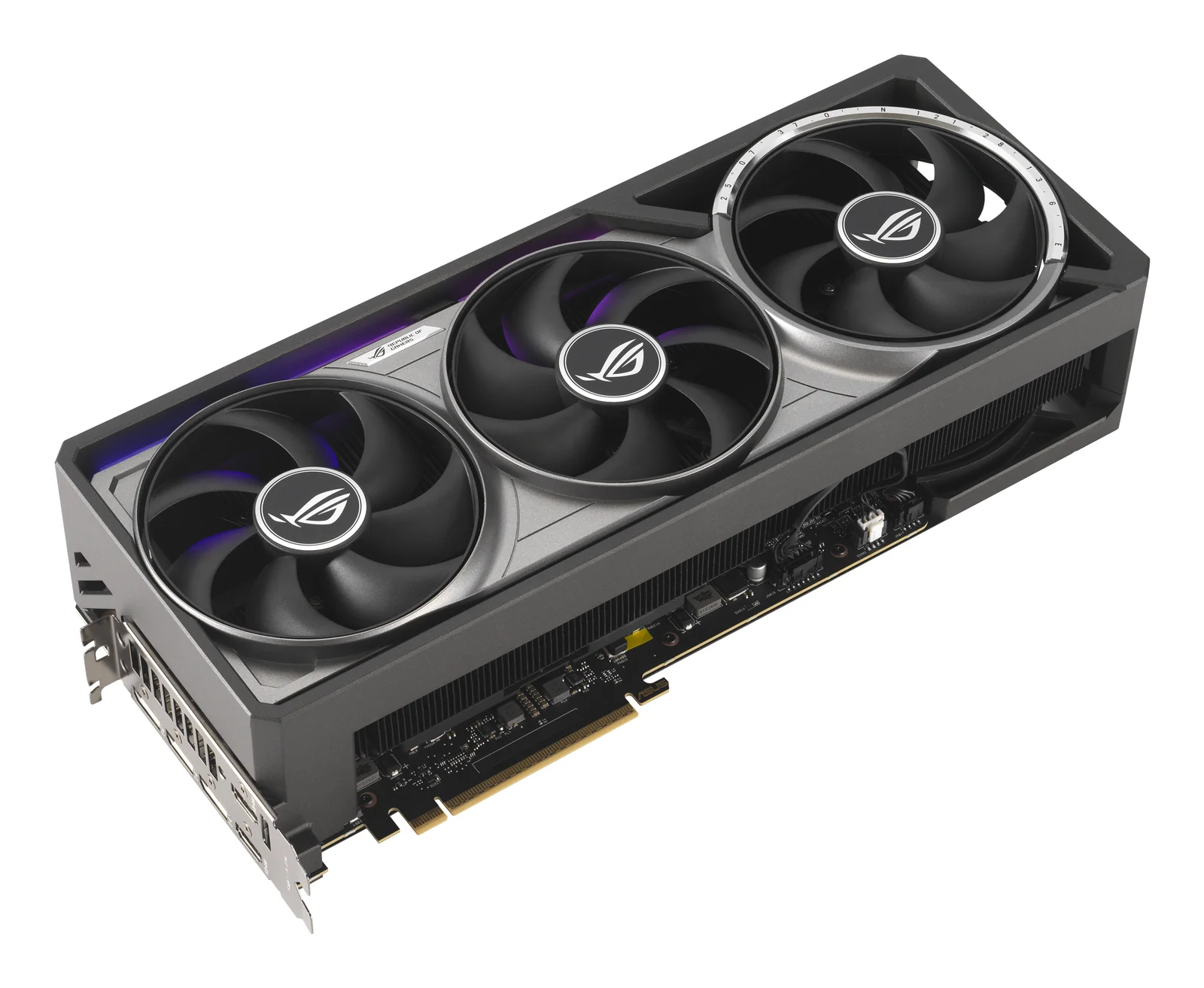

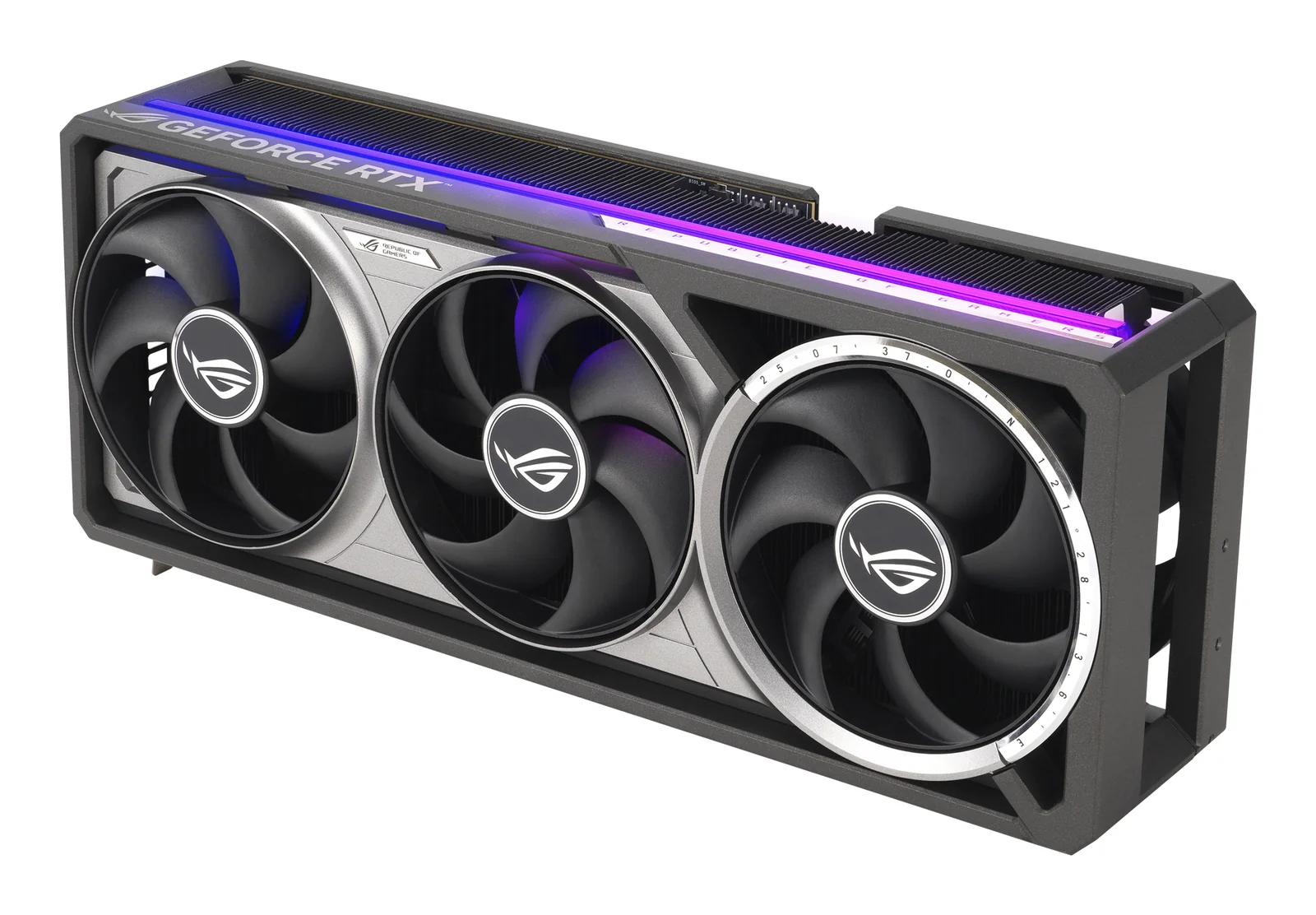

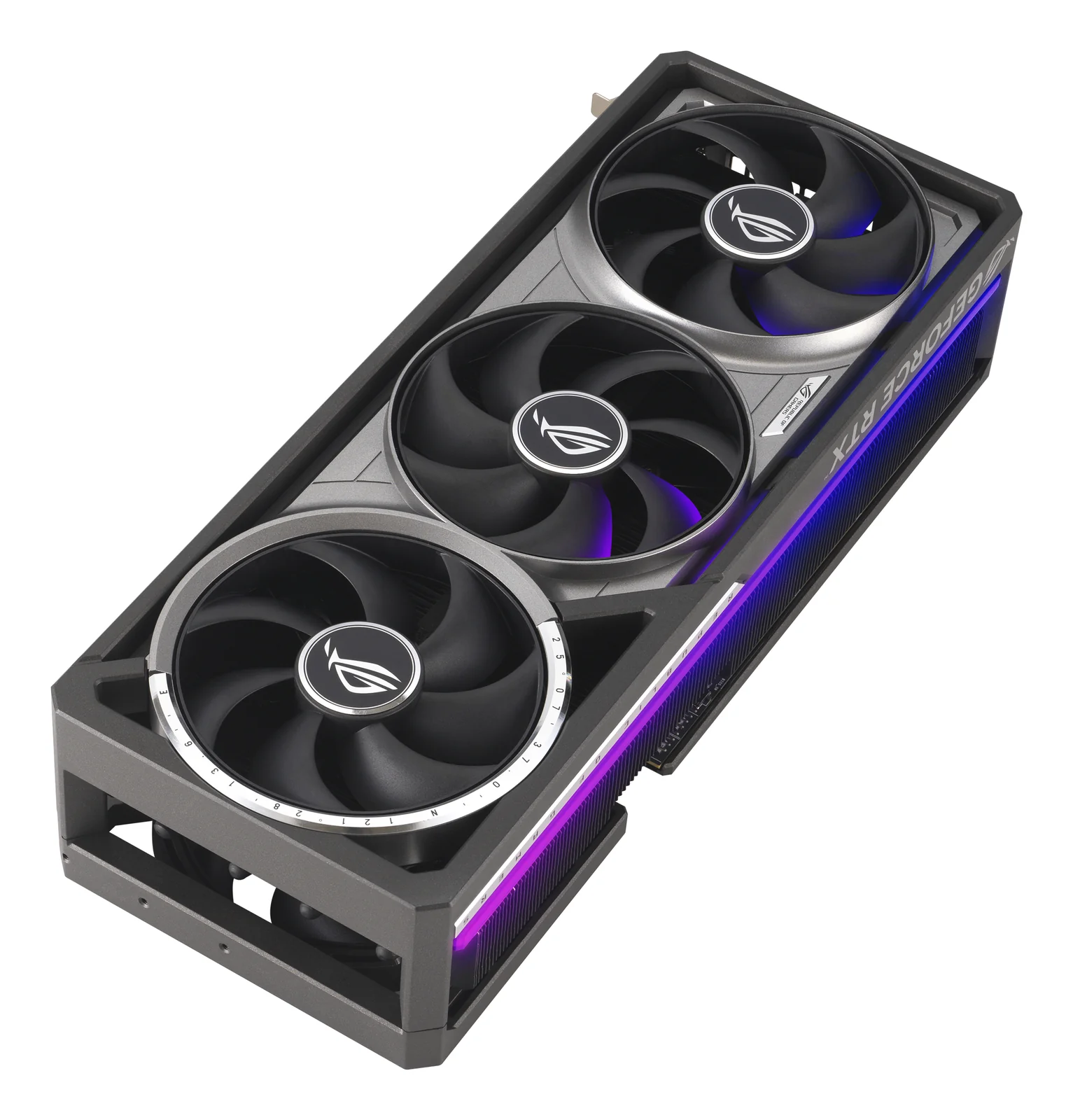

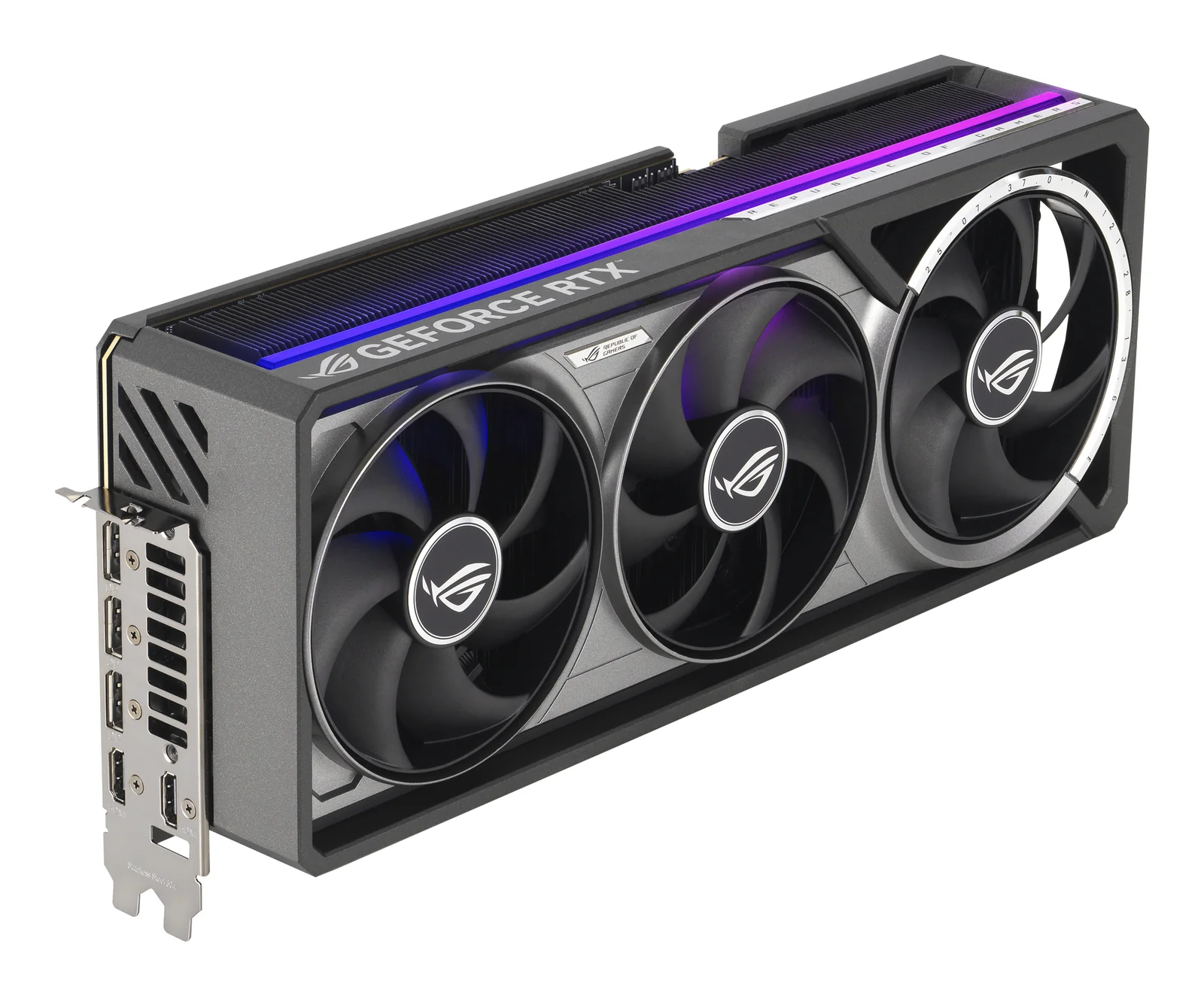

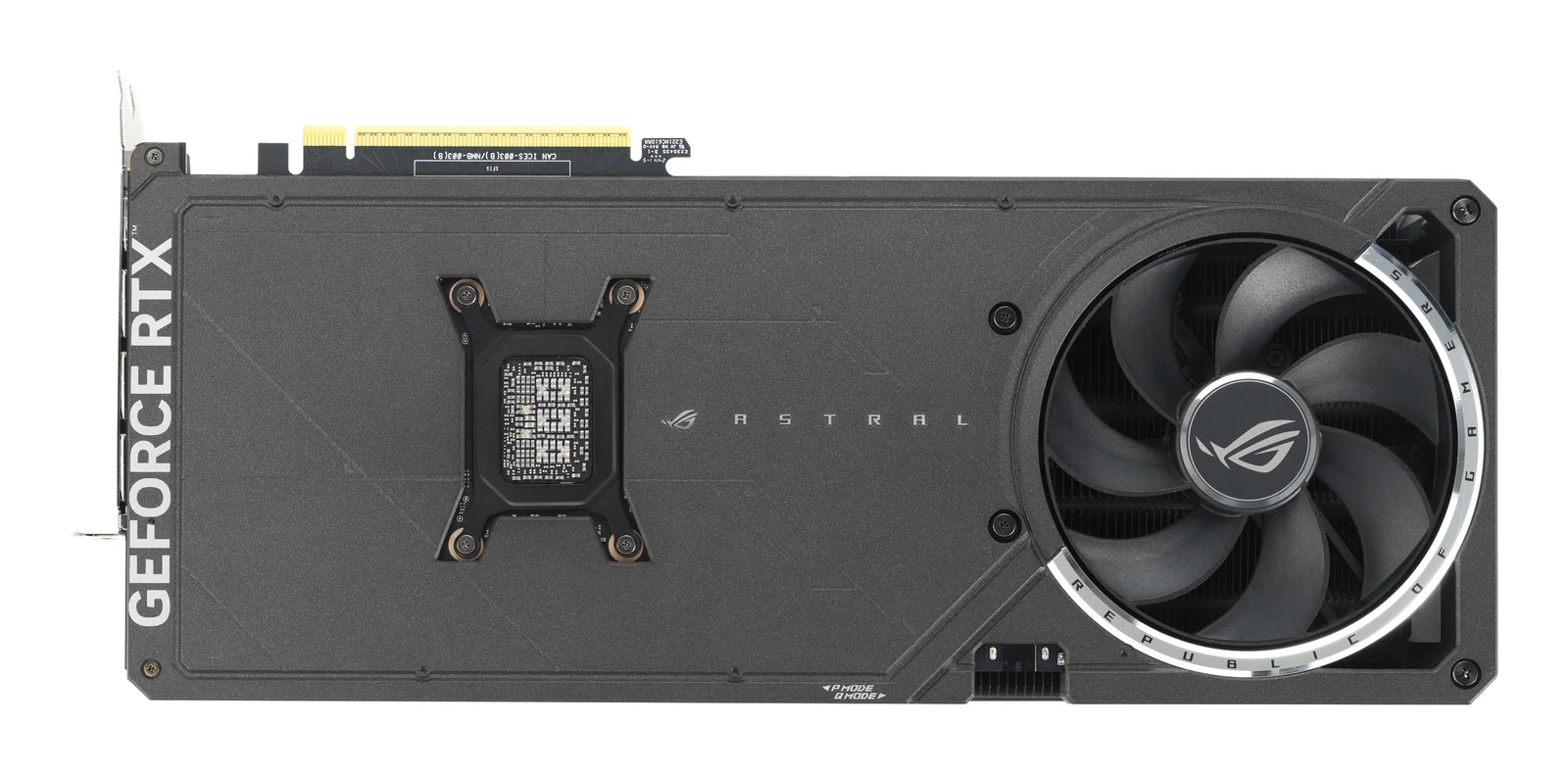

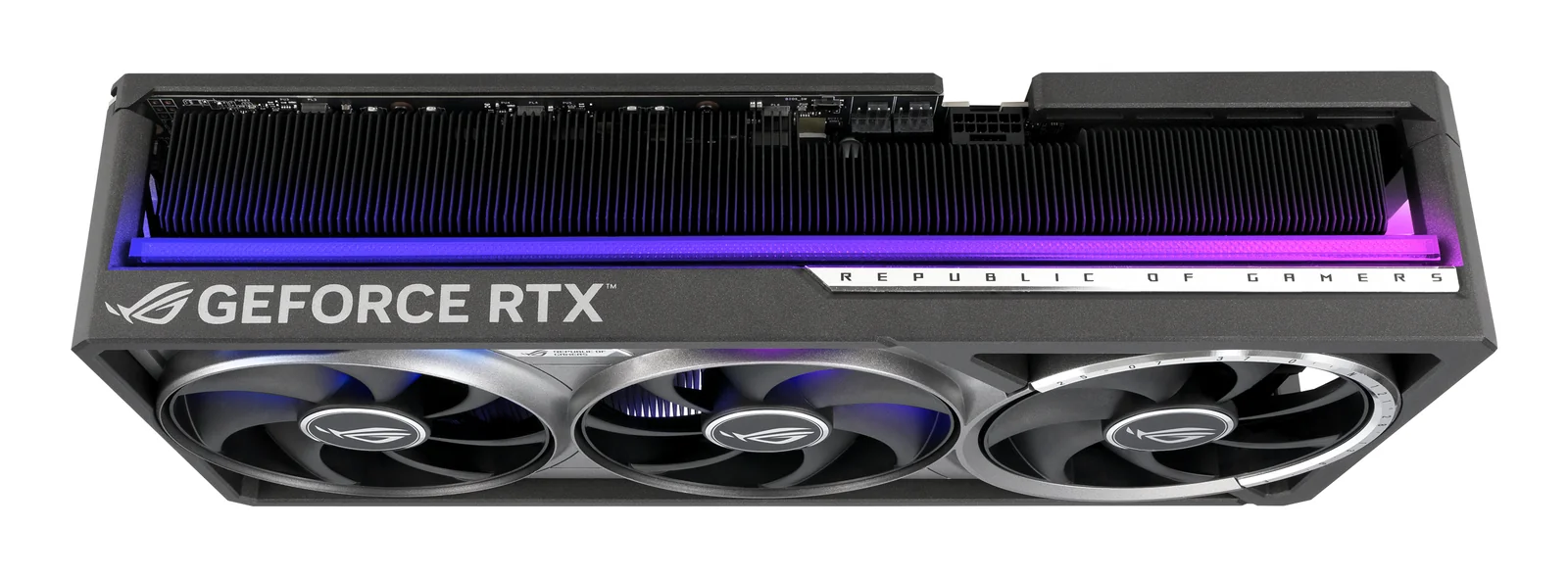

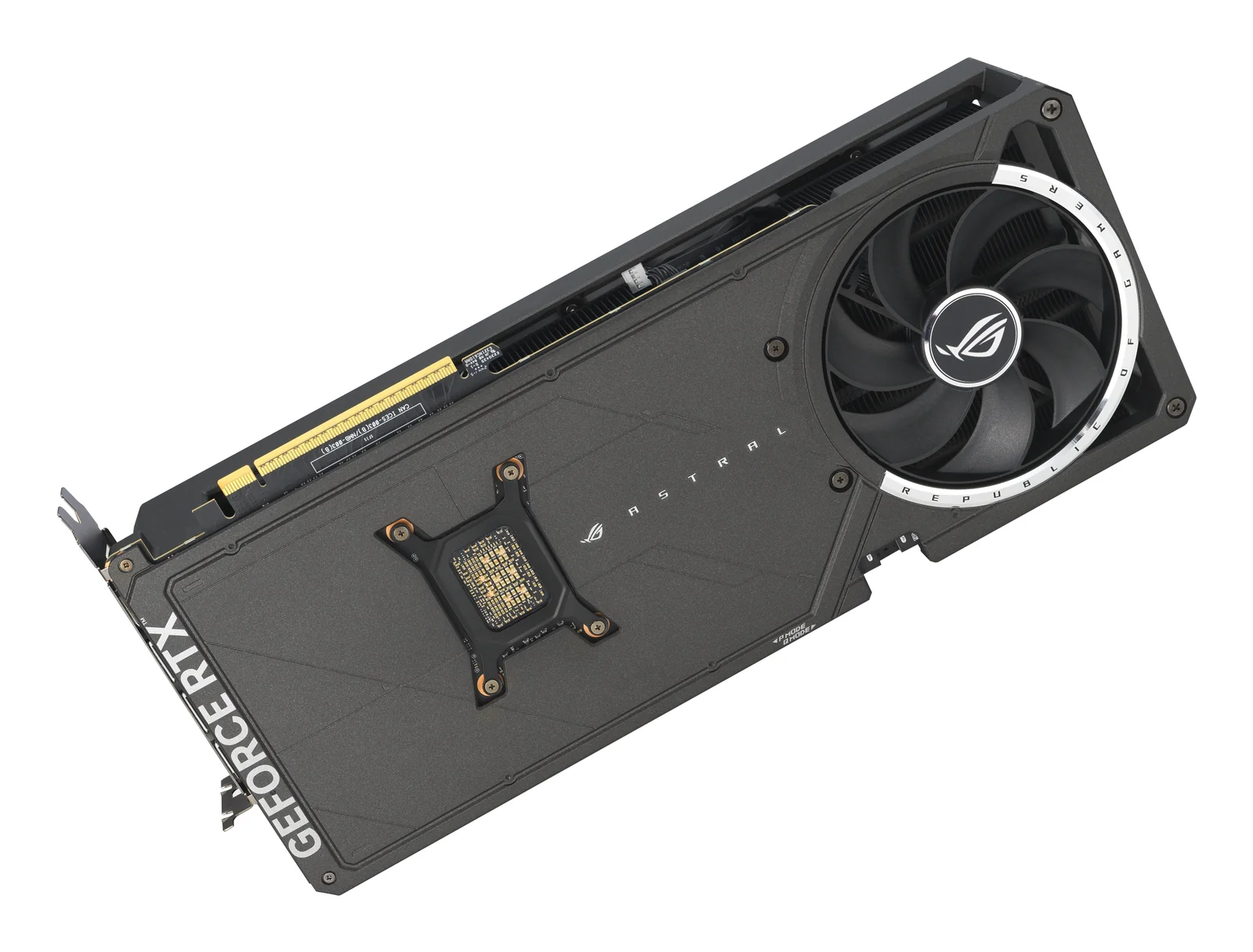

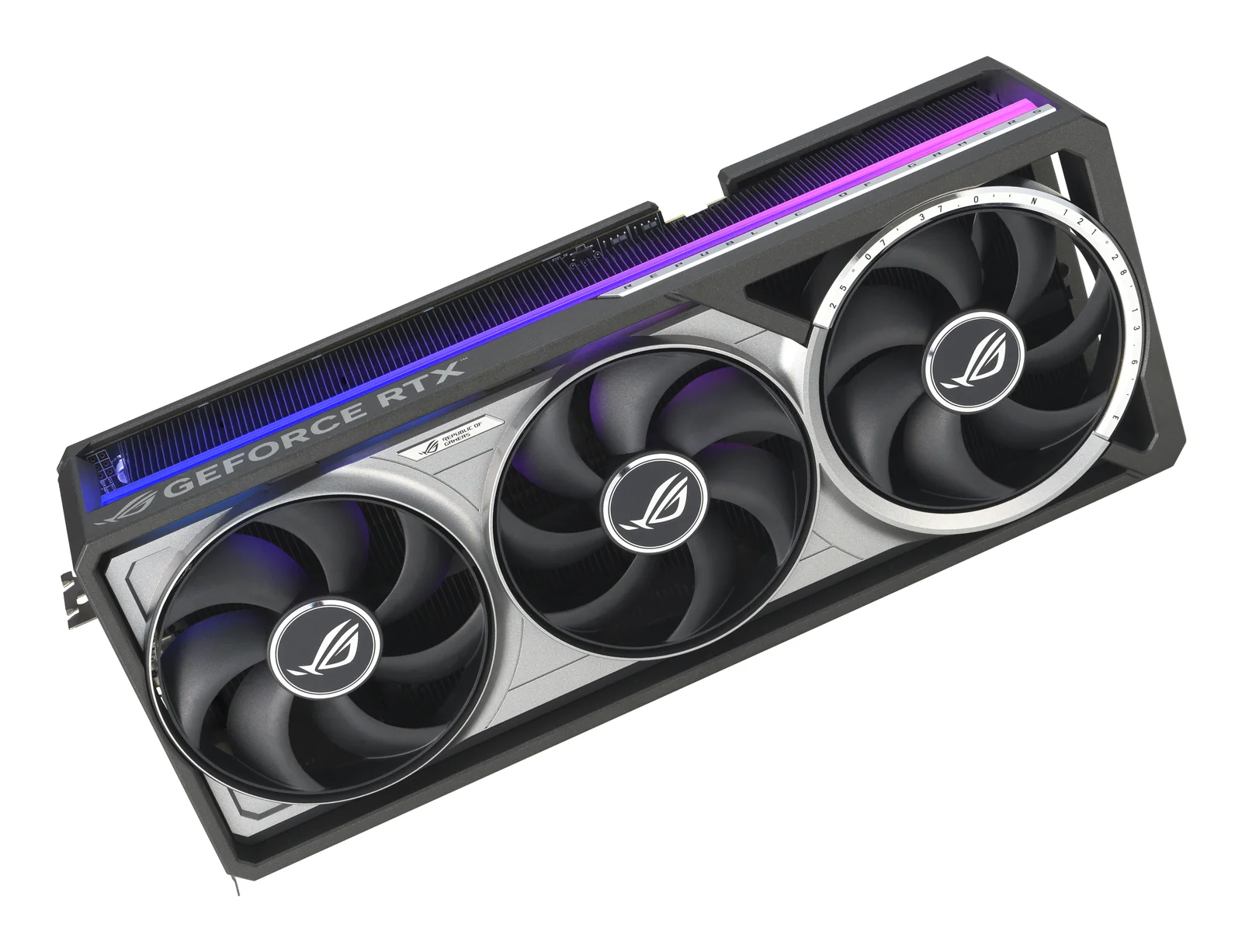

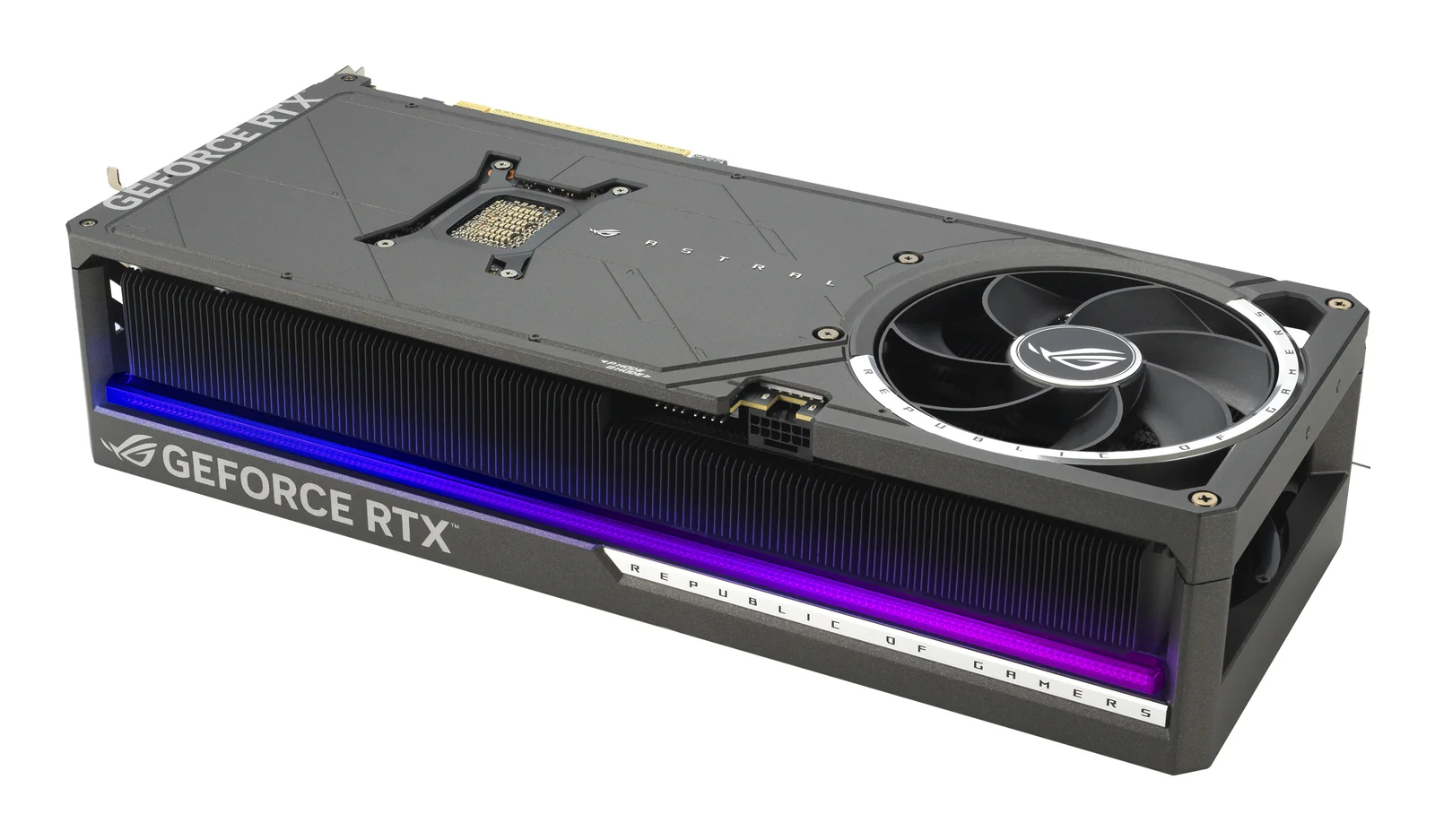

ASUS ROG Astral - -RTX5080-O16G-GAMING
Model ROG-ASTRAL-RTX5080-O16G-GAMING
Overview
The Final Frontier The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Specifications
Performance
- OpenGL version
- 4.6
- Virtual Reality (VR) ready
- Yes
- HDCP
- Yes
- HDCP version
- 2.3
- Dual Link DVI
- No
- NVIDIA G-SYNC
- Yes
- NPU performance up to
- 1801 TOPs
- Overclocked (OC) edition
- Yes
Design
- Cooling type
- Active
- Number of fans
- 4 fan(s)
- Form factor
- Full-Height/Full-Length (FH/FL)
- Bracket height
- Full-Height (FH)
- Number of slots
- 3.8
- Illumination
- Yes
- Illumination colour
- Multi
- SFF ready
- No
- Product colour
- Multicolour
Power
- Minimum system power supply
- 850 W
- Supplementary power connectors
- 1x 16-pin
Memory
- Discrete graphics card memory
- 16 GB
- Graphics card memory type
- GDDR7
- Memory bus
- 256 bit
- Data transfer rate
- 30 Gbit/s
Processor
- CUDA
- Yes
- CUDA cores
- 10752
- Graphics processor family
- NVIDIA
- Graphics processor
- GeForce RTX 5080
- Processor boost clock speed
- 2760 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Maximum displays per videocard
- 4
Packaging data
- Package width
- 420 mm
- Package depth
- 226 mm
- Package height
- 126 mm
- Package weight
- 4300 g
- Package type
- Box
Ports & interfaces
- Interface type
- PCI Express 5.0
- HDMI ports quantity
- 2
- HDMI version
- 2.1b
- DisplayPorts quantity
- 3
- DisplayPort version
- 2.1a
System requirements
- Windows operating systems supported
- Yes
Weight & dimensions
- Weight
- 2860 g
- Length
- 357.6 mm
- Depth
- 76 mm
- Height
- 149.3 mm
