ASUS

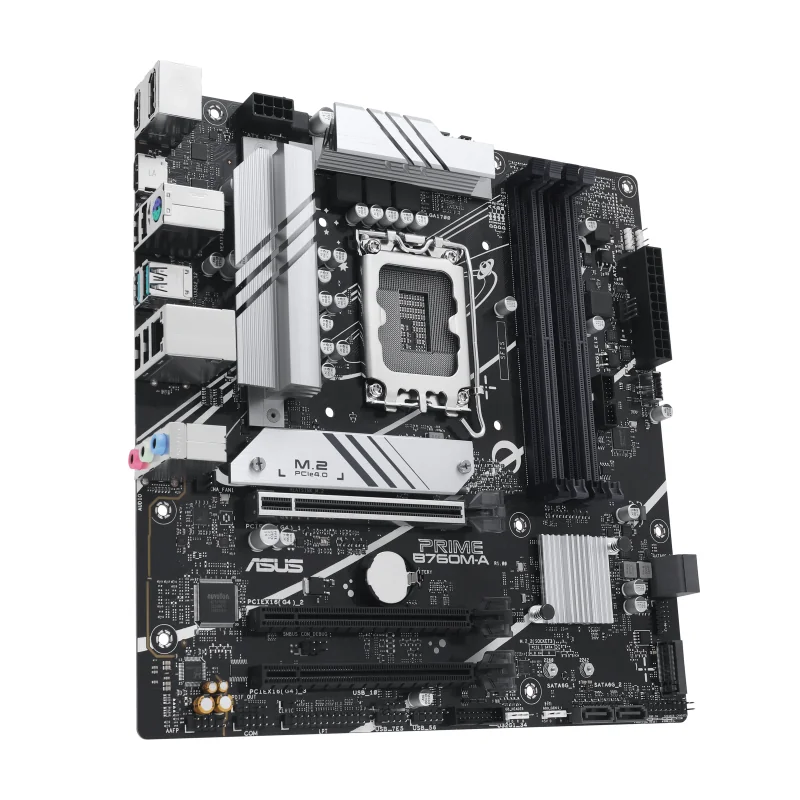

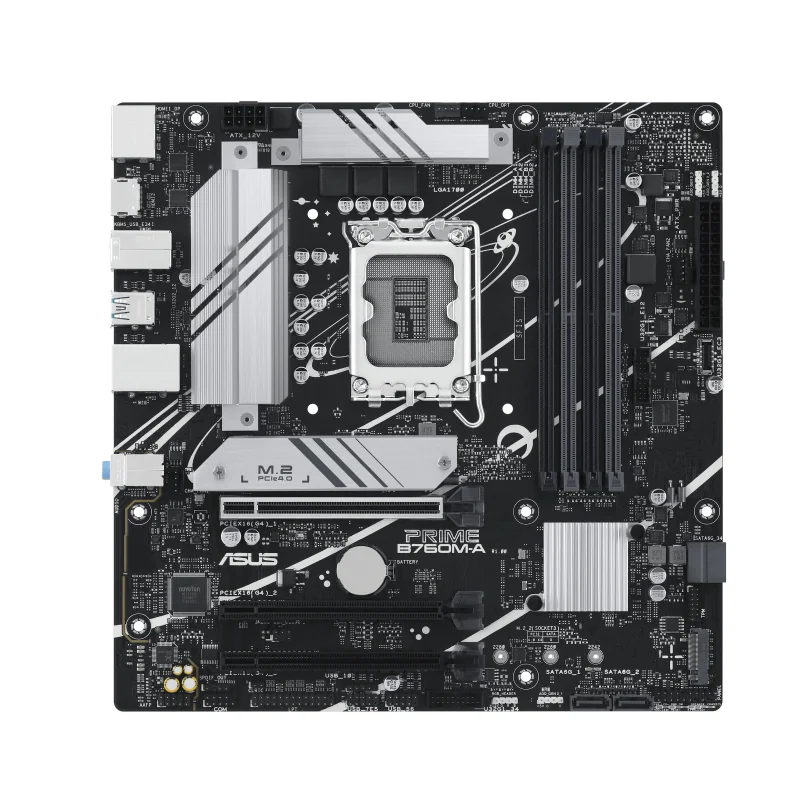

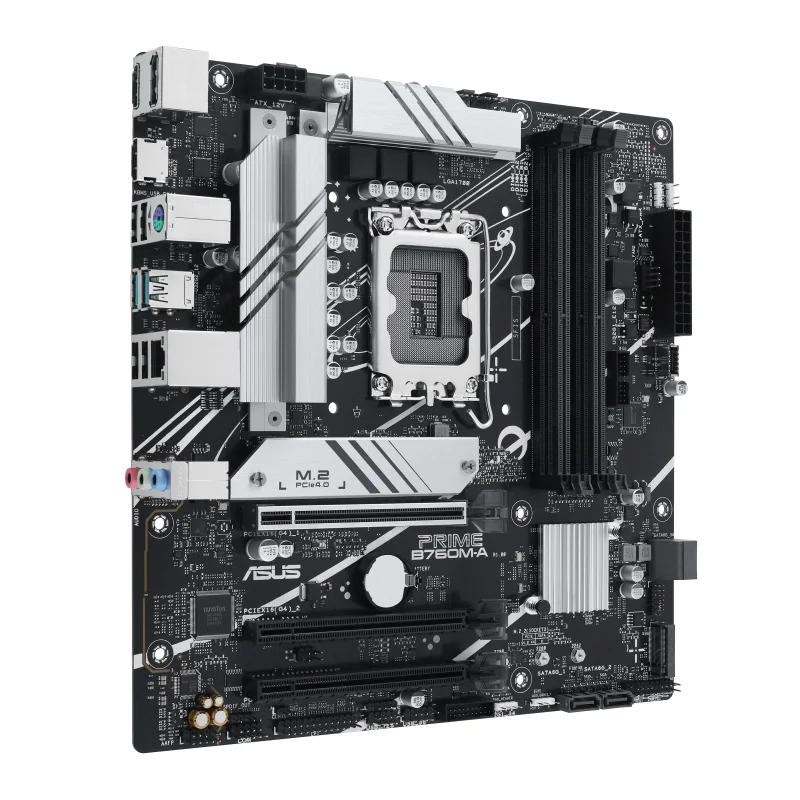

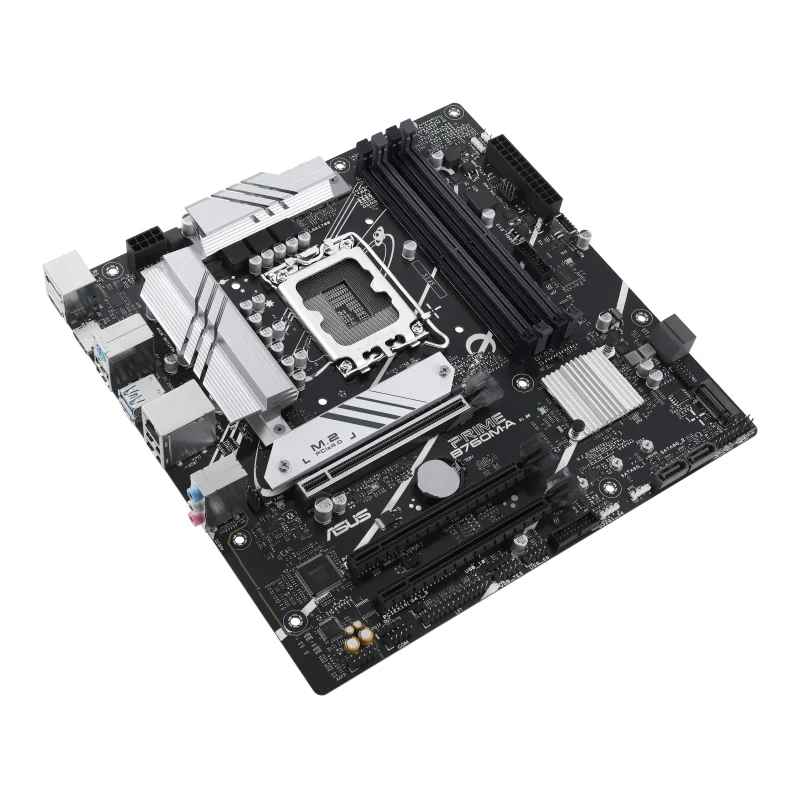

ASUS PRIME B760M-A-CSM

Model PRIME B760M-A-CSM

Overview

B760M-A-CSM ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. * Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information. ASUS Control Center Express ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Specifications

BIOS

BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS button
Yes

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
non-ECC
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max)
7200 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes

Features

Motherboard chipset
Intel B760
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
Micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11,Windows 10

Graphics

Parallel processing technology support
Not supported

Processor

Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
Supported processor sockets
LGA 1700

Internal I/O

USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots
3
Number of M.2 (M) slots
2

Packaging content

Cables included
SATA

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2,SATA III
Number of HDDs supported
4
Number of storage drives supported
6

Weight & dimensions

Width
244 mm
Depth
244 mm

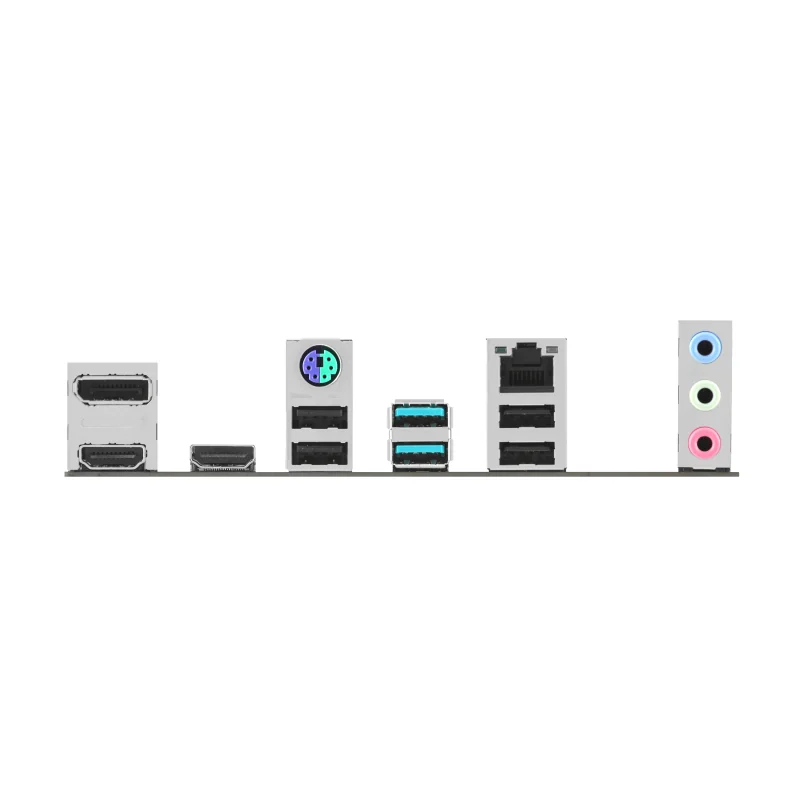

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
2
DisplayPorts quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
1
