ARCTIC

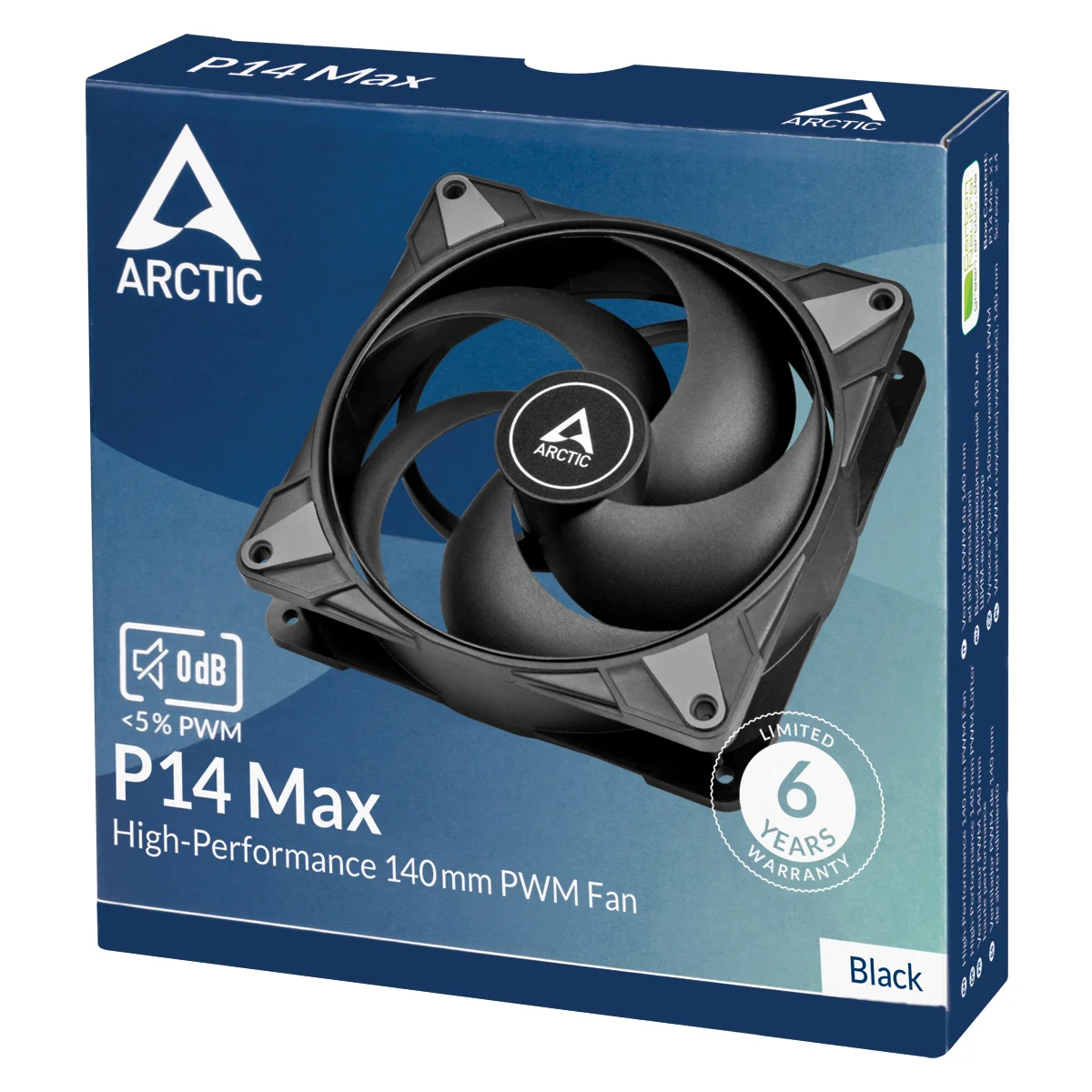

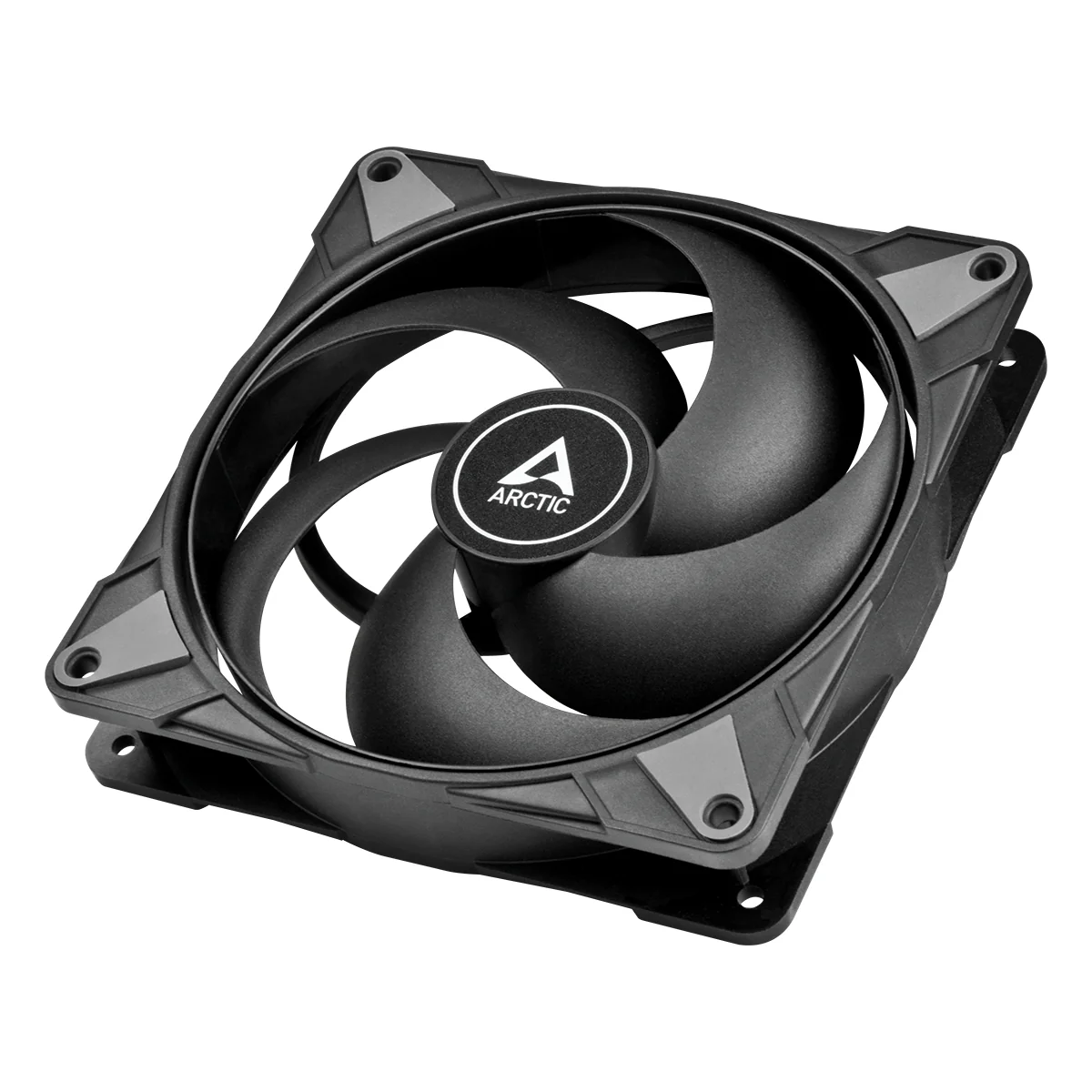

ARCTIC P14 Max
Model P14 Max
Overview
ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
Specifications
Performance
- Suitable location
- Computer case
- Type
- Fan
- Fan diameter
- 140 mm
- Supported processor sockets
- Not supported
- Compatible processor series
- Not supported
- Rotational speed (min)
- 400 RPM
- Rotational speed (max)
- 2800 RPM
- Maximum airflow
- 95 cfm
- Airflow
- 161.4 m³/h
- Maximum air pressure
- 4.18 mmH2O
- Pulse-width modulation (PWM) support
- Yes
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Operating temperature (T-T)
- 0 - 40 °C
Design
- Product colour
- Black
- Number of fans
- 1 fan(s)
- Number of fan blades
- 5
- Fan connector
- 4-pin
Power
- Voltage
- 12 V
- Starting voltage
- 3.9 V
- Rated current
- 0.35 A
Packaging content
- Package type
- Box
- Screws included
- Yes
- Number of screws
- 4
Weight & dimensions
- Width
- 140 mm
- Depth
- 140 mm
- Height
- 27 mm
- Weight
- 254 g
- Cable length
- 0.4 m
- Package width
- 167 mm
- Package depth
- 167 mm
- Package height
- 34 mm
- Package weight
- 303 g
