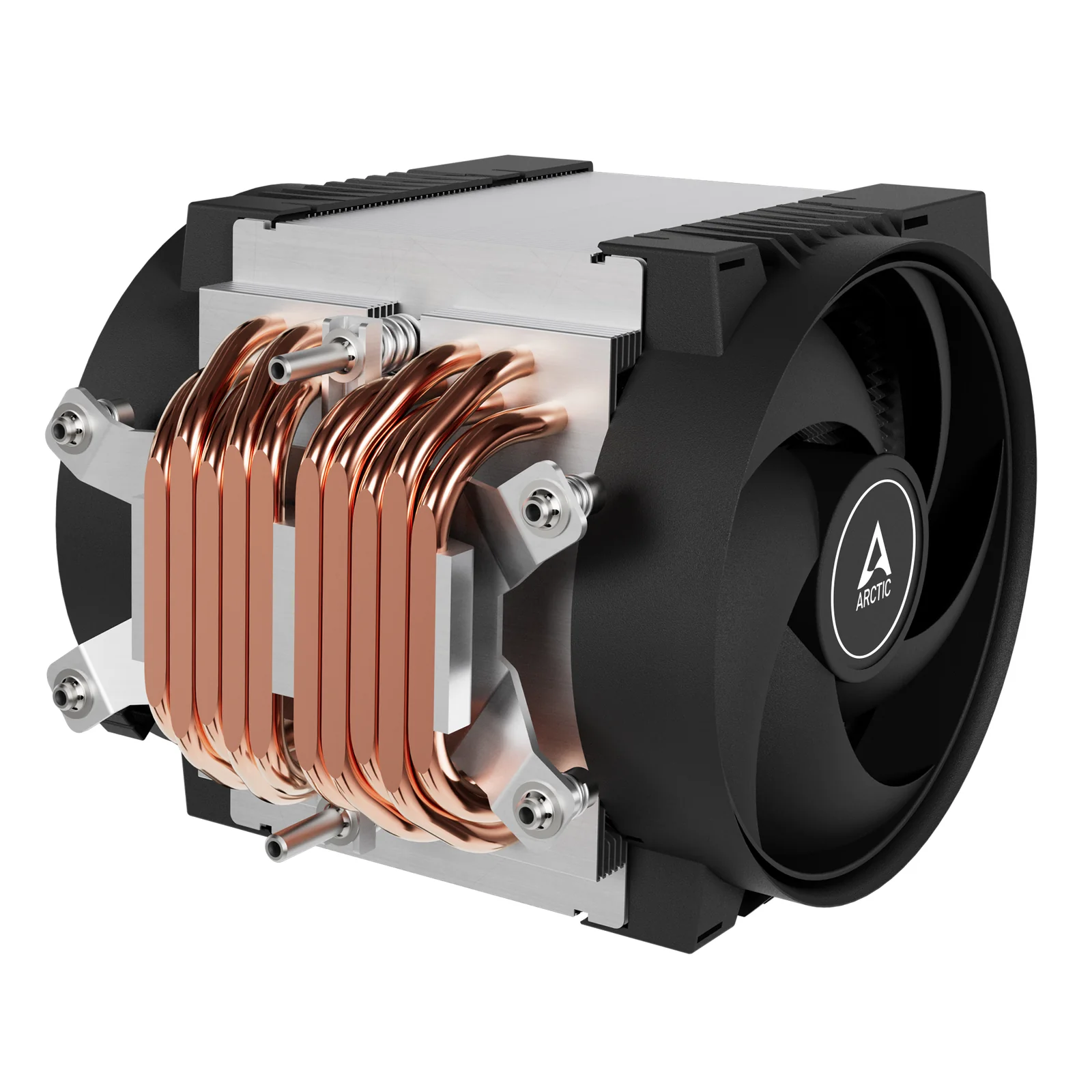

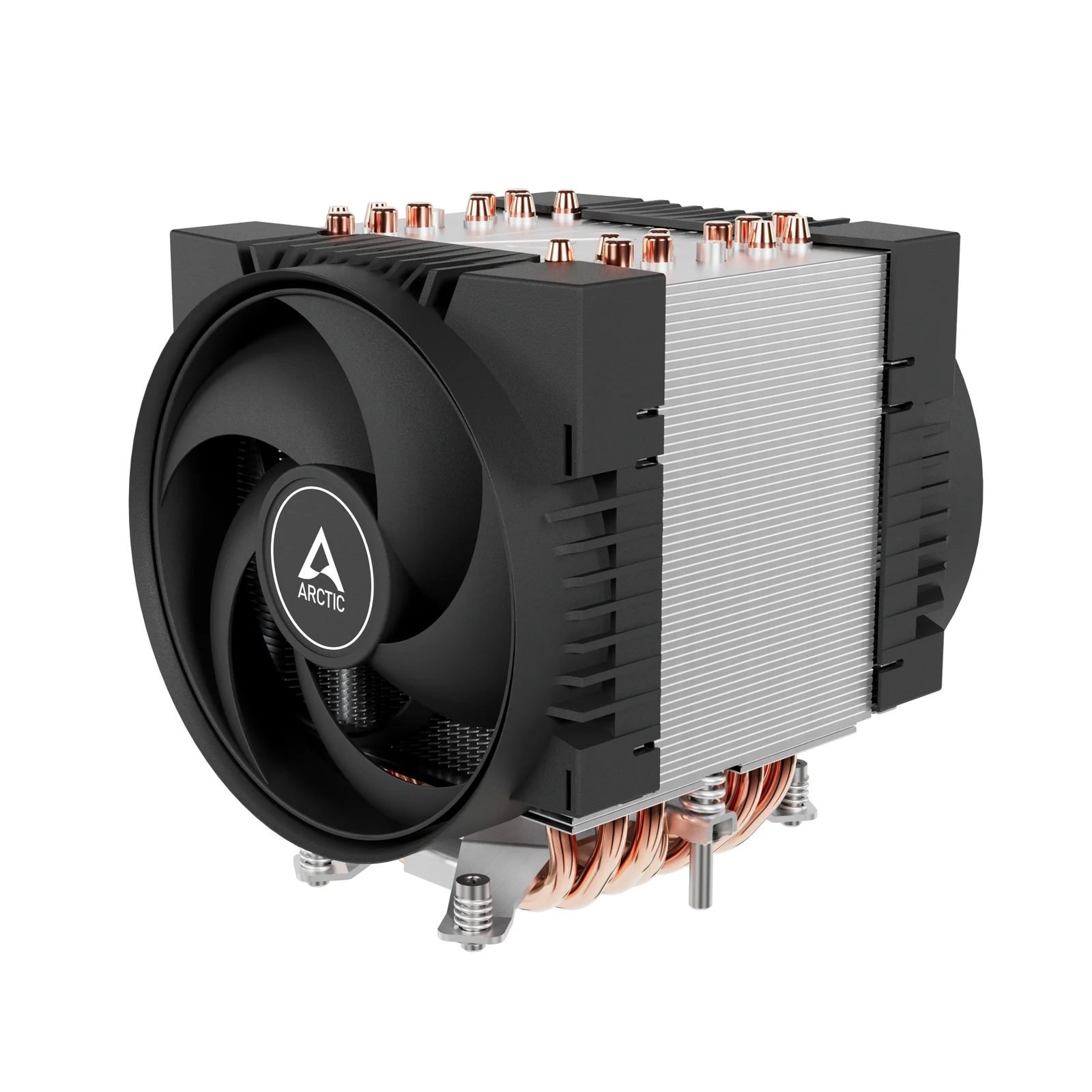

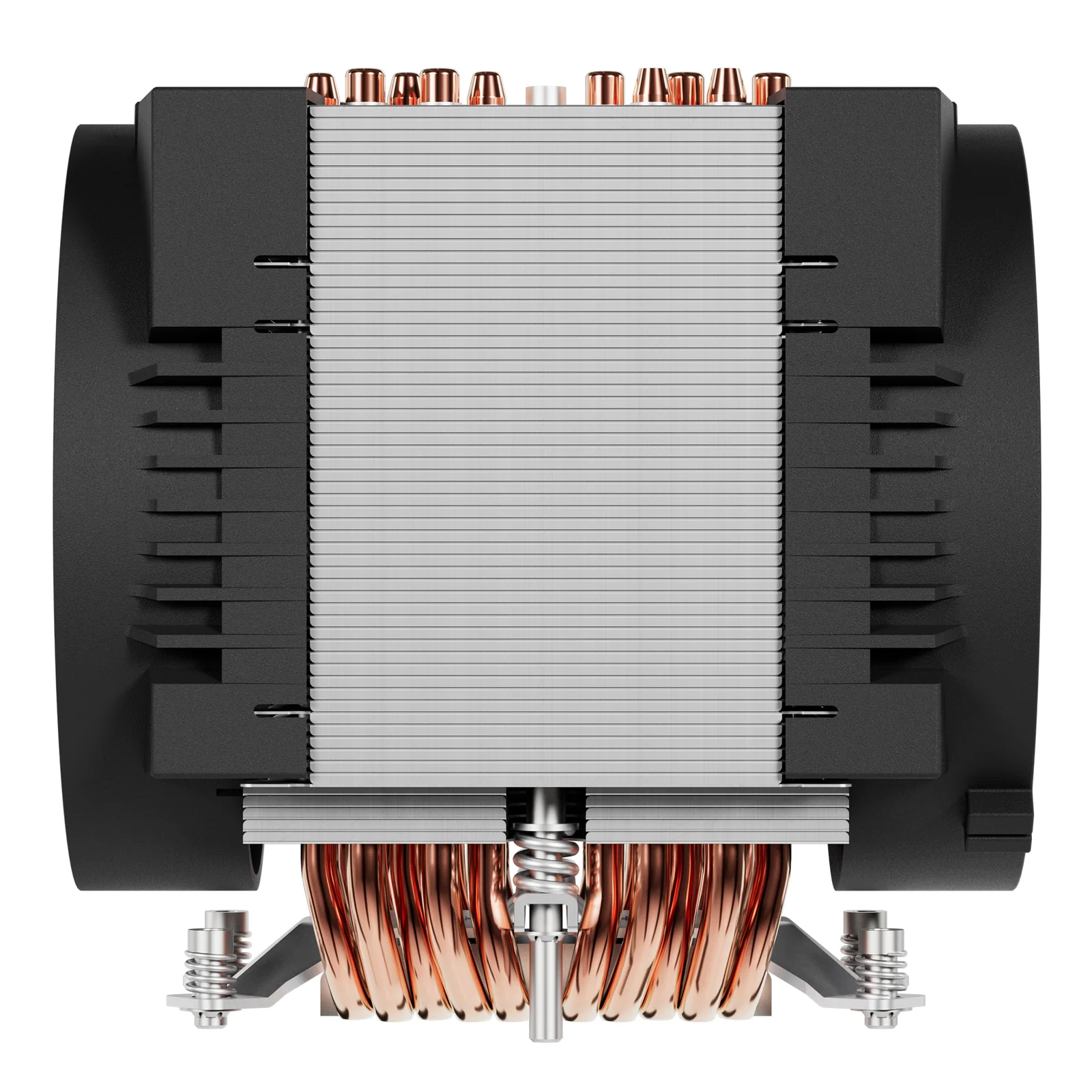

ARCTIC Freezer 4U-SP5
Model Freezer 4U-SP5 - 4U Server Cooler for AMD SP5
Overview
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Specifications
Performance
- Suitable location
- Processor
- Type
- Air cooler
- Fan diameter
- 120 mm
- Supported processor sockets
- Socket SP5
- Maximum airflow
- 81.04 cfm
- Airflow
- 137.69 m³/h
- Bearing type
- Dual ball bearing
- Fan noise level (max)
- 45.3 dB
- Fan speed (min)
- 300 RPM
- Fan speed (max)
- 3300 RPM
- Fan static pressure
- 4.35 mmH2O
- Operating temperature (T-T)
- 0 - 40 °C
Design
- Product colour
- Aluminium,Black
- Number of fans
- 2 fan(s)
- Number of fins
- 62
- Fins material
- Aluminium
- Number of heat pipes
- 10
- Fan connector
- 4-pin
- Rack capacity
- 4U
Power
- Starting voltage
- 3.1 V
- Thermal Design Power (TDP)
- 360 W
- Fan voltage
- 12 V
- Fan current
- 0.29 A
Packaging content
- Package type
- Box
Weight & dimensions
- Width
- 147 mm
- Depth
- 124 mm
- Height
- 145 mm
- Weight
- 1512 g
- Heat pipes diameter
- 6 mm
- Cable length
- 0.2 m
- Package width
- 160 mm
- Package depth
- 206 mm
- Package height
- 141 mm
- Package weight
- 1558 g
