Acer

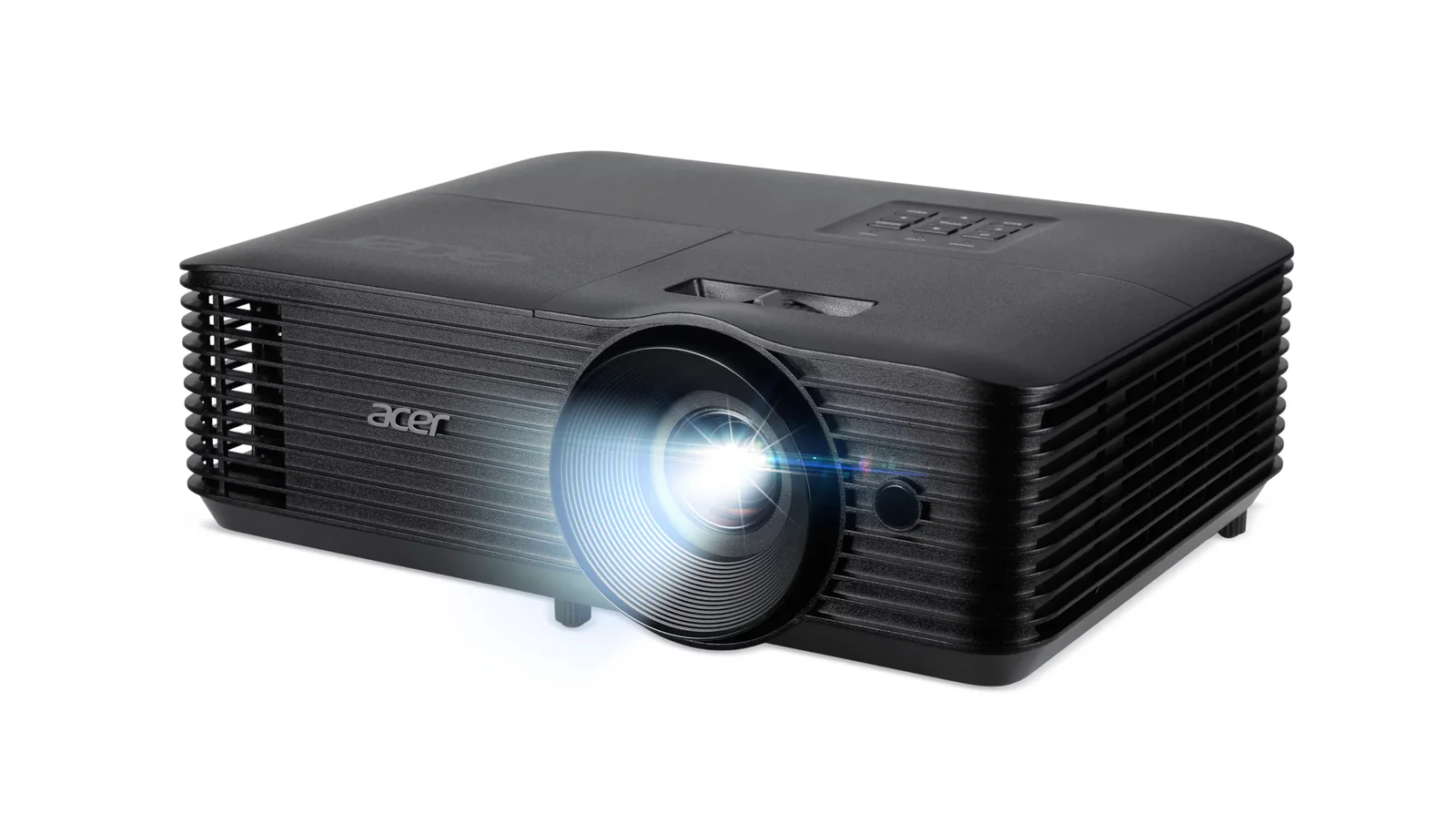

Acer X1328WHn WXGA Projector
Model X1328WHn
Overview
Acer X1328WHn. Projector brightness: 5000 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1200x800). Light source type: Lamp, Lamps quantity: 1 lamp(s). Focus: Manual, Focal length range: 21.85 - 24 mm, Aperture range (F-F): 2.41 - 2.53. Supported graphics resolutions: 1280 x 800 (WXGA), 1920 x 1200 (WUXGA). Serial interface type: RS-232
Specifications
Display
- Built-in display
- No
Design
- Market positioning
- Business
- Product colour
- Black
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Power
- Power source
- AC
- Power consumption (typical)
- 275 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 205 W
Video
- Supported graphics resolutions
- 1280 x 800 (WXGA),1920 x 1200 (WUXGA)
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- Projection modes
- Ceiling,Front,Rear
Projector
- Supported aspect ratios
- 4:3,16:10,16:9
- Screen size compatibility
- 27 - 300"
- Projection distance
- 1 - 10 m
- Projector brightness
- 5000 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- WXGA (1200x800)
- Contrast ratio (typical)
- 20000:1
- Native aspect ratio
- 16:10
- Number of colours
- 1.07 billion colours
- Projector brightness (economic mode)
- 4000 ANSI lumens
- Horizontal scan range
- 15 - 100 kHz
- Vertical scan range
- 24 - 120 Hz
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 3 W
- Number of built-in speakers
- 1
Lens system
- Focus
- Manual
- Focal length range
- 21.85 - 24 mm
- Aperture range (F-F)
- 2.41 - 2.53
- Zoom capability
- Yes
- Zoom type
- Manual
- Zoom ratio
- 1:1
- Throw ratio
- 1.54 - 1.72
Light source
- Light source type
- Lamp
- Lamps quantity
- 1 lamp(s)
Ports & interfaces
- Audio (L/R) in
- 1
- Audio (L/R) out
- 1
- Serial interface type
- RS-232
- VGA (D-Sub) ports quantity
- 1
- Composite video in
- 1
- Component video (YPbPr/YCbCr) in
- 1
Weight & dimensions
- Width
- 313 mm
- Depth
- 240 mm
- Height
- 113.7 mm
- Weight
- 2800 g
