Acer

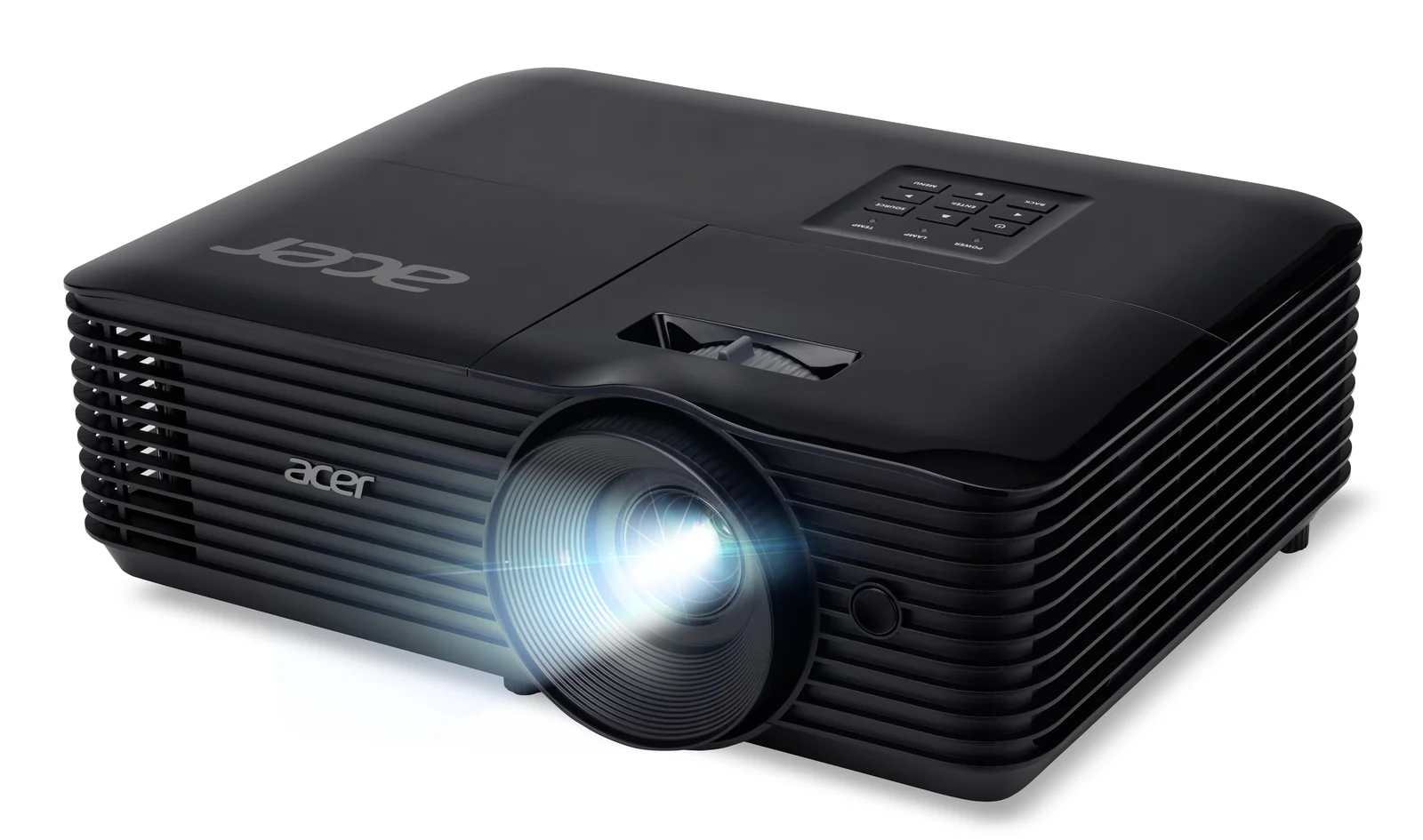

Acer BS-314 WXGA Projector
Model BS-314
Overview
Acer BS-314. Projector brightness: 5000 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1200x800). Light source type: Lamp, Lamps quantity: 1 lamp(s). Focus: Manual, Focal length range: 21.85 - 24.00 mm, Aperture range (F-F): 2.41 - 2.53. Serial interface type: RS-232, HDMI connector type: Full-size, HDMI version: 1.4a. Projection modes: Front, Rear
Specifications
Storage
- Card reader integrated
- No
Display
- Built-in display
- No
Design
- Product type
- Standard throw projector
- Product colour
- Black
Power
- Power source
- AC
- Power consumption (typical)
- 275 W
- Power consumption (standby)
- 0.5 W
- Power consumption (economy mode)
- 205 W
Video
- Full HD
- No
Network
- Smart TV
- No
- Ethernet LAN
- No
- Wi-Fi
- No
Features
- Projection modes
- Front,Rear
Projector
- Supported aspect ratios
- 4:3,16:10,16:9
- Projection distance (wide)
- 1.54 - 1.72 m
- Projector brightness
- 5000 ANSI lumens
- Projection technology
- DLP
- Projector native resolution
- WXGA (1200x800)
- Contrast ratio (typical)
- 20000:1
- Native aspect ratio
- 16:10
- Number of colours
- 1.07 billion colours
- Projector brightness (economic mode)
- 4000 ANSI lumens
- Projector brightness (portrait mode)
- 5000 ANSI lumens
- Keystone correction, vertical
- +/- 40 °
- Horizontal synchronization (min)
- 15 kHz
- Horizontal synchronization (max)
- 100 kHz
- Vertical synchronization (min)
- 0.024 kHz
- Vertical synchronization (max)
- 0.12 kHz
Multimedia
- Built-in speaker(s)
- Yes
Lens system
- Focus
- Manual
- Focal length range
- 21.85 - 24.00 mm
- Aperture range (F-F)
- 2.41 - 2.53
- Zoom capability
- Yes
- Zoom type
- Manual
- Zoom ratio
- 1.1:1
Light source
- Light source type
- Lamp
- Lamps quantity
- 1 lamp(s)

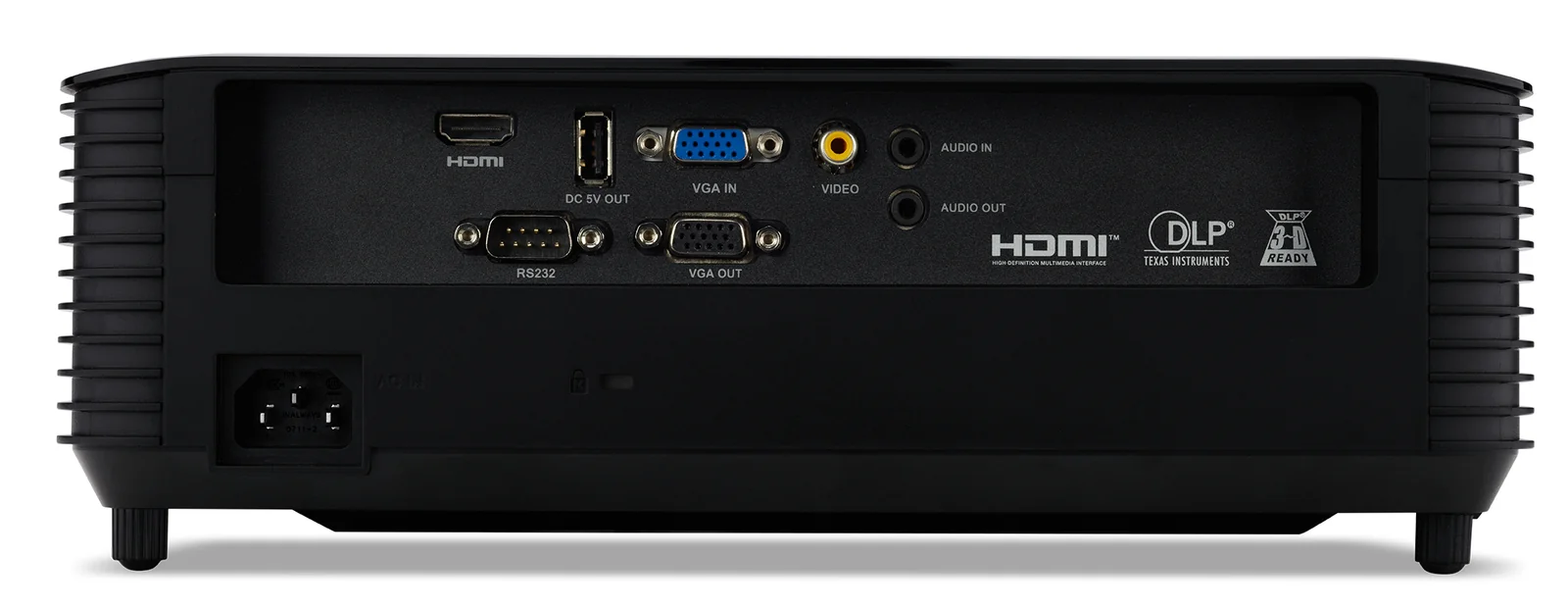

Ports & interfaces
- HDMI connector type
- Full-size
- HDMI version
- 1.4a
- USB 2.0 ports quantity
- 1
- Audio (L/R) in
- 1
- Serial interface type
- RS-232
- VGA (D-Sub) ports quantity
- 2
- HDMI ports quantity
- 1
- Component video (YPbPr/YCbCr) in
- 1
- DVI port
- No
- AC (power) in
- Yes
